Каталог запчастей
-
Doosan
-
SOLAR 220LC-3
- TIMING GEAR CASE
TIMING GEAR CASE экскаватора гусеничного модели III Doosan SOLAR 220LC-3
TIMING GEAR CASE экскаватора гусеничного модели III Doosan SOLAR 220LC-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:012
Наименование:TIMING GEAR CASE
Версия:2021-7076EF

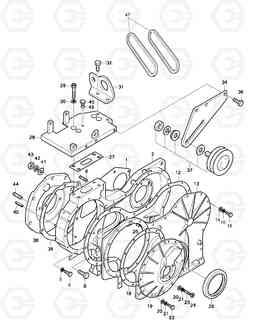

TIMING GEAR CASE SOLAR 220LC-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 65.01903-0021 | GASKET(TIMING GEAR CASE) | 1 | ||
| 10 | 06.06225-0809 | BOLT;STUD M10X35 | 6 | ||
| 11 | 06.06225-0810 | BOLT;STUD M10X40 | 2 | ||
| 12 | 65.01903-0113 | GASKET(TIMING GEAR CASE COVER) | 1 | ||
| 13 | 65.01305-5028B | TIMING GEAR CASE COVER A | 1 | ||
| 16 | 06.01923-2914 | BOLT ASS'Y M6X22 | 13 | ||
| 18 | 65.01903-0029 | GASKET(TIMING GEAR CASE COVER) | 1 | ||
| 19 | 65.01307-5009 | COVER;TIMING GEAR CASE | 1 | ||
| 2 | 65.01304-0010 | CASE;TIMING GEAR | 1 | ||
| 20 | 06.15010-2309 | Шайба плоская | 2 | ||
| 21 | 06.16731-2105 | Шайба пружинная A6 | 2 | ||
| 22 | 06.01283-6918 | BOLT;HEX. M6X35 | 9 |
06.01923-2918
|
|
| 22 | 06.01923-2918 | BOLT ASS'Y M6X35 | 9 | ||
| 23 | 06.06225-0502 | BOLT;STUD M6X16 | 2 | ||
| 24 | 06.11063-8212 | Гайка | 2 | ||
| 25 | 06.22022-0908 | PIN;DOWEL 6m6X12 | 2 | ||
| 25 | 06.22022-0907 | PIN;DOWEL 6M6X10 | 2 | ||
| 26 | 65.01510-0018 | SEAL;CRANK SHAFT(FRONT) | 1 |
65.01510-0026
|
|
| 26 | 65.01510-0026 | SEAL;CRANK SHAFT(FRONT) | 1 | ||
| 27 | 65.54903-0013 | Прокладка | 1 | ||
| 28 | 65.54302-5013 | BRACKET;AIRCON | 1 | ||
| 28 | 65.54302-5014 | BRACKET;AIRCON | 1 |
65.54302-5015A
|
|
| 28 | 65.54302-5015A | BRACKET;AIRCON | 1 | ||
| 29 | 06.02090-0511 | BOLT;SOCKET HEAD M10X22 | 4 | ||
| 30 | 06.16731-2108 | Шайба пружинная | 4 | ||
| 31 | 65.54306-0010 | Кронштейн | 1 | ||
| 32 | 06.01283-7213 | BOLT;HEX. M10X1.5X20 | 2 |
06.01913-3213
|
|
| 32 | 06.01913-3213 | BOLT ASS'Y M10X20 | 2 | ||
| 34 | 65.95840-0007 | BRACKET;IDLE PULLEY | 1 |
65.95840.0024
|
|
| 34 | 65.95840-0024 | BRACKET;IDLE PULLEY | 1 | ||
| 36 | 06.01283-7213 | BOLT;HEX. M10X1.5X20 | 3 |
06.01913-3213
|
|
| 36 | 06.01913-3213 | BOLT ASS'Y M10X20 | 3 | ||
| 37 | 65.95800-6014 | IDLE PULLEY ASS'Y | 1 | ||
| 38 | 65.11401-5007 | MOUNTING FLANGE ASS'Y | 1 | ||
| 39 | 65.11902-0006 | Прокладка | 1 | ||
| 39 | 65.11902-0018A | GASKET;MOUNTING FLANGE | 1 | ||
| 40 | 06.22220-1110 | PIN;SPRING | 1 | ||
| 41 | 06.15010-2312 | Шайба плоская | 7 | ||
| 42 | 06.16731-2108 | Шайба пружинная | 7 | ||
| 43 | 06.11063-8215 | NUT;HEX. M10 | 7 | ||
| 44 | 65.90201-0059 | BOLT;STUD M10X35 | 4 | ||
| 45 | 65.90310-0033 | SCREW;PLUG | 1 | ||
| 46 | 06.56180-0714 | RING;SEAL | 1 | ||
| 47 | 65.96801-0059 | Ремень клиновой 2X13.0X1600 | 2 | ||
| 5 | 06.16731-2107 | Шайба пружинная | 6 | ||
| 5 | 06.16731-2107 | Шайба пружинная | 1 | ||
| 6 | 06.01283-7113 | BOLT;HEX. M8X20 | 5 |
06.01913-3113
|
|
| 6 | 06.01913-3113 | BOLT ASS'Y M8X20 | 5 | ||
| 6-1 | 06.06225-0704 | BOLT;STUD M8X20 | 1 | ||
| 6-2 | 06.11063-8214 | Гайка М8 | 1 | ||
| 7 | 06.16731-2108 | Шайба пружинная | 1 | ||
| 8 | 06.01733-4311 | BOLT;HEX. M12X1.5X30 | 4 |
06.01943-3317
|
|
| 8 | 06.01943-3317 | BOLT ASS'Y M12X1.5X30 | 4 | ||
| 9 | 65.90201-0048 | Болт-шпилька | 1 |
