Каталог запчастей
-
Doosan
-
SOLAR 70-III
- AIRCONDITIONER
AIRCONDITIONER экскаватора гусеничного модели III Doosan SOLAR 70-III
AIRCONDITIONER экскаватора гусеничного модели III Doosan SOLAR 70-III со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1510
Наименование:AIRCONDITIONER
Версия:2021-7114EF

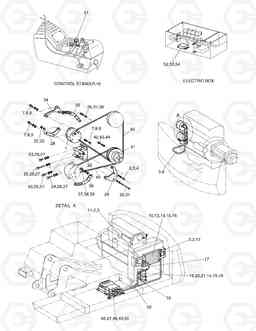

AIRCONDITIONER SOLAR 70-III
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 2920-1064 | COOLER & HEATER ASS'Y | - | ||
| 1 | 2208-6010A | COMPRESSOR V-5, B-TYPE | 1 | ||
| 1 | 2208-6010B | COMPRESSOR V-5, B-TYPE | 1 | ||
| 10 | 2520-6003 | CONDENSER ASS'Y | 1 |
2520-6003A
|
|
| 10 | 2520-6003A | CONDENSER ASS'Y | 1 | ||
| 11 | 2195-3938A | BRACKET;CONDENSER(L.H.) | 1 | ||
| 12 | 2195-3937 | BRACKET;CONDENSER(R.H.) | 1 | ||
| 13 | S0553553 | BOLT M6X1.0X45 | 4 | ||
| 14 | S5102303 | Шайба пружинная M6 | 6 | ||
| 15 | S5010313 | WASHER;PLAIN M6 | 6 | ||
| 16 | S4012333 | NUT M6X1.0 | 6 | ||
| 17 | 2185-1369D14 | HOSE;LIQUID(1) L450 | 1 | ||
| 18 | 2185-1369D5 | HOSE;LIQUID(1) L700 | 1 | ||
| 19 | 2204-6032 | RECEIVER DRIER | 1 | ||
| 2 | S0509053 | BOLT M8X1.25X25 | 7 | ||
| 20 | 2514-6001 | HOLDER;RECEIVER DRIER | 1 | ||
| 21 | S0504853 | BOLT M6X1.0X20 | 2 | ||
| 22 | 2195-3829 | BRACKET;COMPRESSOR | 1 | ||
| 23 | S0758253 | BOLT M10X1.25X35 | 1 | ||
| 24 | S0758853 | BOLT M10X1.5X65 | 1 | ||
| 25 | S0759753 | BOLT M10X1.25X110 | 1 | ||
| 26 | S5102603 | Шайба пружинная M10 | 4 | ||
| 27 | S5010613 | WASHER;PLAIN M10 | 4 | ||
| 28 | 2195-3909 | HOLDER;COMPRESSOR(F) | 1 | ||
| 28 | 2195-3909A | HOLDER;COMPRESSOR(F) | 1 | ||
| 29 | 2195-3911 | HOLDER;COMPRESSOR(R) | 1 | ||
| 29 | 2195-3911A | HOLDER;COMPRESSOR(R) | 1 | ||
| 3 | S5102503 | Шайба пружинная M8 | 7 | ||
| 30 | 2120-1036D13 | BOLT M10X1.5X165 | 1 | ||
| 31 | S5102603 | Шайба пружинная M10 | 1 | ||
| 32 | S5010613 | WASHER;PLAIN M10 | 1 | ||
| 33 | S4012633 | NUT M10X1.5 | 1 | ||
| 34 | 2195-3912A | HOLDER;AIRCON | 1 | ||
| 35 | 2195-3910 | SUPPORT;AIRCON | 1 | ||
| 36 | S0512053 | BOLT M10X1.5X25 | 1 | ||
| 37 | S5102603 | Шайба пружинная M10 | 1 | ||
| 38 | S5010613 | WASHER;PLAIN M10 | 1 | ||
| 39 | 2195-3934 | SUPPORT;ALTERNATOR | 1 | ||
| 4 | S5010513 | WASHER;PLAIN M8 | 3 | ||
| 40 | 2106-1016D8 | Ремень клиновой ALT B-925 | 1 |
2106-1021D8
|
|
| 40 | 2106-1021D8 | Ремень клиновой ALT B-925 | 1 | ||
| 41 | 2107-1020 | PULLEY;ADAPTER | 1 | ||
| 42 | S0556253 | BOLT M8X1.25X45 | 4 | ||
| 43 | S5102503 | Шайба пружинная M8 | 4 | ||
| 44 | S5010513 | WASHER;PLAIN M8 | 4 | ||
| 45 | 2106-1016D4 | Ремень клиновой AIR-CON B-1300 | 1 |
2106-1021D4
|
|
| 45 | 2106-1021D4 | Ремень клиновой AIR-CON B-1300 | 1 | ||
| 46 | 2920-9031B | UNIT;AIR HANDLING | 1 | ||
| 46A | 2545-6020 | RESISTOR ASS'Y | 1 | ||
| 46B | 2538-6012 | BLOWER MOTOR | 1 | ||
| 46C | 2547-6030 | THERMISTOR | 1 | ||
| 46D | 2920-6121 | EVAPORATOR CORE | 1 | ||
| 46E | 2920-6120 | HEATER CORE ASS'Y | 1 | ||
| 47 | 2191-1374D12 | Пластина | 2 | ||
| 48 | S0509053 | BOLT M8X1.25X25 | 4 | ||
| 49 | S5102503 | Шайба пружинная M8 | 4 | ||
| 5 | 2185-1370A | HOSE;COMPRESSOR | 1 | ||
| 50 | 2114-1058D29 | Шайба | 4 | ||
| 51 | 2549-1132D2 | SWITCH;AIRCON | 1 | ||
| 52 | 2543-9027 | CONTROLLER;AIRCON | 1 | ||
| 53 | S3450563 | SCREW M4X0.7X8 | 2 | ||
| 54 | S5100103 | Шайба пружинная M4 | 2 | ||
| 59 | 2124-1084D3 | CLIP;BAND | 15 | ||
| 6 | 2180-1219 | WASHER;SEAL | 2 | ||
| 60 | S0758353 | BOLT M10X1.25X40 | 1 | ||
| 7 | S2212361 | BOLT;SOCKET M10X1.5X35 | 5 | ||
| 8 | S5110601 | Шайба пружинная M10 | 5 | ||
| 9 | S5020603 | WASHER;PLAIN M10 | 5 |
