Крышка двигателя колесного погрузчика модели V Doosan MEGA160-E
Крышка двигателя колесного погрузчика модели V Doosan MEGA160-E со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1330
Наименование:ENGINE COVER
Версия:021-00037EF

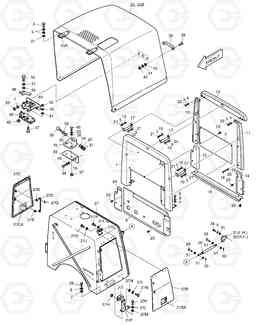

ENGINE COVER MEGA160-E
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 464-00072 | COVER ASS'Y | - | ||
| 1 | 464-00073B | COVER;BAFFLE | 1 |
464-00073C
|
|
| 1 | 464-00073C | COVER;BAFFLE | 1 | ||
| 10 | S0511853 | BOLT M10X1.5X20 | 6 | ||
| 10 | S0511853 | Болт | 6 | ||
| 11 | 464-00015A | COVER;BAFFLE | 1 |
464-00015B
|
|
| 11 | 464-00015B | COVER;BAFFLE | 1 | ||
| 12 | 464-00071A | COVER;BAFFLE | 1 | ||
| 13 | 464-00016A | COVER;BAFFLE | 1 |
464-00016B
|
|
| 13 | 464-00016B | COVER;BAFFLE | 1 | ||
| 14 | 621-01998A | Крышка | 1 | ||
| 15 | 621-00887A | Крышка | 1 | ||
| 16 | 621-01999 | Пластина | 1 | ||
| 17 | 195-01892A | Кронштейн | 3 | ||
| 18 | S0556553 | BOLT M8X1.25X60 | 4 | ||
| 19 | S5010513 | WASHER;PLAIN M8 | 8 | ||
| 2 | 621-02005B | Крышка | 1 | ||
| 20 | S5102503 | Шайба пружинная M8 | 9 | ||
| 21 | 2114-1058D45 | Шайба | 10 | ||
| 22 | S4012633 | NUT M10X1.5 | 6 | ||
| 23 | 2120-2196D1 | BOLT;SET M10X1.5X20 | 17 | ||
| 24 | 621-02158 | COVER;BAFFLE | 1 | ||
| 25 | 621-02049B | BONNET ASS'Y | 1 |
621-02049C
|
|
| 25 | 621-02049C | BONNET ASS'Y | 1 | ||
| 25A | 171-00001A | HINGE | 2 | ||
| 25B | 1.162-00001 | RUBBER;CUSHION | 1 | ||
| 26 | 440-00323 | GAS SPRING P=70K | 2 | ||
| 27 | 4627-1924H | E/G COVER ASS'Y | 1 | ||
| 27B | 4627-1668A | COVER;SIDE(L.H) | 1 | ||
| 27BA | 4125-9048 | LOCK | 1 | ||
| 27C | 4627-1669A | COVER;SIDE(R.H) | 1 | ||
| 27CA | 4125-9048 | LOCK | 1 | ||
| 27D | 4145-1300C | ROD;STAY | 2 | ||
| 27E | 4131-9002 | ROD;HOLDER | 2 | ||
| 27F | 4197-2681A | BRACKET;LATCH | 2 | ||
| 27G | 4171-1120 | HINGE | 4 | ||
| 27H | S4012633 | NUT M10X1.5 | 4 | ||
| 27I | 4197-2682A | BRACKET;LATCH | 2 | ||
| 27J | S5102503 | Шайба пружинная M8 | 8 | ||
| 27K | S5010513 | WASHER;PLAIN M8 | 2 | ||
| 27L | S5102603 | Шайба пружинная M10 | 16 | ||
| 27M | S5010613 | WASHER;PLAIN M10 | 10 | ||
| 27N | S0512153 | BOLT M10X1.5X28 | 4 | ||
| 27O | S0508453 | BOLT M8X1.25X12 | 8 | ||
| 27P | S0512053 | BOLT M10X1.5X25 | 4 | ||
| 27Q | S5735241 | PIN;SPLIT | 2 | ||
| 27R | S0511453 | BOLT M10X1.5X12 | 8 | ||
| 28 | S0515353 | BOLT M12X1.75X35 | 4 | ||
| 29 | S5760231 | Палец | 4 | ||
| 3 | S0512053 | BOLT M10X1.5X25 | 8 | ||
| 30 | S5735241 | PIN;SPLIT | 4 | ||
| 31 | 4197-2442 | BRACKET;L.H | 1 | ||
| 32 | 4197-2443 | BRACKET;R.H | 1 | ||
| 33 | 195-01079 | Кронштейн | 1 | ||
| 34 | S0555953 | BOLT M8X1.25X30 | 1 | ||
| 35 | 2114-1058D29 | Шайба | 3 | ||
| 36 | 2142-1094 | STRIKER | 1 | ||
| 37 | S4012533 | NUT M8X1.25 | 4 | ||
| 38 | 2172-9025 | HANDLE | 1 | ||
| 39 | S3450991 | SCREW M6X1.0X25 | 2 | ||
| 4 | S5010613 | WASHER;PLAIN M10 | 10 | ||
| 40 | S5102303 | Шайба пружинная M6 | 4 | ||
| 41 | S5010313 | WASHER;PLAIN M6 | 5 | ||
| 42 | S4012333 | NUT M6X1.0 | 5 | ||
| 43 | 2143-1003 | LATCH | 1 | ||
| 44 | 195-00283 | BRACKET;LATCH | 1 | ||
| 45 | 195-01078 | Кронштейн | 1 | ||
| 46 | S0509053 | BOLT M8X1.25X25 | 2 | ||
| 47 | S0505353 | BOLT M6X1.0X35 | 2 | ||
| 48 | 195-00280 | Кронштейн | 1 | ||
| 49 | 2114-1058D69 | Шайба | 1 | ||
| 5 | S5102603 | Шайба пружинная M10 | 22 | ||
| 50 | S0553853 | BOLT M6X1.0X60 | 1 | ||
| 51 | 2114-1058D86 | Шайба | 8 | ||
| 6 | S0515153 | BOLT M12X1.75X28 | 4 | ||
| 7 | S5010713 | WASHER;PLAIN M12 | 8 | ||
| 8 | S5102703 | Шайба пружинная M12 | 8 | ||
| 9 | 621-01987C | Крышка | 1 |
