BOTTOM PLATE & COVER экскаватора колесного Hyundai R55W-3
BOTTOM PLATE & COVER экскаватора колесного Hyundai R55W-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:5081
Наименование:BOTTOM PLATE & COVER
Версия:2003. 5.31 REV.6

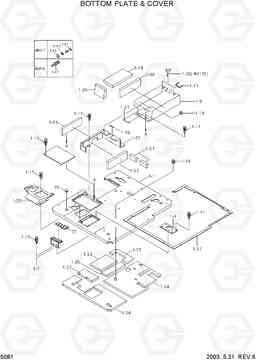

BOTTOM PLATE & COVER R55W-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | @ | BOTTOM PLATE SUB ASSY | 1 | ||
| 1-1 | 71M6-24010 | BOTTOM PLATE WA | 1 | ||
| 1-1 | 71M6-24320 | BOTTOM PLATE WA | 1 |
DEFROSTER
|
|
| 1-1 | 71M6-24610 | BOTTOM PLATE WA | 1 | ||
| 1-11 | S017-100202 | Болт с шестигранной головкой (под шестигранник) | 13 | ||
| 1-11 | S037-102026 | Болт | 13 | ||
| 1-13 | S403-101002 | Плоская шайба | 13 | ||
| 1-15 | S411-100002 | Шайба пружинная | 10 | ||
| 1-17 | S791-020011 | GROMMET-PLATE | 1 | ||
| 1-18 | S791-040005 | GROMMET-PLATE | 1 | ||
| 1-19 | S201-051002 | Гайка | 2 | ||
| 1-20 | S091-080202 | BOLT-WING | 2 | ||
| 1-21 | 71M5-00060 | HANDLE | 1 | ||
| 1-22 | 71M5-21090 | COVER-S/MOTOR | 1 | ||
| 1-23 | 71M6-24150 | FOOT BOARD WA | 1 | ||
| 1-24 | 71M6-24330 | SPONGE | 1 | ||
| 1-25 | 71M6-54071 | SPONGE | 1 | ||
| 1-26 | 71M6-60150 | SPONGE | 1 | ||
| 1-27 | 71M5-22450 | SPONGE | 1 | ||
| 1-28 | 71M5-30060 | SPONGE | 1 | ||
| 1-29 | 71M5-30070 | SPONGE | 1 | ||
| 1-29 | 71M6-54190 | SPONGE | 1 | ||
| 1-30 | 71M6-54120 | SPONGE | 1 | ||
| 1-31 | 71M5-30090 | SPONGE | 2 | ||
| 1-32 | 71M5-30101 | SPONGE | 1 | ||
| 1-33 | 71M5-30130 | SPONGE | 1 | ||
| 1-34 | 71M6-24340 | SPONGE | 1 | ||
| 1-37 | 71M6-60410 | SPONGE KIT | 1 | ||
| 1-6 | 71M5-21060 | SUPPORT-S/COLUMN | 1 | ||
| 1-7 | 71E3-0096 | FOOT REST WA | 1 | ||
| 1-8 | 71M6-24160 | COVER-T/JOINT | 1 | ||
| 1-9 | 71M5-21082 | COVER-S/MOTOR | 1 | ||
| 1-9 | 71M5-21150 | COVER-S/MOTOR | 1 | ||
| 27 | E111-5008 | RUBBER-FOOT REST,LH | 1 | ||
| 75 | S661-500400 | Крышка резиновая | 1 |
