Каталог запчастей
-
Volvo Construction Equipment
-
4200B 4200B

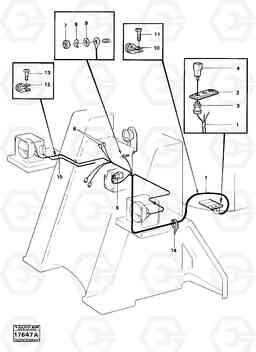

- Electrical system, front.
Electrical system, front. погрузчика колесного Volvo Construction Equipment 4200B 4200B
Electrical system, front. погрузчика колесного Volvo Construction Equipment 4200B 4200B со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:16142
Наименование:Electrical system, front.
Версия:PROD NO 33701
Electrical system, front. 4200B 4200B
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | VOE 4939884 | Cable harness | 1 | ||
| 10 | VOE 943717 | Зажим | 1 | ||
| 10 | VOE 943717 | Зажим | 1 | ||
| 11 | VOE 13955295 | Болт | 1 | ||
| 11 | VOE 13955295 | Болт | 1 | ||
| 12 | VOE 952629 | Зажим | 1 | ||
| 12 | VOE 952629 | Зажим | 1 | ||
| 13 | VOE 956094 | X Rec Screw | 1 | ||
| 13 | VOE 956094 | X Rec Screw | 1 | ||
| 14 | VOE 4881440 | Strip Clamp | 1 | ||
| 14 | VOE 4881440 | Strip Clamp | 1 | ||
| 15 | VOE 4932462 | Cable harness | 1 | ||
| 3 | VOE 881192 | Sealing Sleeve | 1 | ||
| 3 | VOE 881192 | Sealing Sleeve | 1 | ||
| 4 | VOE 948295 | Pin Housing | 1 | ||
| 4 | VOE 948295 | Изолятор | 1 | ||
| 5 | VOE 6646637 | Switch Housing | 1 | ||
| 5 | VOE 6646637 | Switch Housing | 1 | ||
| 6 | VOE 949005 | Rcpt Housing | 1 | ||
| 6 | VOE 949005 | Rcpt Housing | 1 | ||
| 7 | VOE 13955781 | Гайка | 1 | ||
| 7 | VOE 13955781 | Гайка | 1 | ||
| 8 | VOE 13941906 | Шайба | 1 | ||
| 8 | VOE 13941906 | Шайба | 1 | ||
| 9 | VOE 955948 | Toothed Washer | 1 | ||
| 9 | VOE 955948 | Toothed Washer | 1 |
