A25 VOLVO BM VOLVO BM A25
- Operator seat with fitting parts
Operator seat with fitting parts самосвала cочлененного Volvo Construction Equipment A25 VOLVO BM VOLVO BM A25
Operator seat with fitting parts самосвала cочлененного Volvo Construction Equipment A25 VOLVO BM VOLVO BM A25 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:86096
Наименование:Operator seat with fitting parts
Версия:

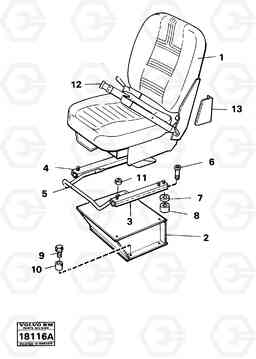

Operator seat with fitting parts A25 VOLVO BM VOLVO BM A25
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | VOE 4881694 | Operator's Seat | 1 |
ERS AV 11057719
|
|
| 10 | VOE 4943026 | Spacer sleeve | 1 | ||
| 10 | VOE 4943026 | Spacer sleeve | 1 | ||
| 11 | VOE 13945408 | Гайка | 1 | ||
| 11 | VOE 13945408 | Гайка | 1 | ||
| 12 | VOE 11005808 | Hip Belt | 1 |
STD USA
|
|
| 13 | VOE 4973490 | Retaining clip | 1 | ||
| 2 | VOE 4843558 | 4843558 | 1 | ||
| 3 | VOE 4952085 | Slide rail | 1 |
V
|
|
| 3 | VOE 4952085 | Slide rail | 1 |
V
|
|
| 4 | VOE 4952086 | Slide rail | 1 |
H
|
|
| 4 | VOE 4952086 | Slide rail | 1 |
H
|
|
| 5 | VOE 11057007 | Handle | 1 | ||
| 6 | VOE 13948400 | Болт | 1 | ||
| 6 | VOE 13948400 | Болт | 1 | ||
| 7 | VOE 925760 | Шайба | 1 | ||
| 7 | VOE 925760 | Шайба | 1 | ||
| 9 | VOE 13965185 | Screw | 1 | ||
| 9 | VOE 13965185 | Болт | 1 |
