Каталог запчастей
-
Volvo Construction Equipment
-
EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
- Cable bunch, machine
Cable bunch, machine экскаватора Volvo Construction Equipment EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
Cable bunch, machine экскаватора Volvo Construction Equipment EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:49863
Наименование:Cable bunch, machine
Версия:

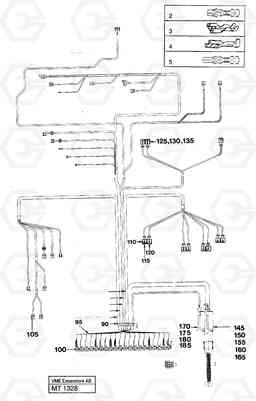

Cable bunch, machine EC230 ?KERMAN ?KERMAN EC230 SER NO - 4368
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| VOE 14253030 | Cable harness | 1 | |||
| 100 | VOE 948295 | Insulator | 1 | ||
| 100 | VOE 948295 | Изолятор | 1 | ||
| 105 | VOE 13949597 | Изолятор | 1 | ||
| 105 | VOE 13949597 | Protecting sleeve | 1 | ||
| 110 | VOE 14212990 | Cable Contact | 1 | ||
| 115 | VOE 14249000 | Крышка | 1 | ||
| 115 | VOE 14249000 | Cover | 1 | ||
| 120 | VOE 14249000 | Крышка | 1 | ||
| 120 | VOE 14249000 | Cover | 1 | ||
| 125 | VOE 14249000 | Крышка | 1 | ||
| 125 | VOE 14249000 | Cover | 1 | ||
| 130 | VOE 14213999 | Сальник | 1 | ||
| 135 | VOE 14214000 | Болт | 1 | ||
| 135 | VOE 14214000 | Болт | 1 | ||
| 145 | VOE 14214994 | Cable sleeve | 1 | ||
| 150 | VOE 14016673 | Strip clamp | 1 | ||
| 150 | VOE 14016673 | Strip clamp | 1 | ||
| 155 | VOE 14214995 | Socket housing | 1 | ||
| 155 | VOE 14214995 | Socket housing | 1 | ||
| 160 | VOE 14213121 | Marking strip | 1 | ||
| 165 | VOE 14213853 | Marking strip | 1 | ||
| 170 | VOE 14253488 | Heat-shrinkable tubing | 1 | ||
| 175 | VOE 14214995 | Socket housing | 1 | ||
| 175 | VOE 14214995 | Socket housing | 1 | ||
| 180 | VOE 14215122 | Marking strip | 1 | ||
| 185 | VOE 14213854 | Marking strip | 1 | ||
| 2 | VOE 965822 | Cable terminal | 1 | ||
| 2 | VOE 965822 | Cable terminal | 1 | ||
| 3 | VOE 949211 | Cable terminal | 1 | ||
| 3 | VOE 949211 | Cable terminal | 1 | ||
| 5 | VOE 965824 | Cable terminal | 1 | ||
| 5 | VOE 965824 | Cable terminal | 1 | ||
| 90 | VOE 14016673 | Strip clamp | 1 | ||
| 90 | VOE 14016673 | Strip clamp | 1 | ||
| 95 | VOE 14016673 | Strip clamp | 1 | ||
| 95 | VOE 14016673 | Strip clamp | 1 |
