Каталог запчастей
-
Doosan
-
DX140W
- INPUT - FRONT AXLE
INPUT - FRONT AXLE экскаватора колесного модели DX Doosan DX140W
INPUT - FRONT AXLE экскаватора колесного модели DX Doosan DX140W со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4600
Наименование:INPUT - FRONT AXLE
Версия:K1025589EF

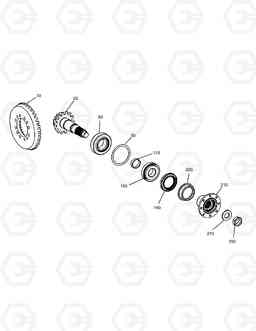

INPUT - FRONT AXLE DX140W
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 10 | K9001469 | GEAR;BEVEL | 1 | ||
| 110 | 1.115-00143 | RING S=10.94 | 1 | ||
| 110 | 1.115-00144 | RING S=10.97 | 1 | ||
| 110 | 1.115-00145 | RING S=11.54 | 1 | ||
| 110 | 1.115-00146 | RING S=11.51 | 1 | ||
| 110 | 1.115-00147 | RING S=11.48 | 1 | ||
| 110 | 1.115-00148 | RING S=11.45 | 1 | ||
| 110 | 1.115-00149 | RING S=11.42 | 1 | ||
| 110 | 2.115-00126 | RING S=11.39 | 1 | ||
| 110 | 2.115-00127 | RING S=11.36 | 1 | ||
| 110 | 2.115-00128 | RING S=11.33 | 1 | ||
| 110 | 2.115-00129 | RING S=11.3 | 1 | ||
| 110 | 2.115-00130 | RING S=11.27 | 1 | ||
| 110 | 2.115-00131 | RING S=11.30 | 1 | ||
| 110 | 2.115-00132 | RING S=11.33 | 1 | ||
| 110 | 2.115-00133 | RING S=11.36 | 1 | ||
| 110 | 2.115-00134 | RING S=11.39 | 1 | ||
| 110 | 2.115-00135 | RING S=11.42 | 1 | ||
| 110 | 2.115-00136 | RING S=11.45 | 1 | ||
| 110 | 2.115-00137 | RING S=11.48 | 1 | ||
| 110 | 2.115-00138 | RING S=11.51 | 1 | ||
| 110 | 2.115-00139 | RING S=11.54 | 1 | ||
| 110 | 2.115-00140 | RING S=11.57 | 1 | ||
| 110 | 2.115-00141 | RING S=11.60 | 1 | ||
| 110 | 2.115-00142 | RING S=11.63 | 1 | ||
| 110 | 2.115-00143 | RING S=11.66 | 1 | ||
| 110 | 2.115-00144 | RING S=11.69 | 1 | ||
| 110 | 2.115-00145 | RING S=11.72 | 1 | ||
| 110 | 2.115-00146 | RING S=11.75 | 1 | ||
| 110 | 2.115-00147 | RING S=11.78 | 1 | ||
| 110 | 2.115-00148 | RING S=11.81 | 1 | ||
| 110 | 2.115-00149 | RING S=11.84 | 1 | ||
| 110 | 2.115-00150 | RING S=11.87 | 1 | ||
| 110 | 2.115-00151 | RING S=11.9 | 1 | ||
| 110 | 2.115-00152 | RING S=11.93 | 1 | ||
| 110 | 2.115-00153 | RING S=11.96 | 1 | ||
| 110 | 2.115-00154 | RING S=11.99 | 1 | ||
| 110 | 2.115-00155 | RING S=12.02 | 1 | ||
| 110 | 2.115-00156 | RING S=12.05 | 1 | ||
| 110 | 2.115-00157 | RING S=12.08 | 1 | ||
| 110 | 2.115-00158 | RING S=12.11 | 1 | ||
| 110 | 2.115-00159 | RING S=12.14 | 1 | ||
| 110 | 2.115-00160 | RING S=12.17 | 1 | ||
| 110 | 2.115-00161 | RING S=12.2 | 1 | ||
| 110 | 2.115-00162 | RING S=12.23 | 1 | ||
| 110 | 2.115-00163 | RING S=12.26 | 1 | ||
| 110 | 2.115-00164 | RING S=12.29 | 1 | ||
| 110 | 2.115-00165 | RING S=12.32 | 1 | ||
| 110 | 2.115-00166 | RING S=12.35 | 1 | ||
| 110 | 2.115-00167 | RING S=12.38 | 1 | ||
| 160 | 1.109-00083 | BEARING;ROLLER | 1 | ||
| 190 | K9001471 | SEAL;SHAFT | 1 | ||
| 20 | K9001470 | GEAR;PINION | 1 | ||
| 210 | 1.229-00013 | FLANGE;INPUT | 1 | ||
| 220 | K9001472 | SHEET;SCREEN | 1 | ||
| 270 | 2.114-00866 | Шайба | 1 | ||
| 290 | 1.121-00036 | Гайка | 1 | ||
| 50 | 2.114-01027 | WASHER 0.7t | 1 | ||
| 50 | 2.114-01029 | WASHER 0.75t | 1 | ||
| 50 | 2.114-01030 | WASHER 0.8t | 1 | ||
| 50 | 2.114-01032 | WASHER 0.9t | 1 | ||
| 50 | 2.114-01034 | WASHER 0.95t | 1 | ||
| 50 | 2.114-01035 | WASHER 1.0t | 1 | ||
| 50 | 2.114-01037 | WASHER 1.05t | 1 | ||
| 50 | 2.114-01039 | WASHER 1.1t | 1 | ||
| 50 | 2.114-01041 | WASHER 1.15t | 1 | ||
| 50 | 2.114-01043 | WASHER 1.2t | 1 | ||
| 50 | 2.114-01045 | WASHER 1.25t | 1 | ||
| 50 | 2.114-01047 | WASHER 1.3t | 1 | ||
| 50 | 2.114-01052 | WASHER 1.5t | 1 | ||
| 50 | 2.114-01081 | WASHER 0.85t | 1 | ||
| 80 | 2.109-00210 | BEARING;ROLLER | 1 |
