Каталог запчастей
-
Doosan
-
TXL400-2
- FUEL FLOW SYSTEM (1)
FUEL FLOW SYSTEM (1) колесного погрузчика модели 2 Doosan TXL400-2
FUEL FLOW SYSTEM (1) колесного погрузчика модели 2 Doosan TXL400-2 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:027
Наименование:FUEL FLOW SYSTEM (1)
Версия:K1018071EF

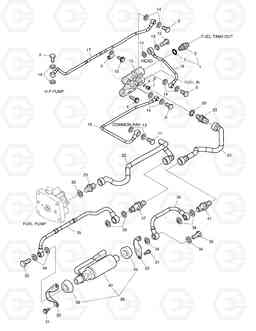

FUEL FLOW SYSTEM (1) TXL400-2
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | K9002328 | UNION;MALE | 1 | ||
| 10 | K9002397 | Болт | 1 | ||
| 11 | K9002436 | Болт | 1 | ||
| 12 | K9002522 | VALVE;CHECK | 1 | ||
| 13 | K9002535 | WASHER;SEALING | 3 | ||
| 14 | K9002536 | WASHER;SEALING | 9 | ||
| 15 | K9002563 | CONNECTION;FUEL BLOCK | 1 | ||
| 16 | K9002580 | TUBE;FUEL DRAIN | 1 | ||
| 17 | K9002581 | TUBE;FUEL DRAIN | 1 | ||
| 18 | K9002582 | TUBE;FUEL DRAIN | 1 | ||
| 2 | K9002326 | SEAL;O-RING | 1 | ||
| 20 | K9002536 | WASHER;SEALING | 1 | ||
| 21 | K9002553 | TUBE;FUEL SUPPLY | 1 | ||
| 22 | K9003977 | TUBE;FUEL SUPPLY | 1 | ||
| 23 | K9002590 | CONNECTION;ADAPTER | 1 | ||
| 30 | K9002391 | SCREW;BANJO CONNECTOR | 2 | ||
| 31 | K9002419 | Болт | 4 | ||
| 32 | K9002518 | Кронштейн насоса подкачки | 2 | ||
| 33 | K9002535 | WASHER;SEALING | 2 | ||
| 34 | K9002536 | WASHER;SEALING | 6 | ||
| 35 | K9002559 | TUBE;FUEL SUPPLY | 1 | ||
| 36 | K9002560 | TUBE;FUEL SUPPLY | 1 | ||
| 37 | K9002574 | VALVE;CHECK | 1 | ||
| 38 | K9002576 | Помпа (насос) ручной подкачки топлива | 1 | ||
| 39 | K9002519 | ISOLATOR;VIBRATION | 2 | ||
| 4 | K9002331 | Болт | 2 | ||
| 41 | K9002602 | CONNECTION;ADAPTER | 1 | ||
| 5 | K9002346 | Скоба (хомут) | 1 | ||
| 6 | K9002350 | PLUG;THREADED | 1 | ||
| 8 | K9002351 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 9 | K9002391 | SCREW;BANJO CONNECTOR | 4 |
