Топливная система бульдозера Doosan DD80L
Топливная система бульдозера Doosan DD80L со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:014
Наименование:FUEL SYSTEM
Версия:2021-7105EF

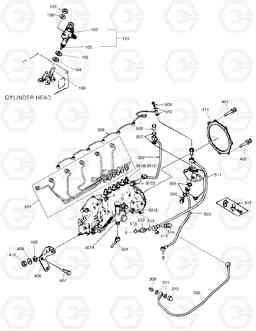

FUEL SYSTEM DD80L
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 101 | 65.10101-7022 | NOZZLE HOLDER ASS'Y | 6 |
65.10101-7295
|
|
| 101 | 65.10101-7078 | NOZZLE HOLDER ASS'Y | 6 |
65.10101-7295
|
|
| 101 | 65.10101-7295 | NOZZLE HOLDER ASS'Y | 6 | ||
| 102 | 65.10101-6007 | HOLDER;NOZZLE | 1 | ||
| 102 | 65.10101-6021 | HOLDER;NOZZLE | 1 | ||
| 103 | 65.10102-0007 | NOZZLE | 1 | ||
| 103 | 65.10102-6044 | NOZZLE | 1 | ||
| 104 | 65.96507-0004 | RING;SEAL | 6 | ||
| 105 | 65.96507-0011 | RING;SEAL | 6 |
65.96507-0046
|
|
| 105 | 65.96507-0046 | RING;SEAL | 6 | ||
| 106 | 06.06125-8711 | Болт-шпилька | 12 | ||
| 107 | 06.11063-8214 | Гайка М8 | 12 | ||
| 108 | 06.16731-2107 | Шайба пружинная | 12 | ||
| 201 | 65.10301-6142 | PRESSURE PIPE ASS'Y | 1 |
65.10301-6144
|
|
| 201 | 65.10301-6144 | PRESSURE PIPE ASS'Y | 1 | ||
| 301 | 65.11101-7248 | PUMP;INJECTION | 1 |
65.11101-7286
|
|
| 301 | 65.11101-7286 | PUMP;INJECTION | 1 | ||
| 301 | 65.11101-7321 | PUMP;INJECTION | 1 | ||
| 301A | 65.12101-7004S | FEED PUMP | 1 | ||
| 301B | 31151-322S | PLUNGER | 6 | ||
| 301C | 65.131160-1120 | VALVE;DELIVERY | 1 | ||
| 301D | 131424-1520 | VALVE;OVERFLOW | 1 | ||
| 301E | 156636-5620 | Муфта соединительная | 1 | ||
| 308 | 65.05701-5200 | PIPE;OIL | 1 | ||
| 309 | 65.98155-0011 | UNION;HOLLOW | 1 | ||
| 310 | 06.12172-9314 | NUT;CAP | 1 | ||
| 311 | 06.56180-0714 | RING;SEAL | 2 | ||
| 401 | 06.01913-3122 | BOLT ASS'Y M8X55 | 7 | ||
| 402 | 06.01913-3124 | BOLT ASS'Y M8X65 | 1 | ||
| 406 | 65.11401-0002C | BRACKET;REAR | 1 | ||
| 407 | 06.01953-3213 | Болт М10Х1.25Х20 | 2 | ||
| 408 | 06.15010-2312 | Шайба плоская | 1 | ||
| 409 | 06.16731-2108 | Шайба пружинная | 1 | ||
| 410 | 06.11063-9215 | NUT M10X1.25 | 1 | ||
| 411 | 65.11902A0001 | GASKET;INJECTION PUMP MOUNTING | 1 | ||
| 501 | 65.12301-5022 | PIPE;FUEL(RETURN) | 1 | ||
| 502 | 65.12301-5019 | PIPE;FUEL | 1 |
65.12301-5817
|
|
| 502 | 65.12301-5817 | PIPE;FUEL | 1 | ||
| 503 | 65.12301-5018 | PIPE;FUEL | 1 |
65.12301-5816
|
|
| 503 | 65.12301-5816 | PIPE;FUEL | 1 | ||
| 504 | 06.78144-2204 | SCREW;HOLLOW | 1 | ||
| 505 | 06.56190-0706 | RING;SEAL A14X20 | 2 | ||
| 506 | 06.78144-2204 | SCREW;HOLLOW | 1 | ||
| 507 | 06.56190-0706 | RING;SEAL A14X20 | 2 | ||
| 508 | 65.12301-5021 | PIPE;FUEL | 1 |
65.12301-5210
|
|
| 508 | 65.12301-5210 | PIPE;FUEL(RETURN) | 1 | ||
| 509 | 65.98150-0015B | SCREW;HOLLOW | 7 | ||
| 510 | 06.56180-0712 | RING;SEAL A8X14 | 14 | ||
| 511 | 65.12301-5020 | PIPE;FUEL(RETURN) | 1 |
65.12301-5818
|
|
| 511 | 65.12301-5818 | PIPE;FUEL(RETURN) | 1 | ||
| 512 | 65.11120-5001 | OVER FLOW VALVE ASS'Y | 1 | ||
| 513 | 65.96507-0010 | RING;SEAL | 3 | ||
| 514 | 06.12172-9316 | NUT;CAP M14X1.5 | 1 | ||
| 515 | 65.97401-6009 | PIPE CLIP ASS'Y | 1 |
