Каталог запчастей
-
Doosan
-
SOLAR 450-III
- NAME PLATE-EXPORT
NAME PLATE-EXPORT экскаватора гусеничного модели III Doosan SOLAR 450-III
NAME PLATE-EXPORT экскаватора гусеничного модели III Doosan SOLAR 450-III со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4130
Наименование:NAME PLATE-EXPORT
Версия:2021-7117EF

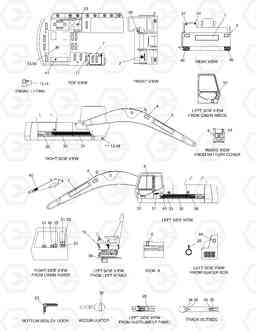

NAME PLATE-EXPORT SOLAR 450-III
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 2190-2767 | NAME PLATE ASS'Y | - | ||
| 1 | 2190-1476 | PLATE;NAME | 1 | ||
| 10 | 2190-2556D37 | PLATE;NAME(SPEC.) | 1 |
2190-2556D60
|
|
| 10 | 2190-2556D60 | PLATE;NAME(SPEC.) | 1 | ||
| 11 | 2190-2457 | PLATE;NAME | 1 | ||
| 11 | 2190-2850 | PLATE;NAME | 1 | ||
| 12 | 2122-1002D1 | RIVET | 4 | ||
| 12 | 2120-1060D4 | Болт | 4 | ||
| 13 | 2190-3558D6 | PLATE;NAME(EUROPE) | 2 | ||
| 14 | 2124-1622D1 | CLIP;BAND | 1 | ||
| 15 | 2190-2530 | PLATE;NAME | 1 | ||
| 16 | 2190-3297 | PLATE;NAME | 1 | ||
| 16 | 2190-2200 | PLATE;NAME | 1 |
2190-3297
|
|
| 17 | 2190-2314D1 | TAPE;ANTI-SKID | 1 | ||
| 19 | 2190-1249 | PLATE;NAME | 1 | ||
| 2 | 2190-1892D2 | PLATE;NAME | 1 | ||
| 21 | 2190-1420 | PLATE;NAME | 1 | ||
| 22 | 2190-2199 | PLATE;NAME | 1 | ||
| 23 | 2190-2249 | TAPE;ANTI-SKID | 1 | ||
| 24 | 2190-2480 | PLATE;NAME | 1 | ||
| 25 | 2190-2549 | PLATE;NAME | 1 | ||
| 26 | 2190-2507A | PLATE;NAME | 1 | ||
| 27 | 2190-2652 | PLATE;NAME | 1 | ||
| 28 | 2190-2781 | PLATE;NAME | 1 | ||
| 29 | 2190-2776 | PLATE;NAME | 1 | ||
| 3 | 2190-1729 | PLATE;NAME | 2 | ||
| 30 | 2190-2777 | PLATE;NAME | 1 | ||
| 31 | 2190-2778 | PLATE;NAME | 1 | ||
| 32 | 2190-2780 | PLATE;NAME | 1 | ||
| 33 | 2190-2779 | PLATE;NAME | 1 | ||
| 34 | 2190-2476 | PLATE;NAME(TIE DOWN) | 4 | ||
| 35 | 2190-2477 | PLATE;NAME(LIFTING) | 4 | ||
| 36 | 2190-2525 | PLATE;NAME | 1 | ||
| 37 | 2190-3388 | PLATE;NAME | 1 | ||
| 37 | 2190-2526 | PLATE;NAME | 1 |
2190-3388
|
|
| 38 | 2190-2527 | PLATE;NAME | 1 | ||
| 39 | 2190-2528 | PLATE;NAME(ACCUMULATOR) | 1 | ||
| 4 | 2190-2534 | PLATE;NAME | 4 | ||
| 40 | 2190-2561A | PLATE;NAME | 2 | ||
| 41 | 2190-3395 | PLATE;NAME(HOT WATER) | 1 | ||
| 41 | 2190-2531 | PLATE;NAME | 1 |
2190-3395
|
|
| 42 | 2190-2532 | PLATE;NAME | 1 | ||
| 43 | 2190-2533 | PLATE;NAME(BATTERY) | 1 | ||
| 44 | 2190-2524 | PLATE;NAME | 1 | ||
| 46 | 2190-2560A | PLATE;NAME | 2 | ||
| 48 | 2190-2558 | PLATE;NAME | 1 | ||
| 48 | 2190-2848 | PLATE;NAME(ONLY EUROPE) | 1 | ||
| 49 | 2190-2775 | PLATE;NAME | 1 | ||
| 50 | 2190-3149D6 | PLATE;NAME(ONLY USA) | 1 |
2190-3451D6
|
|
| 50 | 2190-3451D6 | PLATE;NAME(ONLY USA) | 1 | ||
| 51 | 2190-3270D13 | PLATE;NAME(SOUND POWER) | 1 | ||
| 52 | 2190-3271D13 | PLATE;NAME(SOUND PRESS.) | 1 | ||
| 52 | 2190-3271D35 | PLATE;NAME(SOUND PRESS.) | 1 | ||
| 53 | 2190-3318 | PLATE;NAME | 1 | ||
| 53 | 2190-2529 | PLATE;NAME | 1 | ||
| 6 | 2190-2790 | PLATE;NAME(FUSE BOX) | 1 | ||
| 7 | 2190-1245 | TAPE;ANTI-SKID | 17 | ||
| 8 | 2116-9003 | Пластина | 2 | ||
| 9 | 2190-3186 | PLATE;NAME | 1 |
2190-3186A
|
|
| 9 | 2190-3186A | PLATE;NAME | 1 | ||
| 9 | 2190-2789 | PLATE;NAME | 1 |
2190-2789A
|
|
| 9 | 2190-2789A | PLATE;NAME | 1 |
