Каталог запчастей
-
Doosan
-
SOLAR 290LC-V
- NAME PLATE-ENGLISH
NAME PLATE-ENGLISH экскаватора гусеничного модели V Doosan SOLAR 290LC-V
NAME PLATE-ENGLISH экскаватора гусеничного модели V Doosan SOLAR 290LC-V со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:5120
Наименование:NAME PLATE-ENGLISH
Версия:2021-7133EF

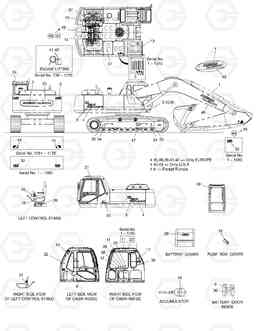

NAME PLATE-ENGLISH SOLAR 290LC-V
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 2190-3304A | NAME PLATE ASS'Y-EXPORT | - | ||
| 1 | K1011645D1 | PLATE;NAME(DOOSAN) | 2 | ||
| 10 | 2122-1002D1 | RIVET | 4 |
2122-1002D2
|
|
| 10 | 2122-1002D2 | RIVET | 4 | ||
| 11 | 190-00688 | PLATE;NAME | 1 | ||
| 11 | 2190-3312 | PLATE;NAME | 1 | ||
| 12 | 2190-3297 | PLATE;NAME | 1 | ||
| 13 | 2190-2314D3 | TAPE;ANTI-SKID | 13 | ||
| 13 | 2190-2314D3 | TAPE;ANTI-SKID | 15 | ||
| 14 | 2190-3301D1 | PLATE;NAME | 1 | ||
| 15 | 2190-3309 | PLATE;NAME(LEVER LOCK) | 1 | ||
| 16 | 190-00694 | PLATE;NAME | 1 | ||
| 16 | 2190-3315 | PLATE;NAME | 1 | ||
| 17 | 2190-2480 | PLATE;NAME | 1 | ||
| 18 | 2190-3244D1 | PLATE;NAME(FUSE BOX) | 1 | ||
| 19 | 190-00703 | PLATE;NAME | 1 | ||
| 19 | 2190-2528 | PLATE;NAME(ACCUMULATOR) | 1 | ||
| 2 | K1011645D6 | PLATE;NAME | 1 | ||
| 20 | 2190-3239 | PLATE;NAME | 1 | ||
| 21 | 2116-9003 | Пластина | 1 | ||
| 22 | 2190-2524 | PLATE;NAME | 1 | ||
| 23 | 190-00689 | PLATE;NAME | 1 | ||
| 23 | 2190-2532 | PLATE;NAME | 1 | ||
| 24 | 2190-3388 | PLATE;NAME | 1 | ||
| 25 | 190-00695 | PLATE;NAME | 1 | ||
| 25 | 2190-2549 | PLATE;NAME | 1 | ||
| 26 | 2190-3386 | PLATE;NAME(TRACK ADJ.) | 1 | ||
| 26 | 2190-3386A | PLATE;NAME | 1 | ||
| 27 | 190-00181 | PLATE;NAME(HOT OIL) | 1 | ||
| 27 | 190-00691 | PLATE;NAME(HOT OIL) | 1 | ||
| 27 | 2190-3318 | PLATE;NAME | 1 | ||
| 28 | K1011648 | PLATE;NAME | 1 | ||
| 29 | 2190-3384 | PLATE;NAME | 1 | ||
| 3 | 2190-3379 | PLATE;NAME | 4 | ||
| 3 | 2190-3379 | PLATE;NAME | 2 |
2190-3379A
|
|
| 3 | 2190-3379A | PLATE;NAME | 2 | ||
| 30 | 2190-1420 | PLATE;NAME | 1 | ||
| 31 | 2190-3383 | PLATE;NAME | 1 | ||
| 32 | 2190-2552A | PLATE;NAME | 4 | ||
| 33 | 2190-2476 | PLATE;NAME(TIE DOWN) | 4 | ||
| 34 | 2190-2477 | PLATE;NAME(LIFTING) | 4 | ||
| 35 | 2190-2848 | PLATE;NAME(ONLY EUROPE) | 1 | ||
| 36 | 2190-2533 | PLATE;NAME(BATTERY) | 1 | ||
| 36 | 2190-2533A | PLATE;NAME | 1 | ||
| 37 | 190-00692 | PLATE;NAME | 1 | ||
| 37 | 2190-3395 | PLATE;NAME(HOT WATER) | 1 | ||
| 38 | 2190-3270D21 | PLATE;NAME(SOUND POWER) | 1 | ||
| 39 | 2190-3271D21 | PLATE;NAME(SOUND PRESS.) | 1 | ||
| 4 | 2190-3331 | PLATE;NAME | 2 | ||
| 40 | 2190-3452D14 | PLATE;NAME(E/G EMMISSION) | 1 | ||
| 41 | 2190-3558D8 | PLATE;NAME(EUROPE-E/G EMISSION) | 2 | ||
| 42 | 2124-1622D1 | CLIP;BAND | 1 | ||
| 43 | 190-00693 | PLATE;NAME | 1 | ||
| 43 | 2190-3600 | PLATE;NAME(ONLY U.S.A) | 1 | ||
| 44 | 2190-3528 | PLATE;NAME(SWING AREA) | 3 | ||
| 45 | 2190-3530 | PLATE;NAME(SWING AREA) | 1 | ||
| 46 | 190-00652 | PLATE;NAME | 2 | ||
| 47 | 190-00122 | PLATE;NAME | 2 | ||
| 48 | 190-00798D5 | PLATE;NAME(E/G EMISSION) | 1 | ||
| 49 | K1012470D4 | PLATE;NAME(DAEWOO) | 2 | ||
| 5 | 2190-3332 | PLATE;NAME(SOLAR) | 2 | ||
| 50 | K1012470D2 | PLATE;NAME(DAEWOO) | 1 | ||
| 6 | 2190-3387 | PLATE;NAME | 1 |
2190-3387A
|
|
| 6 | 2190-3387A | PLATE;NAME | 1 | ||
| 6 | 2190-3387B | PLATE;NAME | 1 |
2190-3387C
|
|
| 6 | 2190-3387C | PLATE;NAME | 1 | ||
| 6 | 2190-3387E | PLATE;NAME | 1 |
2190-3387G
|
|
| 6 | 2190-3387G | PLATE;NAME | 1 | ||
| 7 | 2190-1245 | TAPE;ANTI-SKID | 3 | ||
| 8 | 2190-2556D72 | PLATE;NAME(SPEC.) | 1 | ||
| 9 | K1011647A | PLATE;NAME | 1 |
