Насос масляный экскаватора гусеничного модели V Doosan SOLAR 330LC-V

Насос масляный экскаватора гусеничного модели V Doosan SOLAR 330LC-V со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России

Код подсистемы:019

Наименование:OIL PUMP

Версия:2021-7149EF

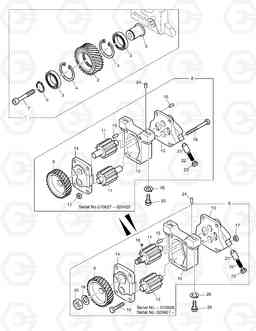

OIL PUMP SOLAR 330LC-V

Поз.	Код	Наименование	Кол	Прим.
1	65.05200-6004A	IDLE GEAR MOUNTING	1
10	65.05102-0015	HOUSING;OIL PUMP	1
11	65.05104-5004	GEAR;PUMP	1
11	65.05104-5004	GEAR;PUMP	1
11	65.05104-5008	GEAR;PUMP	2
12	65.05104-5005	GEAR;PUMP	1
12	65.05104-5005	GEAR;PUMP	1
13	65.05103-5008	OIL PUMP COVER ASS'Y(RR)	1
13	65.05103-5008	OIL PUMP COVER ASS'Y(RR)	1
13	65.05103-5020	OIL PUMP COVER ASS'Y(RR)	1
14	65.05103-5006A	OIL PUMP COVER ASS'Y(FR)	1
14	65.05103-5006A	OIL PUMP COVER ASS'Y(FR)	1
14	65.05103-5028	OIL PUMP COVER ASS'Y(FR)	1
15	06.22022-0909	Палец	4
15	06.22022-0907	PIN;DOWEL 6M6X10	4
15	06.22022-0907	PIN;DOWEL 6M6X10	4
16	06.01013-9118	BOLT;HEX. M8X65	4
17	65.90510-0012	Гайка	4
18	06.29141-0207	KEY;WOODRUFF	1
18	06.29141-0207	KEY;WOODRUFF	1
19	06.16050-0311	WASHER;LOCK	1
19	06.16050-0311	WASHER;LOCK	1
2	65.05204-0003A	GEAR;OIL PUMP IDLE	1
20	06.11053-9217	NUT;HEX.	1
20	06.11053-9217	NUT;HEX.	1
21	65.05410-0007	PLUNGER;VALVE	1
22	65.97601-0105	SPRING;COMP.	1
23	65.90310-0104	SCREW;PLUG	1
24	06.22022-0907	PIN;DOWEL 6M6X10	2
25	06.01013-9215	BOLT;HEX. M10X50	2
26	65.90801-0038	WASHER;LOCK	2
3	06.31420-0314	BEARING;BALL	2
4	06.29020-0132	RING;SNAP	2
5	65.05205-0018	PIN;IDLE GEAR	1
6	06.29010-0125	RING;SNAP 30X2	1
7	65.90030-0009	BOLT;SOCKET HEAD M10X60	1
8	65.05100-6042A	OIL PUMP ASS'Y(9~23)	1	65.05100-6050
8	65.05100-6042A	OIL PUMP ASS'Y(9~23)	1
8	65.05100-6050	OIL PUMP ASS'Y(9~23)	1	65.05100-6042A
9	65.05201-0008A	GEAR;DRIVE	1
9	65.05201-0008A	GEAR;DRIVE	1
9	65.05201-0010	GEAR;OIL PUMP DRIVE	1
