Каталог запчастей
-
Doosan
-
SOLAR 300LC-V
- ELECTRIC PARTS(1)-GAUGE & SWITCH PANEL
ELECTRIC PARTS(1)-GAUGE & SWITCH PANEL экскаватора гусеничного модели V Doosan SOLAR 300LC-V
ELECTRIC PARTS(1)-GAUGE & SWITCH PANEL экскаватора гусеничного модели V Doosan SOLAR 300LC-V со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1660
Наименование:ELECTRIC PARTS(1)-GAUGE & SWITCH PANEL
Версия:021-00019EF

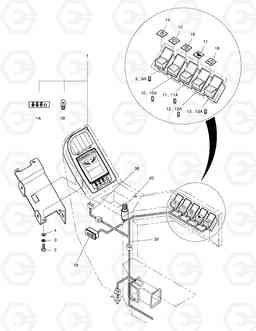

ELECTRIC PARTS(1)-GAUGE & SWITCH PANEL SOLAR 300LC-V
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 500-00114A | ELECTRIC PARTS(4) | - | ||
| - | 500-00114B | ELECTRIC PARTS(4) | - | ||
| - | 500-00114E | ELECTRIC PARTS(4) | - | ||
| - | 500-00114G | ELECTRIC PARTS(1) | - | ||
| - | 500-00114H | ELECTRIC PARTS(4) | - | ||
| - | 500-00114I | ELECTRIC PARTS(4) | - | ||
| - | 500-00114J | ELECTRIC PARTS(4) | - | ||
| - | 500-00114L | ELECTRIC PARTS(4) | - | ||
| - | 500-00114M | ELECTRIC PARTS(4) | - | ||
| 1 | 539-00048 | PANEL;LCD GAUGE | 1 |
539-00048A
|
|
| 1 | 539-00048A | PANEL;LCD GAUGE | 1 |
539-00048C
|
|
| 1 | 539-00048C | PANEL;LCD GAUGE | 1 |
539-00048E
|
|
| 1 | 539-00048E | PANEL;LCD GAUGE | 1 |
539-00048G
|
|
| 1 | 539-00048G | PANEL;LCD GAUGE | 1 | ||
| 10 | 2549-9109 | SWITCH;LAMP | 1 | ||
| 10A | K9000353 | LAMP;PILOT | 1 | ||
| 11 | 2549-9110 | SWITCH;WASHER | 1 | ||
| 11A | K9000353 | LAMP;PILOT | 1 | ||
| 12 | 2549-9109 | SWITCH;LAMP | 1 | ||
| 12A | K9000353 | LAMP;PILOT | 1 | ||
| 13 | 2549-9098 | SWITCH;ROCKER | 1 | ||
| 13A | K9000353 | LAMP;PILOT | 1 | ||
| 14 | 2190-2036D24 | INSERT;LAMP | 1 | ||
| 15 | 2190-2036D11 | INSERT;WIPER | 1 | ||
| 16 | 2190-2036D12 | INSERT;WASHER | 1 | ||
| 17 | 2190-2036D13 | INSERT;HIGH SPEED | 1 | ||
| 18 | 2190-2036D23 | INSERT;CAR STEREO | 1 | ||
| 19 | 2528-9040 | METER;HOUR | 1 | ||
| 1A | 159-00195 | SHEET;SWITCH | 1 | ||
| 1B | 515-00012 | BULB 24V 1.2W | 6 | ||
| 2 | S3450853 | Болт | 4 | ||
| 20 | 545-00001 | LIGHTER;CIGAR | 1 | ||
| 3 | S5100203 | Шайба пружинная M5 | 4 | ||
| 38 | 530-00231A | HARNESS;GAUGE PANEL JOINT | 1 | ||
| 39 | 530-00209 | HARNESS;SWITCH BOX | 1 | ||
| 4 | S5000213 | WASHER;PLAIN M5 | 4 | ||
| 9 | 2549-9109 | SWITCH;LAMP | 1 | ||
| 9A | K9000353 | LAMP;PILOT | 1 |
