SOLAR 220LC-V
- ELECTRIC WIRING(1)-RELATED PARTS
ELECTRIC WIRING(1)-RELATED PARTS экскаватора гусеничного модели V Doosan SOLAR 220LC-V
ELECTRIC WIRING(1)-RELATED PARTS экскаватора гусеничного модели V Doosan SOLAR 220LC-V со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1690
Наименование:ELECTRIC WIRING(1)-RELATED PARTS
Версия:2021-7134EF

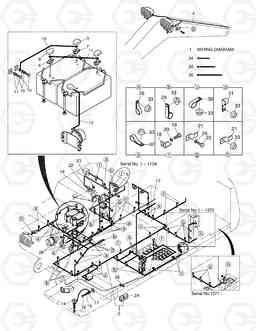

ELECTRIC WIRING(1)-RELATED PARTS SOLAR 220LC-V
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 2500-1158 | ELECTRIC PARTS | - | ||
| 1 | 2599-1117 | WIRING DIAGRAM | 1 | ||
| 1 | 2599-1117A | WIRING DIAGRAM | 1 | ||
| 10 | 2553-1275D5 | CABLE;EARTH | 1 | ||
| 11 | 2553-1275D46 | CABLE;BATT-BATT | 1 | ||
| 11 | 2553-1275D6 | CABLE;BATT-BATT 60R-250L | 1 |
2553-1275D46
|
|
| 12 | 2553-1275D7 | CABLE;BATT-BATT RELAY 60R-400L | 1 | ||
| 13 | 2553-1275D8 | CABLE;BATT RY-STARTER | 1 | ||
| 14 | 2553-1275D5 | CABLE;EARTH | 1 | ||
| 15 | S0511653 | BOLT M10X1.5X16 | 4 | ||
| 16 | S5102603 | Шайба пружинная M10 | 4 | ||
| 17 | S5010613 | WASHER;PLAIN M10 | 4 | ||
| 18 | 2195-3500 | BRACKET;HOUSING | 8 | ||
| 18 | 2195-3500 | BRACKET;HOUSING | 7 | ||
| 19 | S3450953 | SCREW M6X1.0X12 | 7 | ||
| 19 | S3450953 | SCREW M6X1.0X12 | 6 | ||
| 2 | 2530-1607A | HARNESS;MAIN | 1 | ||
| 2 | 2530-1607C | HARNESS;MAIN | 1 | ||
| 2 | 2530-1607E | HARNESS;MAIN | 1 |
2530-1607G
|
|
| 2 | 2530-1607G | HARNESS;MAIN | 1 |
2530-1607H
|
|
| 2 | 2530-1607H | HARNESS;MAIN | 1 |
2530-1607I
|
|
| 2 | 2530-1607I | HARNESS;MAIN | 1 | ||
| 2 | 2530-1607J | HARNESS;MAIN | 1 | ||
| 2 | 2530-1607K | HARNESS;MAIN | 1 | ||
| 2 | 2530-1607L | HARNESS;MAIN | 1 | ||
| 2 | 2530-1607M | HARNESS;MAIN | 1 | ||
| 20 | S5102303 | Шайба пружинная M6 | 7 | ||
| 20 | S5102303 | Шайба пружинная M6 | 6 | ||
| 21 | 2197-1660 | BRACKET;HOUSING | 7 | ||
| 22 | 2197-1661 | BRACKET;HOUSING | 1 | ||
| 23 | S0508653 | BOLT M8X1.25X16 | 4 | ||
| 24 | S5102503 | Шайба пружинная M8 | 4 | ||
| 28 | 2124-1509D1 | Скоба (хомут) | 18 | ||
| 29 | 2124-1509D2 | CLIP D18/M8 | 15 | ||
| 29 | 2124-1509D2 | CLIP D18/M8 | 18 | ||
| 30 | 2124-1509D3 | CLIP D24/M8 | 10 | ||
| 31 | 2124-1509D4 | CLIP D30/M8 | 12 | ||
| 32 | 2124-1509D5 | CLIP D36/M8 | 4 | ||
| 33 | 2121-1305 | NUT M8X1.25 | 69 | ||
| 33 | 2121-1305 | NUT M8X1.25 | 71 | ||
| 34 | 2124-1622D1 | CLIP;BAND | 10 | ||
| 35 | 2124-1622D2 | CLIP;BAND 200L | 30 | ||
| 36 | 2124-1622D3 | CLIP;BAND 280L | 10 | ||
| 4 | 2530-1609D1 | HARNESS;WORKING LAMP | 1 |
2530-1609D3
|
|
| 4 | 2530-1609D10 | HARNESS;WORKING LAMP | 1 | ||
| 4 | 2530-1609D3 | HARNESS;WORKING LAMP | 1 |
2530-1609D10
|
|
| 5 | 2530-1400 | HARNESS;PRESS SWITCH | 1 | ||
| 6 | 1550-1004 | TERMINAL;BATTERY(+) | 2 |
2550-1014D1
|
|
| 6 | 2550-1014D1 | TERMINAL;BATTERY(+) | 2 | ||
| 7 | 1550-1003 | TERMINAL;BATTERY(-) | 2 |
2550-1014D2
|
|
| 7 | 2550-1014D2 | TERMINAL;BATTERY(-) | 2 | ||
| 8 | 2160-1212 | CAP;BATT. TML (+) | 2 | ||
| 9 | 2160-1213 | CAP;BATT. TML (-) | 2 |
