NAME PLATE-EUROPE экскаватора гусеничного модели V Doosan SOLAR 130-V
NAME PLATE-EUROPE экскаватора гусеничного модели V Doosan SOLAR 130-V со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:5140
Наименование:NAME PLATE-EUROPE
Версия:2021-7138EF

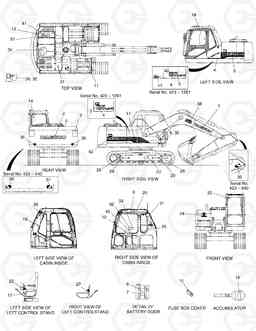

NAME PLATE-EUROPE SOLAR 130-V
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 190-00148 | NAME PLATE ASS'Y | - | ||
| 1 | 2190-3385D1 | PLATE;NAME(DAEWOO) | 2 | ||
| 10 | 2190-3297 | PLATE;NAME | 1 | ||
| 11 | 2190-2314D3 | TAPE;ANTI-SKID | 9 | ||
| 12 | 2190-3309 | PLATE;NAME(LEVER LOCK) | 1 | ||
| 13 | 190-00095 | PLATE;NAME | 1 | ||
| 14 | 190-00101 | PLATE;NAME(HAMMER) | 1 | ||
| 15 | 2190-3244D1 | PLATE;NAME(FUSE BOX) | 1 | ||
| 16 | 190-00099 | PLATE;NAME | 1 | ||
| 17 | 190-00980 | PLATE;NAME | 1 | ||
| 17 | 2190-3239 | PLATE;NAME | 1 | ||
| 18 | 2116-9003 | Пластина | 1 | ||
| 19 | 2190-2524 | PLATE;NAME | 1 | ||
| 2 | 2190-3385D2 | PLATE;NAME(DAEWOO) | 1 | ||
| 20 | 190-00096 | PLATE;NAME(ELEC. LINE) | 1 | ||
| 21 | 190-00093 | PLATE;NAME(SLIDE WINDOW) | 1 | ||
| 22 | 190-00098 | PLATE;NAME | 1 | ||
| 23 | 190-00122 | PLATE;NAME | 2 | ||
| 24 | 2190-1892D2 | PLATE;NAME | 1 | ||
| 25 | 190-00315 | PLATE;NAME(WIPER MOTOR) | 1 | ||
| 25 | 2190-3384 | PLATE;NAME | 1 | ||
| 26 | 190-00102 | PLATE;NAME | 1 | ||
| 27 | 2190-3383 | PLATE;NAME | 1 | ||
| 28 | 2190-2476 | PLATE;NAME(TIE DOWN) | 4 | ||
| 29 | 2190-2477 | PLATE;NAME(LIFTING) | 4 | ||
| 3 | 190-00090 | PLATE;NAME | 2 | ||
| 30 | 2190-2848 | PLATE;NAME(ONLY EUROPE) | 1 |
2190-2848A
|
|
| 30 | 2190-2848A | PLATE;NAME | 1 | ||
| 31 | 190-00097 | PLATE;NAME(HOT WATER) | 2 | ||
| 32 | 2190-3270D23 | PLATE;NAME(SOUND POWER) | 1 | ||
| 33 | 2190-3271D23 | PLATE;NAME(SOUND PRESS.) | 1 | ||
| 34 | 190-00509D1 | PLATE;NAME(E/G EMISSION) | 2 | ||
| 34 | 190-00509D13 | PLATE;NAME(E/G EMISSION) | 1 | ||
| 34 | 190-00509D15 | PLATE;NAME(E/G EMISSION) | 1 | ||
| 34 | 2190-3558D1 | PLATE;NAME(E/G EMISSION) | 2 |
190-00509D1
|
|
| 35 | 2124-1622D1 | CLIP;BAND | 1 | ||
| 36 | 190-00647 | PLATE;NAME | 3 | ||
| 36 | 2190-3528 | PLATE;NAME(SWING AREA) | 3 |
190-00647
|
|
| 37 | 2190-3530 | PLATE;NAME(SWING AREA) | 1 | ||
| 38 | 190-00091 | PLATE;NAME | 2 | ||
| 38 | 190-00652 | PLATE;NAME | 2 | ||
| 39 | 190-00094 | PLATE;NAME(CAUTION) | 1 | ||
| 4 | 190-00851 | PLATE;NAME | 1 | ||
| 4 | 2190-3406 | PLATE;NAME(MODEL) | 2 | ||
| 40 | 190-00730D13 | PLATE;NAME(SOUND POWER) | 1 |
190-01059D13
|
|
| 40 | 190-01059D13 | PLATE;NAME(SOUND POWER) | 1 | ||
| 41 | 190-00557 | PLATE;NAME | 1 | ||
| 42 | 190-01124 | PLATE;NAME | 1 | ||
| 5 | 190-01123 | PLATE;NAME | 1 | ||
| 5 | 2190-3332 | PLATE;NAME(SOLAR) | 2 | ||
| 6 | 190-00146 | PLATE;NAME | 1 | ||
| 6 | 190-00146A | MAINTENANCE INTERVALS | 1 | ||
| 6 | 190-00146B | PLATE;NAME | 1 |
190-00146C
|
|
| 6 | 190-00146C | PLATE;NAME | 1 | ||
| 7 | 190-00100 | PLATE;NAME(BATTERY) | 1 | ||
| 8 | 2122-1002D1 | RIVET | 4 | ||
| 8 | 2122-1002D2 | RIVET | 4 | ||
| 9 | 190-00092 | PLATE;NAME | 1 |
