CONTROL SYSTEM(2) экскаватора гусеничного модели мини Doosan SOLAR 030PLUS
CONTROL SYSTEM(2) экскаватора гусеничного модели мини Doosan SOLAR 030PLUS со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1130
Наименование:CONTROL SYSTEM(2)
Версия:2021-7129EF

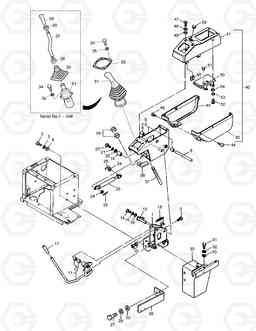

CONTROL SYSTEM(2) SOLAR 030PLUS
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 2133-7045 | CONTROL LEVER | - | ||
| 1 | 2197-1212A | BRACKET;STAND(D) | 1 | ||
| 10 | S4012333 | NUT M6X1.0 | 2 | ||
| 11 | 2133-1978A | LEVER;LOCK(L.H) | 1 | ||
| 12 | 2110-1184D39 | BUSH 23/20-25L | 2 | ||
| 13 | 2112-1217 | Вал | 1 | ||
| 14 | S0509053 | BOLT M8X1.25X25 | 1 | ||
| 15 | S5102503 | Шайба пружинная M8 | 1 | ||
| 16 | S5010513 | WASHER;PLAIN M8 | 1 | ||
| 17 | 2132-1108 | GRIP | 1 | ||
| 17 | 870-00008 | GRIP | 1 |
2132-1108
|
|
| 18 | 2129-1427 | SPRING;RETURN | 1 | ||
| 19 | 2114-1746 | Фланец | 1 | ||
| 2 | S0509053 | BOLT M8X1.25X25 | 4 | ||
| 20 | S0508653 | BOLT M8X1.25X16 | 1 | ||
| 21 | S5102503 | Шайба пружинная M8 | 1 | ||
| 22 | S5010513 | WASHER;PLAIN M8 | 1 | ||
| 23 | 41301-01690 | DAMPER | 1 |
440-00011
|
|
| 23 | 440-00011 | DAMPER | 1 | ||
| 24 | S5010613 | WASHER;PLAIN M10 | 2 | ||
| 25 | S5735261 | PIN;SPLIT | 2 | ||
| 26 | 2197-1214A | BRACKET;UNLOAD(L) | 1 | ||
| 26 | 2197-1214B | BRACKET;UNLOAD(L) | 1 | ||
| 27 | S0509053 | BOLT M8X1.25X25 | 2 | ||
| 28 | S5102503 | Шайба пружинная M8 | 2 | ||
| 29 | S5010513 | WASHER;PLAIN M8 | 2 | ||
| 3 | S5102503 | Шайба пружинная M8 | 4 | ||
| 30 | 2197-1273B | COWL(L.H) | 1 | ||
| 31 | S0509053 | BOLT M8X1.25X25 | 4 | ||
| 32 | S5102503 | Шайба пружинная M8 | 4 | ||
| 33 | S5010513 | WASHER;PLAIN M8 | 4 | ||
| 34 | S0505053 | BOLT M6X1.0X25 | 4 | ||
| 35 | S5102303 | Шайба пружинная M6 | 4 | ||
| 36 | 12002-03860 | BOOTS | 1 | ||
| 37 | 2133-1985A | LEVER;JOYSTICK | 1 | ||
| 38 | S4032833 | Гайка | 1 | ||
| 39 | 41301-01590 | GRIP | 1 | ||
| 4 | S5010513 | WASHER;PLAIN M8 | 4 | ||
| 40 | 2627-9003 | BOX CONSOLE ASS'Y(L.H) | 1 | ||
| 40 | 2627-9003A | BOX CONSOLE ASS'Y(L.H) | 1 | ||
| 40 | 40901-04000 | BOX CONSOLE ASS'Y(L.H) | 1 |
2627-9003
|
|
| 41 | 11310-03870 | BOX CONSOLE(L.H) | 1 | ||
| 42 | 11310-03880 | COVER 2 | 1 | ||
| 42 | 2627-9004 | COVER 1 | 1 | ||
| 43 | 11310-03890 | COVER 2 | 1 | ||
| 43 | 2627-9005 | COVER 2 | 1 | ||
| 44 | S3691201 | TAPPING;SCREW | 6 | ||
| 44 | S3691203 | TAPPING;SCREW | 6 | ||
| 45 | 41301-01740 | NUT;SPRING | 6 | ||
| 46 | S3691211 | TAPPING;SCREW | 2 | ||
| 46 | S3691213 | TAPPING;SCREW | 2 | ||
| 47 | S3450871 | SCREW M5X0.8X25 | 4 | ||
| 47 | S3450873 | SCREW M5X0.8X25 | 4 | ||
| 48 | S5100203 | Шайба пружинная M5 | 4 | ||
| 49 | S5000213 | WASHER;PLAIN M5 | 4 | ||
| 5 | 2197-2620 | STAND;LEVER(L) | 1 | ||
| 5 | 2197-1213A | STAND;LEVER(L) | 1 | ||
| 50 | 41301-01960 | PLATE;PANEL | 1 | ||
| 50 | 539-00007 | PLATE;PANEL | 1 | ||
| 51 | 41301-01970 | GROMMET(2) | 2 | ||
| 52 | S3402871 | SCREW M5X0.8X25 | 4 | ||
| 53 | S5100203 | Шайба пружинная M5 | 4 | ||
| 54 | S5000103 | WASHER;PLAIN M4 | 4 | ||
| 55 | 41301-01980 | GROMMET(1) | 1 | ||
| 56 | 2161-2043 | STOPPER(L.H) | 1 | ||
| 57 | 2120-2119B | BOLT;PUSH | 1 | ||
| 58 | S4032633 | NUT M10X1.25 | 2 | ||
| 6 | 2110-1184D38 | BUSH 23/20-20L | 1 | ||
| 60 | S4030833 | Гайка | 1 | ||
| 61 | 2420-9616 | REMOTE CONTROL(L.H) | 1 | ||
| 61 | 40501-01821 | JOYSTICK VALVE | 1 | ||
| 62 | 2621-2752 | Пластина | 1 | ||
| 7 | 2110-1184D39 | BUSH 23/20-25L | 1 | ||
| 8 | 2123-2123 | Вал | 1 | ||
| 9 | S0553453 | BOLT M6X1.0X40 | 1 |
