SWING BODY экскаватора гусеничного модели мини Doosan SOLAR 55-V
SWING BODY экскаватора гусеничного модели мини Doosan SOLAR 55-V со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1100
Наименование:SWING BODY
Версия:2021-7157EF

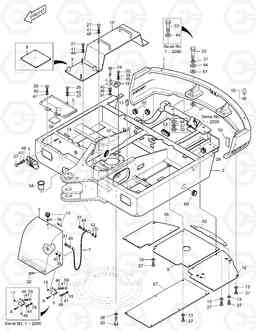

SWING BODY SOLAR 55-V
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 2600-1120 | FRAME ASS'Y | - | ||
| 1 | 2624-1096C | WEIGHT;COUNTER | 1 | ||
| 10 | 2412-1058A | Пластина | 1 | ||
| 11 | 2123-2132 | PIN;KNOCK | 2 | ||
| 12 | 2621-3212B | COVER;UNDER | 1 |
2621-3212C
|
|
| 12 | 2621-3212C | COVER;UNDER | 1 |
2621-3212E
|
|
| 12 | 2621-3212E | COVER;UNDER | 1 | ||
| 13 | 2114-1058D29 | Шайба | 21 | ||
| 13 | 2114-1058D29 | Шайба | 24 | ||
| 14 | S6540500 | RING;RETAINING | 2 | ||
| 16 | 2412-1059 | PLATE;KEY | 1 | ||
| 17 | 2172-9035 | KEY ASS'Y | 1 | ||
| 17 | 2440-9250 | KEY ASS'Y | 1 |
2172-9035
|
|
| 18 | 2116-1434A | PLATE;LOCK | 1 |
2116-1434B
|
|
| 18 | 2116-1434B | PLATE;LOCK | 1 | ||
| 2 | 2621-3809A | COVER;FUEL | 1 | ||
| 20 | S0566061 | BOLT M16X2.0X90 | 24 | ||
| 22 | 2160-1004D13 | BUSHING;RUBBER | 2 | ||
| 22 | 2160-1004D52 | BUSHING;RUBBER | 2 | ||
| 23 | S0570761 | BOLT M20X2.5X95 | 4 | ||
| 24 | S0565753 | BOLT M16X2.0X75 | 1 | ||
| 25 | S0560453 | BOLT M12X1.75X35 | 2 | ||
| 26 | S0511853 | BOLT M10X1.5X20 | 3 | ||
| 26 | S0511853 | Болт | 3 | ||
| 27 | S0508853 | BOLT M8X1.25X20 | 33 | ||
| 27 | S0508853 | BOLT M8X1.25X20 | 36 | ||
| 28 | 2160-1004D47 | BUSHING;RUBBER | 1 | ||
| 28 | 2160-1004D5 | BUSHING;RUBBER | 1 | ||
| 29 | S0508553 | BOLT M8X1.25X14 | 4 | ||
| 3 | 2605-1019C | MAIN FRAME;BOOM SWING | 1 |
2605-1019E
|
|
| 3 | 2605-1019E | MAIN FRAME;BOOM SWING | 1 |
2605-1019G
|
|
| 3 | 2605-1019G | MAIN FRAME;BOOM SWING | 1 | ||
| 3 | 2605-1019H | MAIN FRAME;BOOM SWING | 1 |
2605-1019L
|
|
| 3 | 2605-1019L | MAIN FRAME;BOOM SWING | 1 |
2605-1019M
|
|
| 3 | 2605-1019M | MAIN FRAME;BOOM SWING | 1 | ||
| 3 | 2605-1019N | MAIN FRAME;BOOM SWING | 1 | ||
| 3 | 2605-1019Q | MAIN FRAME;BOOM SWING | 1 |
2605-1019R
|
|
| 3 | 2605-1019R | MAIN FRAME;BOOM SWING | 1 |
2605-1019S
|
|
| 3 | 2605-1019S | MAIN FRAME;BOOM SWING | 1 |
2605-1019T
|
|
| 3 | 2605-1019T | MAIN FRAME;BOOM SWING | 1 |
2605-1019U
|
|
| 3 | 2605-1019U | MAIN FRAME;BOOM SWING | 1 | ||
| 3 | 2605-1019W | MAIN FRAME;BOOM SWING | 1 | ||
| 3 | 2605-1019X | MAIN FRAME;BOOM SWING | 1 | ||
| 30 | S0556053 | BOLT M8X1.25X35 | 4 | ||
| 31 | S0504653 | BOLT M6X1.0X16 | 2 | ||
| 33 | S4013133 | NUT M20X2.5 | 4 | ||
| 34 | S4012933 | NUT M16X2.0 | 1 | ||
| 35 | S4012333 | NUT M6X1.0 | 23 | ||
| 37 | S5103103 | Шайба пружинная | 4 | ||
| 38 | S5102903 | Шайба пружинная | 25 | ||
| 39 | S5102703 | Шайба пружинная M12 | 2 | ||
| 3A | 2110-1196A | Втулка | 1 | ||
| 4 | 2142-1125 | GUARD;LAMP | 2 | ||
| 40 | S5102603 | Шайба пружинная M10 | 3 | ||
| 41 | S5102503 | Шайба пружинная M8 | 20 | ||
| 42 | S5102303 | Шайба пружинная M6 | 2 | ||
| 44 | 2114-1020 | Шайба плоская | 8 | ||
| 44 | 2114-1020 | Шайба плоская | 4 | ||
| 45 | S5010913 | WASHER;PLAIN M16 | 1 | ||
| 46 | S5010713 | WASHER;PLAIN M12 | 2 | ||
| 47 | S5010613 | WASHER;PLAIN M10 | 3 | ||
| 48 | S5010513 | WASHER;PLAIN M8 | 20 | ||
| 48 | S5010513 | WASHER;PLAIN M8 | 24 | ||
| 49 | S5010313 | WASHER;PLAIN M6 | 2 | ||
| 5 | 2412-1057B | PLATE;TOOL BOX | 1 |
2412-1057C
|
|
| 5 | 2412-1057C | PLATE;TOOL BOX | 1 | ||
| 50 | 2161-2367 | Стопор | 2 | ||
| 51 | 2114-1059D224 | Прокладка | 3 | ||
| 51 | 2114-1924 | Прокладка | 6 | ||
| 52 | 2160-1201D14 | BUSHING;RUBBER | 1 | ||
| 53 | 2161-1744 | Держатель | 1 |
2160-1004D49
|
|
| 53 | 2160-1004D49 | BUSHING;RUBBER | 2 | ||
| 54 | 2161-2349 | SPONGE | 2 | ||
| 55 | 2161-2353 | SPONGE | 1 |
2161-2353A
|
|
| 55 | 2161-2353A | SPONGE | 1 | ||
| 56 | 2621-3925A | COVER;UNDER | 1 |
2621-3925B
|
|
| 56 | 2621-3925B | COVER;UNDER | 1 |
2621-3925C
|
|
| 56 | 2621-3925C | COVER;UNDER | 1 | ||
| 57 | 2627-1204 | COVER;UNDER | 1 |
2627-1204A
|
|
| 57 | 2627-1204A | COVER;UNDER | 1 | ||
| 58 | 2161-2402 | SPONGE | 1 | ||
| 59 | S4012533 | NUT M8X1.25 | 4 | ||
| 6 | 2171-1085 | HINGE | 2 |
2171-1117
|
|
| 6 | 2171-1117 | HINGE | 2 | ||
| 60 | 2160-1004D38 | BUSHING;RUBBER | 1 | ||
| 61 | 2114-1059D211 | Прокладка | 3 | ||
| 62 | 621-02168 | COVER;UNDER | 1 | ||
| 62 | 621-02168A | COVER;UNDER | 1 | ||
| 7 | 2139-9074A | CABLE;WIRE | 1 | ||
| 8 | 2621-3857B | COVER;UNDER | 1 | ||
| 9 | 2621-3856 | COVER(1) | 1 |
2621-3856A
|
|
| 9 | 2621-3856A | COVER(1) | 1 |
