ELECTRIC PARTS(1) экскаватора гусеничного модели мини Doosan SOLAR 55-V
ELECTRIC PARTS(1) экскаватора гусеничного модели мини Doosan SOLAR 55-V со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1390
Наименование:ELECTRIC PARTS(1)
Версия:2021-7157EF

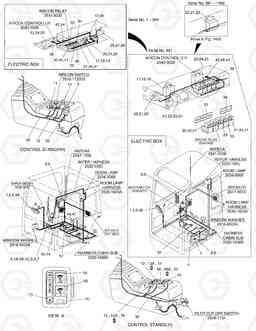

ELECTRIC PARTS(1) SOLAR 55-V
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 2500-1223 | ELECTRIC ASS'Y-OPTION | - | ||
| 1 | 2539-1075 | PANEL;GAUGE | 1 | ||
| 10 | 2545-9009 | LIGHTER;CIGAR | 1 |
545-00002
|
|
| 10 | 545-00002 | LIGHTER;CIGAR | 1 | ||
| 11 | 2549-1132D3 | SWITCH;BLOWER | 1 | ||
| 12 | 2549-1132D1 | SWITCH;LAMP | 1 | ||
| 13 | 2549-9114 | SWITCH;WIPER & WASHER | 1 | ||
| 13A | K9000354 | LAMP;PILOT | 1 | ||
| 14 | 2190-2036D14 | INSERT;WIPER & WASHER | 1 | ||
| 15 | 2549-9115 | SWITCH;ROCKER(12V) | 1 | ||
| 15A | K9000354 | LAMP;PILOT | 1 | ||
| 16 | 2190-2036D1 | INSERT;BREAKER | 1 | ||
| 17 | 2543-6026 | CONTROLLER;QOS | 1 |
537-00038
|
|
| 17 | 537-00038 | CONTROLLER;QOS | 1 | ||
| 18 | S3450973 | SCREW M6X1.0X16 | 1 | ||
| 19 | S5102303 | Шайба пружинная M6 | 1 | ||
| 1A | 2528-6057 | GAUGE;WATER TEMP | 1 | ||
| 1B | 2528-6058 | GAUGE;FUEL | 1 | ||
| 1C | 2528-9040 | METER;HOUR | 1 | ||
| 1D | S862103H | BULB 12V 3.4W | 8 | ||
| 2 | S3450973 | SCREW M6X1.0X16 | 4 | ||
| 20 | 2544-6022 | RELAY;GROW | 1 | ||
| 21 | S3450943 | SCREW M6X1.0X10 | 2 | ||
| 22 | S5102303 | Шайба пружинная M6 | 2 | ||
| 23 | 2543-9030 | UNIT;CONTROL | 1 | ||
| 24 | S3450953 | SCREW M6X1.0X12 | 2 | ||
| 25 | S5102303 | Шайба пружинная M6 | 2 | ||
| 26 | 2516-1104 | BUZZER;PILOT | 1 | ||
| 27 | S3450943 | SCREW M6X1.0X10 | 2 | ||
| 28 | S5102303 | Шайба пружинная M6 | 2 | ||
| 29 | 2544-9019 | RELAY;HORN | 1 | ||
| 29 | 2544-9032 | Реле | 1 | ||
| 3 | 2549-1152 | SWITCH;STARTER | 1 | ||
| 3 | 2549-6059 | SWITCH;STARTER | 1 |
2549-1152
|
|
| 30 | 2544-9019 | RELAY;HORN | 1 | ||
| 30 | 2544-9032 | Реле | 1 | ||
| 31 | 2544-9019 | RELAY;HORN | 1 | ||
| 31 | 2544-9032 | Реле | 1 | ||
| 32 | 2544-9019 | RELAY;HORN | 1 | ||
| 32 | 2544-9032 | Реле | 1 | ||
| 33 | 2190-2037D24 | PLATE;NAME | 1 | ||
| 34 | 2190-2037D25 | PALTE;NAME | 1 | ||
| 35 | 2530-1636 | HARNESS;R.H STAND | 1 | ||
| 36 | 2530-1637A | HARNESS;STAND(L.H.) | 1 | ||
| 36 | 2530-1637B | HARNESS;L.H STAND | 1 | ||
| 37 | 2530-1634C | Электрика кабины | 1 | ||
| 37 | 2530-1634E | Электрика кабины | 1 | ||
| 37 | 2530-1634G | Электрика кабины | 1 | ||
| 37 | 2530-1634H | Электрика кабины | 1 | ||
| 38 | 2530-1635A | HARNESS;ELECTRIC BOX | 1 | ||
| 38 | 2530-1635B | HARNESS;ELECTRIC BOX | 1 | ||
| 38 | 2530-1635C | HARNESS;ELECTRIC BOX | 1 | ||
| 39 | 2530-1427 | HARNESS;STARTER SWITCH | 1 | ||
| 3A | 2172-1134 | KEY;STARTER SWITCH | 1 | ||
| 3A | 2172-6011 | KEY;STARTER SWITCH | 1 |
2172-1134
|
|
| 4 | 2510-1008 | BOX;FUSE | 1 | ||
| 40 | S3450823 | SCREW M5X0.8X10 | 2 | ||
| 41 | S5100203 | Шайба пружинная M5 | 2 | ||
| 42 | 2124-1509D2 | CLIP D18/M8 | 2 | ||
| 43 | 2124-1509D3 | CLIP D24/M8 | 1 | ||
| 44 | 2121-1305 | NUT M8X1.25 | 3 | ||
| 45 | 2621-9002 | Крышка | 2 | ||
| 45 | 2621-9002 | Крышка | 1 | ||
| 46 | S0508653 | BOLT M8X1.25X16 | 1 | ||
| 46 | S0509053 | BOLT M8X1.25X25 | 1 | ||
| 47 | S5102503 | Шайба пружинная M8 | 1 | ||
| 48 | S5010313 | WASHER;PLAIN M6 | 4 | ||
| 49 | 2549-9115 | SWITCH;ROCKER(12V) | 1 | ||
| 49A | K9000354 | LAMP;PILOT | 1 | ||
| 4A | 2527-1016 | FUSE;BLADE 10A | 10 | ||
| 4B | 2527-1017 | FUSE;BLADE 15A | 5 | ||
| 4C | 2527-1018 | FUSE;BLADE 20A | 3 | ||
| 5 | S3450983 | SCREW M6X1.0X20 | 2 | ||
| 50 | 2190-2036D13 | INSERT;HIGH SPEED | 1 | ||
| 51 | 2544-6021 | RELAY;STARTER | 1 | ||
| 52 | S0508653 | BOLT M8X1.25X16 | 2 | ||
| 53 | S5102503 | Шайба пружинная M8 | 2 | ||
| 54 | S5010513 | WASHER;PLAIN M8 | 2 | ||
| 6 | S5102303 | Шайба пружинная M6 | 6 | ||
| 7 | 2190-3313 | PLATE;NAME(FUSE BOX) | 1 | ||
| 7 | 2190-3313A | PLATE;NAME(FUSE BOX) | 1 | ||
| 8 | 2541-9019 | CAR STEREO | 1 | ||
| 9 | 2541-6009 | FRAME;CAR STEREO | 1 |
