Поршень экскаватора колесного модели III Doosan SOLAR 170W-3
Поршень экскаватора колесного модели III Doosan SOLAR 170W-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:005
Наименование:PISTON
Версия:2021-7090EF

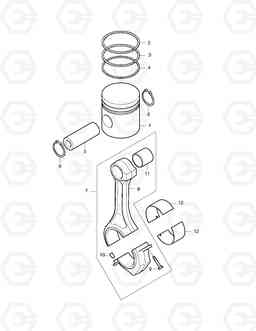

PISTON SOLAR 170W-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 65.02501-0074 | Поршень | 6 | ||
| 10 | 65.91301-0010 | PIN;DOWEL | 12 | ||
| 11 | 65.02405-0014 | BUSH;SMALL END | 6 | ||
| 11 | 65.02405-0015B | BUSH;SMALL END | 6 | ||
| 12 | 65.02410-0010 | BEARING;CON-ROD(STD) | 6 | ||
| 12 | 65.02410-0011 | METAL;CONNECTING ROD 0.25 | 6 | ||
| 12 | 65.02410-0012 | METAL;CONNECTING ROD 0.5 | 6 | ||
| 12 | 65.02410-0013 | METAL;CONNECTING ROD 0.75 | 6 | ||
| 12 | 65.02410-0014 | METAL;CONNECTING ROD 1.00 | 6 | ||
| 12 | 65.02410-6073 | METAL;CONNECTING ROD STD | 6 |
65.02410-0010
|
|
| 12 | 65.02410-6074 | METAL;CONNECTING ROD 0.25 | 6 |
65.02410-0011
|
|
| 12 | 65.02410-6075 | METAL;CONNECTING ROD 0.5 | 6 |
65.02410-0012
|
|
| 12 | 65.02410-6076 | METAL;CONNECTING ROD 0.75 | 6 |
65.02410-0013
|
|
| 12 | 65.02410-6077 | METAL;CONNECTING ROD 1.00 | 6 |
65.02410-0014
|
|
| 2 | 65.02503-0054 | RING;TOP 111X3.5 | 6 | ||
| 3 | 65.02503-0091 | RING;SECOND 111X3.5 | 6 | ||
| 4 | 65.02503-0101 | RING;OIL 111X4 | 6 |
65.02503-0115
|
|
| 4 | 65.02503-0115 | RING;OIL 111X4 | 6 | ||
| 5 | 65.02502-0010 | PIN;PISTON 42X20X95 | 6 | ||
| 6 | 06.29020-0126 | RING;SNAP 42X1.75 | 12 | ||
| 7 | 65.02401-6101 | CONNECTING ROD ASS'Y | 6 |
65.02401-6101C
|
|
| 7 | 65.02401-6101C | CONNECTING ROD ASS'Y | 6 | ||
| 8 | 65.02401-0030 | ROD;CONNECTING | 6 | ||
| 9 | 65.90020-0009 | BOLT;CONNECTING ROD | 12 | ||
| 9 | 65.90020-0009C | BOLT;CONNECTING ROD | 12 |
