INTERMEDIATE GEAR экскаватора колесного модели III Doosan SOLAR 170W-3
INTERMEDIATE GEAR экскаватора колесного модели III Doosan SOLAR 170W-3 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:008
Наименование:INTERMEDIATE GEAR
Версия:2021-7090EF

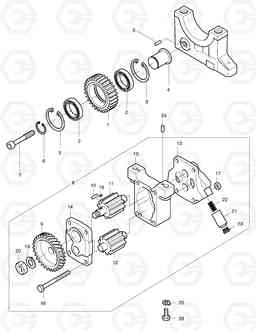

INTERMEDIATE GEAR SOLAR 170W-3
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 65.05200-6034 | Промежуточная шестерня в сборе | 1 | ||
| 1 | 65.05204-0036 | GEAR;IDLE | 1 | ||
| 10 | 65.05102-0014 | HOUSING;OIL PUMP | 1 | ||
| 11 | 65.05104-5004 | GEAR;PUMP | 1 | ||
| 12 | 65.05104-5003 | GEAR | 1 | ||
| 13 | 64.05103-5012 | OIL PUMP COVER ASS'Y(RR) | 1 | ||
| 14 | 65.05103-5015 | OIL PUMP COVER(FRONT) | 1 | ||
| 15 | 06.22022-0909 | Палец | 4 | ||
| 15 | 06.22022-0909 | Палец | - | ||
| 16 | 06.01013-9118 | BOLT;HEX. M8X65 | 4 | ||
| 17 | 65.90510-0012 | Гайка | 4 | ||
| 18 | 06.29141-0207 | KEY;WOODRUFF | 1 | ||
| 19 | 06.16050-0311 | WASHER;LOCK | 1 | ||
| 2 | 06.31420-0314 | BEARING;BALL | 2 | ||
| 20 | 06.11053-9217 | NUT;HEX. | 1 | ||
| 21 | 65.05410-0025 | PLUNGER;VALVE | 1 | ||
| 22 | 65.97601-0110 | SPRING;COMPRESSION | 1 | ||
| 23 | 65.90310-0104 | SCREW;PLUG | 1 | ||
| 24 | 06.22022-0907 | PIN;DOWEL 6M6X10 | 2 | ||
| 25 | 65.90801-0038 | WASHER;LOCK | 2 | ||
| 26 | 06.01013-9215 | BOLT;HEX. M10X50 | 2 | ||
| 3 | 06.29020-0132 | RING;SNAP | 2 | ||
| 4 | 65.05205-0018 | PIN;IDLE GEAR | 1 | ||
| 5 | 06.22220-0905 | PIN;SPIRAL LOCK 4X10 | 1 | ||
| 5 | 06.22220-0905 | PIN;SPIRAL LOCK 4X10 | - | ||
| 6 | 06.29010-0125 | RING;SNAP 30X2 | 1 | ||
| 7 | 65.90030-0009 | BOLT;SOCKET HEAD M10X60 | 1 | ||
| 8 | 65.05100-6022 | OIL PUMP ASS'Y | 1 | ||
| 9 | 65.05201-0037 | GEAR;OIL PUMP DRIVE | 1 |
