Каталог запчастей
-
Doosan
-
SOLAR 200W-V
- ELECTRIC PARTS(7)-RELATED PARTS
ELECTRIC PARTS(7)-RELATED PARTS экскаватора колесного модели V Doosan SOLAR 200W-V
ELECTRIC PARTS(7)-RELATED PARTS экскаватора колесного модели V Doosan SOLAR 200W-V со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1660
Наименование:ELECTRIC PARTS(7)-RELATED PARTS
Версия:2021-7152EF

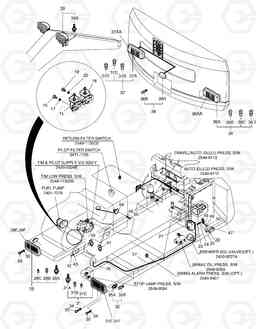

ELECTRIC PARTS(7)-RELATED PARTS SOLAR 200W-V
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 2500-1209 | ELECTRIC PARTS | - | ||
| 15 | 2544-1022 | RELAY;STARTER | 1 | ||
| 16 | S0504453 | BOLT M6X1.0X12 | 2 | ||
| 17 | S5102303 | Шайба пружинная M6 | 2 | ||
| 18 | 2544-1022 | RELAY;STARTER | 1 | ||
| 19 | S0504453 | BOLT M6X1.0X12 | 2 | ||
| 20 | S5102303 | Шайба пружинная M6 | 2 | ||
| 21 | 2554-9005A | WINDOW-WASHER | 1 | ||
| 22 | 2195-1534 | Кронштейн | 1 | ||
| 23 | S0504453 | BOLT M6X1.0X12 | 2 | ||
| 24 | S5102303 | Шайба пружинная M6 | 2 | ||
| 25 | S5010313 | WASHER;PLAIN M6 | 2 | ||
| 26 | 2415-1018 | ADAPTER;HOSE | 1 | ||
| 27 | 2185-1681D1 | TUBE;CORRUGATE | 1 | ||
| 28 | 2534-1167 | LAMP ASS'Y;FRONT COMBI(R.H.) | 1 | ||
| 28 | 2534-1167A | LAMP;FRONT COMBI (RH) | 1 | ||
| 28A | 2534-6032 | CASE;LAMP | 1 | ||
| 28B | 2515-1022D1 | BULB;HALOGEN | 1 | ||
| 28C | S861203H | BULB 24V 3W | 1 | ||
| 28D | 2534-1163 | LAMP;FRONT T/S 24V 21W | 1 | ||
| 28D | 2534-1163A | LAMP;TURN SIGNAL | 1 | ||
| 28DA | 2534-6031 | CASE;T/S LAMP | 1 | ||
| 28DA | 534-00012 | CASE;T/S LAMP | 1 | ||
| 28E | 2530-1652 | HARNESS;FRONT LAMP | 1 | ||
| 28F | 2621-3792A | COVER;LAMP(R.H.) | 1 | ||
| 28G | 195-00197 | Кронштейн | 1 | ||
| 28H | S3450593 | Болт | 1 | ||
| 28I | S5100103 | Шайба пружинная M4 | 1 | ||
| 28J | S5000113 | WASHER;PLAIN M4 | 1 | ||
| 29 | S3450983 | SCREW M6X1.0X20 | 4 | ||
| 30 | S5102303 | Шайба пружинная M6 | 4 | ||
| 31 | 2534-1168 | LAMP ASS'Y;FRONT COMBI(L.H.) | 1 | ||
| 31 | 2534-1168A | LAMP;FRONT COMBI (LH) | 1 | ||
| 31A | 2534-6032 | CASE;LAMP | 1 | ||
| 31B | 2515-1022D1 | BULB;HALOGEN | 1 | ||
| 31C | S861203H | BULB 24V 3W | 1 | ||
| 31D | 2534-1163 | LAMP;FRONT T/S 24V 21W | 1 | ||
| 31D | 2534-1163A | LAMP;TURN SIGNAL | 1 | ||
| 31DA | 2534-6031 | CASE;T/S LAMP | 1 | ||
| 31DA | 534-00012 | CASE;T/S LAMP | 1 | ||
| 31E | 2530-1652 | HARNESS;FRONT LAMP | 1 | ||
| 31F | 2621-3791A | COVER;LAMP(L.H.) | 1 | ||
| 31G | 195-00197 | Кронштейн | 1 | ||
| 31H | S3450593 | Болт | 1 | ||
| 31I | S5100103 | Шайба пружинная M4 | 1 | ||
| 31J | S5000113 | WASHER;PLAIN M4 | 1 | ||
| 32 | S3450983 | SCREW M6X1.0X20 | 2 | ||
| 33 | S3451003 | SCREW M6X1.0X30 | 2 | ||
| 34 | S5102303 | Шайба пружинная M6 | 4 | ||
| 35 | 2534-9069 | LAMP;SIDE TURN SIGNAL | 1 | ||
| 35A | 2534-6030 | CASE;LAMP | 1 | ||
| 35B | 2515-1021D5 | BULB 24V 5W | 1 | ||
| 36 | 2534-1158A | LAMP ASS'Y;REAR COMBI(R.H.) | 1 |
2534-1158B
|
|
| 36 | 2534-1158B | LAMP ASS'Y;REAR COMBI(R.H.) | 1 |
2534-1158C
|
|
| 36 | 2534-1158C | LAMP;REAR COMB(R.H) | 1 | ||
| 36A | 2534-6029 | CASE;LAMP | 1 | ||
| 36AA | 534-00032 | LENS;REAR LAMP | 1 | ||
| 36B | S864221H | BULB 24V 21W | 4 | ||
| 36B | S864221H | BULB 24V 21W | 2 | ||
| 36C | S863210H | BULB(POSITION)24V 10W | 1 | ||
| 36D | S863212H | BULB 24V 12W | 2 | ||
| 37 | 2534-1159A | LAMP ASS'Y;REAR COMBI(L.H.) | 1 |
2534-1159B
|
|
| 37 | 2534-1159B | LAMP ASS'Y;REAR COMBI(L.H.) | 1 |
2534-1159C
|
|
| 37 | 2534-1159C | LAMP;REAR COMB(L.H) | 1 | ||
| 37A | 2534-6028 | CASE;LAMP | 1 | ||
| 37AA | 534-00032 | LENS;REAR LAMP | 1 | ||
| 37B | S864221H | BULB 24V 21W | 4 | ||
| 37B | S864221H | BULB 24V 21W | 2 | ||
| 37C | S863210H | BULB(POSITION)24V 10W | 1 | ||
| 37D | S863212H | BULB 24V 12W | 2 | ||
| 38 | 2534-1139A | LAMP;LICENCE | 1 | ||
| 38A | 2534-6019 | CASE;LAMP | 1 | ||
| 38B | 2515-1021D5 | BULB 24V 5W | 1 | ||
| 39 | 2534-1160 | Фара | 2 | ||
| 39A | 2515-1022D1 | BULB;HALOGEN | 1 | ||
| 40 | 2516-9018 | HORN(H.F) | 1 | ||
| 40 | 516-00005 | HORN(H.F) | 1 | ||
| 41 | 2516-9019 | HORN(L.F) | 1 | ||
| 41 | 516-00006 | HORN(L.F) | 1 | ||
| 42 | S0508653 | BOLT M8X1.25X16 | 2 | ||
| 43 | S5102503 | Шайба пружинная M8 | 2 | ||
| 47 | 2516-1124 | BUZZER;ALARM | 1 | ||
| 48 | S0508453 | BOLT M8X1.25X12 | 2 | ||
| 49 | S5102503 | Шайба пружинная M8 | 2 | ||
| 50 | S5010513 | WASHER;PLAIN M8 | 2 | ||
| 54 | 2547-9035 | SENSOR;FUEL | 1 |
2547-9035A
|
|
| 54 | 2547-9035A | SENSOR;FUEL | 1 | ||
| 55 | S3450833 | SCREW M5X0.8X12 | 6 | ||
| 56 | S5100203 | Шайба пружинная M5 | 6 |
