Каталог запчастей
-
Doosan
-
SOLAR 55W-V SUPER
- ENGINE MOUNTING(2)-RADIATOR

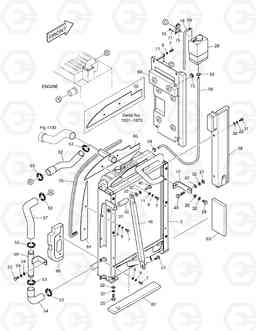

ENGINE MOUNTING(2)-RADIATOR экскаватора колесного модели V Doosan SOLAR 55W-V SUPER
ENGINE MOUNTING(2)-RADIATOR экскаватора колесного модели V Doosan SOLAR 55W-V SUPER со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1120
Наименование:ENGINE MOUNTING(2)-RADIATOR
Версия:021-00035EF
ENGINE MOUNTING(2)-RADIATOR SOLAR 55W-V SUPER
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 201-00177 | ENGINE MOUNTING ASS'Y | - | ||
| - | 201-00177 | ENGINE MOUNTING ASS'Y | - | ||
| - | 201-00177C | ENGINE MOUNTING ASS'Y | - | ||
| - | 201-00177C | ENGINE MOUNTING ASS'Y | - | ||
| 2 | 202-00105B | Радиатор в сборе | 1 |
K1000345
|
|
| 2 | 202-00105C | Радиатор в сборе | 1 |
K1000345
|
|
| 2 | K1000345 | Радиатор в сборе | 1 |
K1000345A
|
|
| 2 | K1000345 | Радиатор в сборе | 1 |
K1000345A
|
|
| 2 | K1000345A | Радиатор в сборе | 1 |
K1000345B
|
|
| 2 | K1000345A | Радиатор в сборе | 1 |
K1000345B
|
|
| 2 | K1000345B | Радиатор в сборе | 1 |
K1000345C
|
|
| 2 | K1000345B | Радиатор в сборе | 1 |
K1000345C
|
|
| 2 | K1000345C | Радиатор в сборе | 1 | ||
| 2 | K1000345C | Радиатор в сборе | 1 | ||
| 21 | S4012733 | NUT M12X1.75 | 2 | ||
| 21 | S4012733 | NUT M12X1.75 | 2 | ||
| 22 | 2114-1058D72 | Шайба плоская | 9 | ||
| 22 | 2114-1058D72 | Шайба плоская | 9 | ||
| 23 | S0511853 | BOLT M10X1.5X20 | 1 | ||
| 23 | S0511853 | Болт | 1 | ||
| 23 | S0511853 | BOLT M10X1.5X20 | 1 | ||
| 23 | S0511853 | Болт | 1 | ||
| 24 | S5102603 | Шайба пружинная M10 | 1 | ||
| 24 | S5102603 | Шайба пружинная M10 | 1 | ||
| 25 | S0515353 | BOLT M12X1.75X35 | 4 | ||
| 25 | S0515353 | BOLT M12X1.75X35 | 4 | ||
| 28 | 470-00107 | TANK;RESERVOIR | 1 |
K1003355
|
|
| 28 | 470-00107 | TANK;RESERVOIR | 1 |
K1003355
|
|
| 28 | K1003355 | TANK;RESERVOIR | 1 |
K1003355A
|
|
| 28 | K1003355 | TANK;RESERVOIR | 1 |
K1003355A
|
|
| 28 | K1003355A | TANK;RESERVOIR | 1 | ||
| 28 | K1003355A | TANK;RESERVOIR | 1 | ||
| 29 | S0515053 | BOLT M12X1.75X25 | 1 | ||
| 29 | S0515053 | BOLT M12X1.75X25 | 1 | ||
| 31 | S0514953 | BOLT M12X1.75X22 | 2 | ||
| 31 | S0514953 | BOLT M12X1.75X22 | 2 | ||
| 32 | S5102703 | Шайба пружинная M12 | 9 | ||
| 32 | S5102703 | Шайба пружинная M12 | 9 | ||
| 34 | S5010613 | WASHER;PLAIN M10 | 1 | ||
| 34 | S5010613 | WASHER;PLAIN M10 | 1 | ||
| 40 | S0561953 | BOLT M12X1.75X110 | 1 | ||
| 40 | S0561953 | BOLT M12X1.75X110 | 1 | ||
| 46 | 145-00022B | STAY;1 | 1 | ||
| 46 | 145-00022B | STAY;1 | 1 | ||
| 47 | 145-00071 | STAY 2 | 1 | ||
| 47 | 145-00071 | STAY 2 | 1 | ||
| 49 | S0560953 | BOLT M12X1.75X60 | 1 | ||
| 49 | S0560953 | BOLT M12X1.75X60 | 1 | ||
| 50 | DS5101026 | Вставка | 1 | ||
| 50 | DS5101026 | Вставка | 1 | ||
| 51 | 2120-2196D2 | BOLT;SET M10X1.5X25 | 1 | ||
| 51 | 2120-2196D2 | BOLT;SET M10X1.5X25 | 1 | ||
| 52 | 185-00104A | HOSE;WATER | 1 | ||
| 52 | 185-00104A | HOSE;WATER | 1 | ||
| 53 | S8450035 | CLAMP;HOSE | 6 | ||
| 53 | S8450035 | CLAMP;HOSE | 6 | ||
| 54 | 185-00105A | HOSE;IN | 1 | ||
| 54 | 185-00105A | HOSE;IN | 1 | ||
| 55 | 140-01324 | PIPE;WATER | 1 | ||
| 55 | 140-01324 | PIPE;WATER | 1 | ||
| 57 | 185-00106B | HOSE;WATER | 1 | ||
| 57 | 185-00106B | HOSE;WATER | 1 | ||
| 58 | 2185-1363 | HOSE;WATER | 1 | ||
| 58 | 2185-1363 | HOSE;WATER | 1 | ||
| 59 | S8450006 | CLAMP;HOSE | 3 | ||
| 59 | S8450006 | CLAMP;HOSE | 3 | ||
| 62 | 161-00278 | FOAM;POLYURETHANE | 1 | ||
| 62 | 161-00278 | FOAM;POLYURETHANE | 1 | ||
| 63 | 2161-1911D20 | FOAM;POLYURETHANE | 1 | ||
| 63 | 2161-1911D20 | FOAM;POLYURETHANE | 1 | ||
| 64 | 159-00108B | PLATE;BAFFLE | 1 | ||
| 64 | 159-00108B | PLATE;BAFFLE | 1 | ||
| 64 | 159-00240A | PLATE;BAFFLE | 1 |
159-00108B
|
|
| 64 | 159-00240A | PLATE;BAFFLE | 1 |
159-00108B
|
|
| 65 | 159-00239A | PLATE;BAFFLE | 1 | ||
| 65 | 159-00239A | PLATE;BAFFLE | 1 | ||
| 65 | K1005352A | PLATE;BAFFLE | 1 | ||
| 65 | K1005352A | PLATE;BAFFLE | 1 | ||
| 66 | 159-00235 | PLATE;BAFFLE | 1 | ||
| 66 | 159-00235 | PLATE;BAFFLE | 1 | ||
| 68 | 621-02288A | COVER;BAFFLE | 1 | ||
| 68 | 621Y02288A | COVER;BAFFLE | 1 | ||
| 69 | 621-02287A | COVER;BAFFLE | 1 | ||
| 69 | 621Y02287A | COVER;BAFFLE | 1 | ||
| 7 | S0508853 | BOLT M8X1.25X20 | 10 | ||
| 7 | S0508853 | BOLT M8X1.25X20 | 10 | ||
| 70 | 162-00029A | STRIP;WEATHER | 1 | ||
| 70 | 162-00029A | STRIP;WEATHER | 1 | ||
| 71 | 2114-1058D29 | Шайба | 6 | ||
| 71 | 2114-1058D29 | Шайба | 6 | ||
| 73 | 2160-1004D25 | BUSHING;RUBBER | 1 | ||
| 73 | 2160-1004D25 | BUSHING;RUBBER | 1 | ||
| 75 | 2195-1534 | Кронштейн | 1 | ||
| 75 | 2195-1534 | Кронштейн | 1 | ||
| 76 | S0504453 | BOLT M6X1.0X12 | 2 | ||
| 76 | S0504453 | BOLT M6X1.0X12 | 2 | ||
| 77 | S5010313 | WASHER;PLAIN M6 | 2 | ||
| 77 | S5010313 | WASHER;PLAIN M6 | 2 | ||
| 78 | 2185-1774 | Шланг | 1 | ||
| 78 | 2185-1774 | Шланг | 1 | ||
| 8 | S5102503 | Шайба пружинная M8 | 10 | ||
| 8 | S5102503 | Шайба пружинная M8 | 10 | ||
| 9 | S5010513 | WASHER;PLAIN M8 | 4 | ||
| 9 | S5010513 | WASHER;PLAIN M8 | 4 |
