AXLE & DRIVE SHAFT ASS'Y-LOCAL колесного погрузчика модели III Doosan MEGA 300-III '0
AXLE & DRIVE SHAFT ASS'Y-LOCAL колесного погрузчика модели III Doosan MEGA 300-III '0 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1150
Наименование:AXLE & DRIVE SHAFT ASS'Y-LOCAL
Версия:4021-7126EF

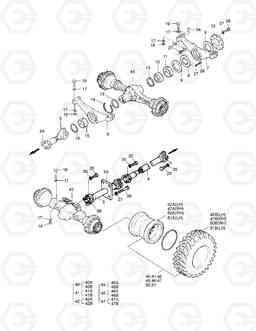

AXLE & DRIVE SHAFT ASS'Y-LOCAL MEGA 300-III '0
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 4210-4006F1 | AXLE & SHAFT ASS'Y | - | ||
| 10 | 4112-4013B | SHAFT;PIVOT | 1 | ||
| 11 | 4110-4031 | Втулка | 1 | ||
| 12 | 4621-4226 | Крышка | 1 | ||
| 12 | 4621-4226A | Крышка | 1 | ||
| 13 | S8200672 | SEAL;OIL | 3 | ||
| 14 | 4114-4053 | RING;RETAINING | 1 | ||
| 15 | 4110-4024A | Втулка | 1 | ||
| 16 | 4120-1460 | BOLT M24X2.0X210 | 8 | ||
| 17 | 4114-4079 | WASHER;HARD | 32 | ||
| 18 | S4033333 | NUT M24X2.0 | 16 | ||
| 19 | S0776261 | BOLT M24X2.0X160 | 8 | ||
| 20 | 4120-4029 | Болт | 12 | ||
| 20 | 4120-4029 | Болт | 20 | ||
| 26 | S0766661 | BOLT M16X1.5X120 | 8 | ||
| 27 | S5102901 | Шайба пружинная M16 | 28 | ||
| 28 | S0565261 | BOLT M16X2.0X50 | 16 | ||
| 3 | 4260-9021 | PROP SHAFT;FRONT | 1 | ||
| 34 | 4123-2275 | PIN;DOWEL D30X80 | 2 | ||
| 34 | S5711982 | PIN;PARALLEL | 2 | ||
| 35 | 4114-1686 | Шайба пружинная | 12 | ||
| 35 | 4114-1686 | Шайба пружинная | 20 | ||
| 39 | S0521561 | BOLT M16X2.0X45 | 4 | ||
| 3A | 4260-9021-02 | Подшипник промежуточный | 1 | ||
| 3B | 4260-9021-04 | JOINT BEARING | 2 | ||
| 4 | 4260-9020 | PROP SHAFT;CENTER | 1 | ||
| 40 | 4276-1037 | WHEEL ASS'Y(OPTION) 20.5X25 | 2 | ||
| 40A | 4278-9027 | RIM 17.00X25 | 1 | ||
| 40B | 4276-9016 | TYRE 20.5X25 | 1 | ||
| 41 | 4276-1033 | WHEEL ASS'Y(OPTION) 23.5X25XL3 | 2 | ||
| 41A | 4278-9026 | RIM 19.5X25 | 1 | ||
| 41B | 4276-9030 | TYRE 23.5X25(L3) | 1 | ||
| 42 | 4276-1041A | WHEEL ASS'Y(STD.) 23.5X25X16PR L3 | 2 | ||
| 42A | 4278-9026 | RIM 19.5X25 | 1 | ||
| 42B | 4276-9034 | TYRE 23.5X25X16PR L3 | 1 | ||
| 43 | 4211-9023A | Мост передний | 1 |
4211-9023B
|
|
| 43 | 4211-9023B | Мост передний | 1 | ||
| 44 | 4211-9024A | Мост задний (ось) | 1 | ||
| 44 | 4211-9024B | Мост задний (ось) | 1 | ||
| 45 | 4276-1038 | WHEEL ASS'Y(OPTION) | 2 | ||
| 45A | 4278-9027 | RIM 17.00X25 | 1 | ||
| 45B | 4276-9016 | TYRE 20.5X25 | 1 | ||
| 46 | 4276-1034 | WHEEL ASS'Y(OPTION) | 2 | ||
| 46A | 4278-9026 | RIM 19.5X25 | 1 | ||
| 46B | 4276-9030 | TYRE 23.5X25(L3) | 1 | ||
| 47 | 4276-1040A | WHEEL ASS'Y(STD.) | 2 | ||
| 47A | 4278-9026 | RIM 19.5X25 | 1 | ||
| 47B | 4276-9034 | TYRE 23.5X25X16PR L3 | 1 | ||
| 5 | 4260-9022 | PROP SHAFT;REAR | 1 | ||
| 5 | 4260-9022A | PROP SHAFT;REAR | 1 | ||
| 50 | 4276-1040B | WHEEL ASS'Y(R.H) | 2 | ||
| 50A | 4278-9026 | RIM 19.5X25 | 1 | ||
| 50B | 4276-9034 | TYRE 23.5X25X16PR L3 | 1 | ||
| 51 | 4276-1041B | WHEEL ASS'Y(L.H) | 2 | ||
| 51A | 4278-9026 | RIM 19.5X25 | 1 | ||
| 51B | 4276-9034 | TYRE 23.5X25X16PR L3 | 1 | ||
| 5A | 100-6C | JOURNAL BEARING | 2 | ||
| 5A | 100-7C | JOURNAL BEARING | 2 | ||
| 6 | 4195-4500A | PIVOT BEARING;FRONT | 1 | ||
| 6 | 4195-4500B | PIVOT BEARING;FRONT | 1 | ||
| 7 | 4195-4501C | PIVOT BEARING;REAR | 1 | ||
| 7 | 4195-4501E | PIVOT BEARING;REAR | 1 | ||
| 8 | 4114-4080A | DISC | 1 | ||
| 8 | 4114-4080B | DISC | 1 | ||
| 9 | 4114-4081A | Шайба упорная | 2 |
