Крышка двигателя колесного погрузчика модели V Doosan MEGA160TC
Крышка двигателя колесного погрузчика модели V Doosan MEGA160TC со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1300
Наименование:ENGINE COVER
Версия:021-00017EF

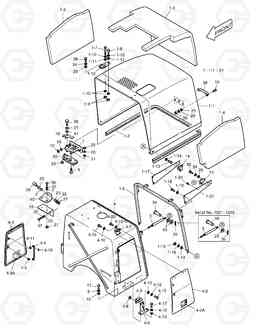

ENGINE COVER MEGA160TC
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 4627-1662 | COVER ASS'Y | - | ||
| 1 | 4627-1680C | BONNET ASS'Y | 1 |
4627-1680E
|
|
| 1 | 4627-1680G | BONNET ASS'Y | 1 | ||
| 1-1 | 624-01060 | BONNET | 1 | ||
| 1-10 | S5102603 | Шайба пружинная M10 | 8 | ||
| 1-11 | S5010613 | WASHER;PLAIN M10 | 4 | ||
| 1-12 | 171-00001A | HINGE | 2 | ||
| 1-13 | S0509053 | BOLT M8X1.25X25 | 2 | ||
| 1-14 | S5010513 | WASHER;PLAIN M8 | 4 | ||
| 1-15 | S4012533 | NUT M8X1.25 | 2 | ||
| 1-16 | S5102503 | Шайба пружинная M8 | 2 | ||
| 1-17 | 621-00028A | Пластина | 1 | ||
| 1-18 | S0508853 | BOLT M8X1.25X20 | 4 | ||
| 1-19 | 2114-1058D56 | Шайба | 4 | ||
| 1-2 | 1.162-00001 | RUBBER;CUSHION | 1 | ||
| 1-20 | S3640563 | SCREW;TAPPING | 6 | ||
| 1-21 | 621-00081A | Пластина | 1 | ||
| 1-6 | 4627-1898 | Пластина | 1 |
4627-1898A
|
|
| 1-6 | 4627-1898A | Пластина | 1 | ||
| 1-7 | S0558853 | BOLT M10X1.5X65 | 2 | ||
| 1-8 | S0558353 | BOLT M10X1.5X40 | 2 | ||
| 1-9 | S4012633 | NUT M10X1.5 | 4 | ||
| 10 | S5010713 | WASHER;PLAIN M12 | 4 | ||
| 11 | S0515353 | BOLT M12X1.75X35 | 4 | ||
| 12 | S4012633 | NUT M10X1.5 | 2 | ||
| 13 | 4197-2442 | BRACKET;L.H | 1 | ||
| 14 | 4197-2443 | BRACKET;R.H | 1 | ||
| 15 | 195-01079 | Кронштейн | 1 | ||
| 19 | S3450991 | SCREW M6X1.0X25 | 2 | ||
| 2 | 2114-1058D29 | Шайба | 3 | ||
| 20 | S5102303 | Шайба пружинная M6 | 4 | ||
| 21 | S5010313 | WASHER;PLAIN M6 | 5 | ||
| 22 | S5102503 | Шайба пружинная M8 | 5 | ||
| 23 | S5010513 | WASHER;PLAIN M8 | 8 | ||
| 23 | S5010513 | WASHER;PLAIN M8 | 4 | ||
| 24 | S5102603 | Шайба пружинная M10 | 12 | ||
| 25 | S5010613 | WASHER;PLAIN M10 | 6 | ||
| 26 | 2142-1094 | STRIKER | 1 | ||
| 27 | S4012533 | NUT M8X1.25 | 4 | ||
| 28 | S0553853 | BOLT M6X1.0X60 | 1 | ||
| 29 | 2114-1058D45 | Шайба | 4 | ||
| 3 | 4440-9352B | GAS SPRING P=70K | 2 | ||
| 30 | 2143-1003 | LATCH | 1 |
8T2585
|
|
| 32 | S0512053 | BOLT M10X1.5X25 | 4 | ||
| 33 | S4012333 | NUT M6X1.0 | 5 | ||
| 34 | S5760231 | Палец | 4 | ||
| 35 | S5735241 | PIN;SPLIT | 4 | ||
| 36 | S0512053 | BOLT M10X1.5X25 | 4 | ||
| 37 | S0555953 | BOLT M8X1.25X30 | 2 | ||
| 38 | 2172-9025 | HANDLE | 1 |
987512
|
|
| 39 | S0509053 | BOLT M8X1.25X25 | 2 | ||
| 4 | 4627-1924G | E/G COVER ASS'Y | 1 |
4627-1924H
|
|
| 4 | 4627-1924H | E/G COVER ASS'Y | 1 | ||
| 4-10 | S5102503 | Шайба пружинная M8 | 8 | ||
| 4-11 | S5010513 | WASHER;PLAIN M8 | 2 | ||
| 4-12 | S5102603 | Шайба пружинная M10 | 16 | ||
| 4-13 | S5010613 | WASHER;PLAIN M10 | 10 | ||
| 4-15 | S0512153 | BOLT M10X1.5X28 | 4 | ||
| 4-16 | S0508453 | BOLT M8X1.25X12 | 8 | ||
| 4-17 | S0512053 | BOLT M10X1.5X25 | 4 | ||
| 4-19 | S5735241 | PIN;SPLIT | 2 | ||
| 4-2 | 4627-1668A | COVER;SIDE(L.H) | 1 | ||
| 4-20 | S0511453 | BOLT M10X1.5X12 | 8 | ||
| 4-2A | 4125-9048 | LOCK | 1 | ||
| 4-3 | 4627-1669A | COVER;SIDE(R.H) | 1 | ||
| 4-3A | 4125-9048 | LOCK | 1 | ||
| 4-4 | 4145-1300C | ROD;STAY | 2 | ||
| 4-5 | 4131-9002 | ROD;HOLDER | 2 | ||
| 4-6 | 4197-2681A | BRACKET;LATCH | 2 | ||
| 4-7 | 4171-1120 | HINGE | 4 | ||
| 4-8 | S4012633 | NUT M10X1.5 | 4 | ||
| 4-9 | 4197-2682A | BRACKET;LATCH | 2 | ||
| 40 | 195-01078 | Кронштейн | 1 | ||
| 41 | 2114-1058D69 | Шайба | 1 | ||
| 42 | 195-00280 | Кронштейн | 1 | ||
| 43 | 2114-1058D86 | Шайба | 8 | ||
| 6 | S0505353 | BOLT M6X1.0X35 | 2 | ||
| 7 | 195-00283 | BRACKET;LATCH | 1 | ||
| 9 | S5102703 | Шайба пружинная M12 | 4 |
