OIL PIPE-IN OIL PAN колесного погрузчика модели V Doosan MEGA250-V
OIL PIPE-IN OIL PAN колесного погрузчика модели V Doosan MEGA250-V со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:019
Наименование:OIL PIPE-IN OIL PAN
Версия:021-00026EF

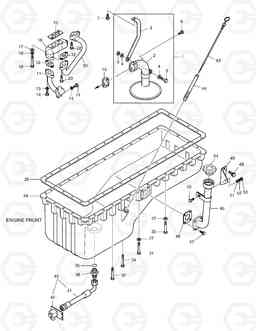

OIL PIPE-IN OIL PAN MEGA250-V
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 65.05701-6075A | OIL SUCTION PIPE ASS'Y | 1 | ||
| 10 | 65.96601B0019 | GASKET;OIL SUCTION PIPE | 1 | ||
| 11 | 65.05701-0030A | OIL PIPE ASS'Y(O/P->C/F) | 1 | ||
| 11 | 65.05701-5153 | OIL PIPE ASS'Y | 1 | ||
| 11 | 65.05701-5153 | OIL PIPE ASS'Y | 1 |
65.05701-0030A
|
|
| 12 | 65.96601-0050 | GASKET;OIL PIPE 22X44X1 | 4 | ||
| 13 | 06.16731-2107 | Шайба пружинная | 4 | ||
| 14 | 06.01283-7113 | BOLT;HEX. M8X20 | 4 | ||
| 15 | 65.05903B0003 | GASKET;CONNECTING FLANGE | 1 | ||
| 16 | 65.05715-5001 | CONNECTING FLANGE ASS'Y | 1 | ||
| 17 | 06.15010-2311 | Шайба | 2 | ||
| 18 | 06.16731-2107 | Шайба пружинная | 2 | ||
| 19 | 06.02090-0422 | BOLT;SOCKET HEAD | 2 | ||
| 2 | 65.05701-5635 | OIL SUCTION PIPE ASS'Y | 1 | ||
| 20 | 65.05701-5230 | OIL PIPE ASS'Y | 1 | ||
| 22 | 65.90001-6006 | BOLT;SOCKET HEAD M8X25 | 2 | ||
| 23 | 06.01923-3113 | BOLT ASS'Y M8X20 | 2 | ||
| 24 | 65.05801-5196B | OIL PAN ASS'Y | 1 | ||
| 25 | 65.05904A0016 | GASKET;OIL PAN | 1 | ||
| 27 | 06.15010-2311 | Шайба | 27 | ||
| 3 | 65.05740-0096 | HOLDER;OIL SUCTION PIPE | 1 | ||
| 31 | 06.01913-7127 | BOLT;HEX. M8X80 | 4 | ||
| 32 | 06.01923-3126 | BOLT;HEX. M8X75 | 9 | ||
| 33 | 06.01913-3121 | BOLT ASS'Y M8X50 | 23 | ||
| 34 | 06.01913-3122 | BOLT ASS'Y M8X55 | 1 | ||
| 35 | 06.56190-0732 | RING;SEAL A30X36 | 1 | ||
| 36 | 65.98130-0203 | Адаптер | 1 | ||
| 4 | 06.15010-2311 | Шайба | 2 | ||
| 40 | 65.96340-6003A | DRAIN HOSE ASS'Y | 1 | ||
| 41 | 65.96340-5014 | HOSE;DRAIN | 1 | ||
| 42 | 65.98125-5004A | COCK;DRAIN | 1 | ||
| 43 | 65.05805-5189 | GAUGE;OIL LEVEL | 1 | ||
| 44 | 65.05806-5098 | TUBE;GUIDE | 1 | ||
| 45 | 65.01813-5016 | PIPE;OIL FILLER | 1 | ||
| 46 | 65.05903-0025 | Прокладка | 1 | ||
| 47 | 06.01913-3114 | BOLT ASS'Y M8X22 | 4 | ||
| 48 | 65.01840-0003 | Кронштейн | 1 | ||
| 49 | 06.01913-3211 | BOLT ASS'Y M10X1.5X16 | 2 | ||
| 5 | 06.01283-7114 | BOLT;HEX. M8X22 | 1 | ||
| 50 | 06.01283-7115 | BOLT;HEX. M8X25 | 1 | ||
| 51 | 06.15010-2311 | Шайба | 1 | ||
| 52 | 06.16731-2107 | Шайба пружинная | 1 | ||
| 53 | 06.11063-8214 | Гайка М8 | 1 | ||
| 54 | 65.01810-5007 | Крышка масляного фильтра | 1 | ||
| 6 | 65.90510-0012 | Гайка | 1 | ||
| 7 | 06.01923-3111 | Болт в сборе (с шайбой и гровером) | 1 | ||
| 9 | 06.01923-3113 | BOLT ASS'Y M8X20 | 2 |
