Каталог запчастей
-
Doosan
-
MEGA400-V FACE LIFT
- NAME PLATE-EUROPE
NAME PLATE-EUROPE колесного погрузчика модели V Doosan MEGA400-V FACE LIFT
NAME PLATE-EUROPE колесного погрузчика модели V Doosan MEGA400-V FACE LIFT со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4130
Наименование:NAME PLATE-EUROPE
Версия:021-00082EF

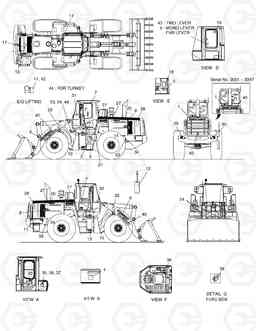

NAME PLATE-EUROPE MEGA400-V FACE LIFT
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| - | 190-01254A | NAME PLATE ASS'Y-EUROPE | - | ||
| - | 190-01254B | NAME PLATE ASS'Y-EUROPE | - | ||
| 1 | K1014672 | PLATE;NAME | 1 | ||
| 1 | K1011743D4 | PLATE;NAME(DOOSAN) | 1 | ||
| 10 | 190-00120 | PLATE;NAME(CAUTION;TURN) | 2 | ||
| 11 | 190-00100 | PLATE;NAME(BATTERY) | 1 | ||
| 12 | 190-00098 | PLATE;NAME | 1 | ||
| 13 | 2190-2314D3 | TAPE;ANTI-SKID | 6 | ||
| 14 | 190-00548 | PLATE;NAME(TIRE PRESS.) | 1 | ||
| 16 | 2190-2559 | PLATE;NAME | 1 | ||
| 17 | 190-00097 | PLATE;NAME(HOT WATER) | 2 | ||
| 18 | 2190-2524 | PLATE;NAME | 1 | ||
| 19 | 190-00542 | PLATE;NAME | 1 |
K1002837
|
|
| 19 | K1002837 | PLATE;NAME | 1 | ||
| 2 | 190-00121 | PLATE;NAME(SAFETY LOCK) | 1 | ||
| 20 | 2190-2566B | PLATE;NAME | 1 | ||
| 21 | 190-00099 | PLATE;NAME | 3 | ||
| 22 | 190-00105 | PLATE;NAME(DANGER) | 2 | ||
| 23 | K1012204 | PLATE;NAME | 1 | ||
| 24 | 2122-1002D2 | RIVET | 4 | ||
| 25 | 190-01258 | PLATE;NAME | 1 | ||
| 26 | 190-01259 | PLATE;NAME | 1 | ||
| 27 | 190-00606 | PLATE;NAME | 2 | ||
| 28 | 190-01260 | PLATE;NAME | 2 | ||
| 29 | 2190-3528 | PLATE;NAME(SWING AREA) | 1 | ||
| 3 | 190-00362 | PLATE;NAME(T/M LEVEL) | 1 | ||
| 30 | 2190-3530 | PLATE;NAME(SWING AREA) | 1 | ||
| 31 | 190-01059D20 | PLATE;NAME(SOUND POWER) | 1 | ||
| 32 | 190-00544 | PLATE;NAME | 1 | ||
| 33 | 2190-2476 | PLATE;NAME(TIE DOWN) | 2 | ||
| 34 | 2190-2477 | PLATE;NAME(LIFTING) | 4 | ||
| 35 | S3450823 | SCREW M5X0.8X10 | 4 | ||
| 36 | S5000213 | WASHER;PLAIN M5 | 4 | ||
| 37 | K1012218 | PLATE;NAME(ROPS+FOPS) | 1 | ||
| 38 | 190-00565 | PLATE;NAME(FUSE BOX 1) | 1 | ||
| 39 | 190-00566 | PLATE;NAME(FUSE BOX 2) | 1 | ||
| 4 | 190-01264 | PLATE;NAME | 1 | ||
| 40 | 190-00557 | PLATE;NAME | 1 | ||
| 41 | 190-00509AD12 | PLATE;NAME(E/G EMISSION) | 1 | ||
| 42 | 2124-1622D1 | CLIP;BAND | 1 | ||
| 43 | 190-01197 | PLATE;NAME | 1 | ||
| 44 | K1012205 | PLATE;NAME | 1 | ||
| 45 | K1012470D11 | PLATE;NAME(DAEWOO) | 2 | ||
| 46 | K1012779D3 | PLATE;NAME(DAEWOO) | 1 | ||
| 5 | 190-00092 | PLATE;NAME | 1 | ||
| 6 | 4190-2482A | PLATE;NAME(LEVER DIRECT.) | 1 | ||
| 7 | 2116-9003 | Пластина | 3 | ||
| 8 | 190-00095 | PLATE;NAME | 2 | ||
| 9 | K1011645D5 | PLATE;NAME(DOOSAN) | 2 |
