AIRCON SERVICEPARTS LIST погрузчика дизельного Hyundai 100/120/135/160D-7
AIRCON SERVICEPARTS LIST погрузчика дизельного Hyundai 100/120/135/160D-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1080
Наименование:AIRCON SERVICEPARTS LIST
Версия:2009. 4.30 REV.9D

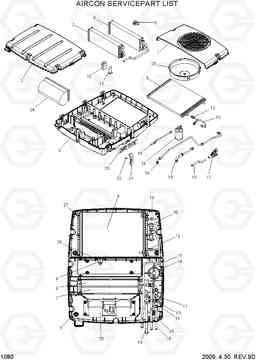

AIRCON SERVICEPARTS LIST 100/120/135/160D-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 11FT-93230 | COVER-CONDENSOR | 1 | ||
| 10 | 11FT-93370 | EXPANSION VALVE | 1 | ||
| 11 | 11FT-93380 | BRACKET-EXP VALVE | 1 | ||
| 12 | 11FT-93390 | Датчик давления (переключатель, реле) | 1 | ||
| 13 | 11FT-93410 | TUBE-#6 REC DRIER-COND | 1 | ||
| 14 | 11FT-93420 | RECEIVER DRIER,R-134A | 1 | ||
| 15 | 11FT-93430 | TUBE-#6 CONDENSOR | 1 | ||
| 16 | 11FT-93440 | TUBE ASSY-INLET,COND | 1 | ||
| 17 | 11FT-93450 | WATER VALVE-CABLE OPERATED | 1 | ||
| 18 | 11FT-93460 | TUBE-HEATER | 1 | ||
| 19 | 11FT-93470 | TUBE ASSY-OUTLET | 1 | ||
| 2 | 11FT-93250 | COVER-EVAPORATOR-GRAY | 1 | ||
| 20 | 11FT-93480 | PLACARD | 1 | ||
| 21 | 11FT-93490 | LATCH-OVER CENTER ASSY-GRAY | 1 | ||
| 22 | 11FT-93510 | RETAINER-LATCH PIVOT | 1 | ||
| 23 | 11FT-93520 | Мотор отопителя и вентилятор в сборе (24 В) | 1 | ||
| 24 | 11FT-93530 | MOTOR BLOWER ASSY 24V | 1 | ||
| 25 | 11FT-93540 | SCREW-#8 PLASTITE HEX HD | 1 | ||
| 26 | 11FT-93550 | SCREW-#12 PLASTITE HEX HD | 1 | ||
| 27 | 11FT-93560 | WIRE HARNESS ASSY | 1 |
NOT SHOWN
|
|
| 3 | 11FT-93270 | HOUSING-GRAY | 1 | ||
| 30 | 11FT-93580 | RELAY,24V | 2 |
NOT SHOWN
|
|
| 31 | 11FT-93590 | WATER VALVE CONVERTER | 1 |
NOT SHOWN
|
|
| 32 | 11FT-93600 | PLENUM-OUTLET | 1 |
NOT SHOWN
|
|
| 33 | 11FT-93610 | LOUVER | 1 |
NOT SHOWN
|
|
| 34 | 11FT-93620 | SWITCH-ROTARY,3SPEED | 1 |
NOT SHOWN
|
|
| 35 | 11FT-93630 | SWITCH-ROCKER,BLACK | 1 |
NOT SHOWN
|
|
| 36 | 11FT-93220 | KNOB-CONTROL | 1 |
NOT SHOWN
|
|
| 37 | 11FT-93640 | HOUSING-FILTER,PLENUM | 1 |
NOT SHOWN
|
|
| 38 | 11FT-93650 | FLITER-RECIRC | 1 |
NOT SHOWN
|
|
| 39 | 11FT-93660 | COVER-RECIRC FILTER | 1 |
NOT SHOWN
|
|
| 41 | 11FT-93680 | RESISTOR(FOR 24V) | 1 |
NOT SHOWN
|
|
| 5 | 11FT-93320 | CONDENSOR | 1 | ||
| 6 | 11FT-93330 | HEATER CORE ASSY | 1 | ||
| 7 | 11FT-93340 | EVAPORATOR ASSY | 1 | ||
| 9 | 11FT-93360 | THERMOSTAT-SIDE $BTM MOUNT | 1 |
