CABIN SUB 4 погрузчика дизельного Hyundai 100/120/135/160D-7
CABIN SUB 4 погрузчика дизельного Hyundai 100/120/135/160D-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6055
Наименование:CABIN SUB 4
Версия:2007.11.30 REV.7L

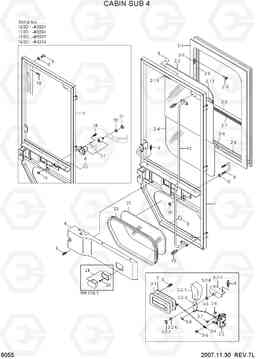

CABIN SUB 4 100/120/135/160D-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| *-1 | @ | CABIN SUB ASSY | 1 |
SEE 6020
|
|
| *-1-2 | 71FT-01021 | SIDE DOOR ASSY-LH | 1 |
LH,100D
|
|
| *-1-2 | 71FT-01023 | SIDE DOOR ASSY-LH | 1 |
LH,100D
|
|
| *-1-2 | 71FT-01021 | SIDE DOOR ASSY-LH | 1 |
LH,120D
|
|
| *-1-2 | 71FT-01023 | SIDE DOOR ASSY-LH | 1 |
LH,120D
|
|
| *-1-2 | 71FT-01021 | SIDE DOOR ASSY-LH | 1 |
LH,135D
|
|
| *-1-2 | 71FT-01022 | SIDE DOOR ASSY-LH | 1 |
LH,135D
|
|
| *-1-2 | 71FT-01023 | SIDE DOOR ASSY-LH | 1 |
LH,135D
|
|
| *-1-2 | 71FT-01021 | SIDE DOOR ASSY-LH | 1 |
LH,160D
|
|
| *-1-2 | 71FT-01022 | SIDE DOOR ASSY-LH | 1 |
LH,160D
|
|
| *-1-2 | 71FT-01023 | SIDE DOOR ASSY-LH | 1 |
LH,160D
|
|
| *-1-3 | 71FT-01031 | SIDE DOOR ASSY-RH | 1 |
RH,100D
|
|
| *-1-3 | 71FT-01033 | SIDE DOOR ASSY-RH | 1 |
RH,100D
|
|
| *-1-3 | 71FT-01031 | SIDE DOOR ASSY-RH | 1 |
RH,120D
|
|
| *-1-3 | 71FT-01033 | SIDE DOOR ASSY-RH | 1 |
RH,120D
|
|
| *-1-3 | 71FT-01031 | SIDE DOOR ASSY-RH | 1 |
RH,135D
|
|
| *-1-3 | 71FT-01032 | SIDE DOOR ASSY-RH | 1 |
RH,135D
|
|
| *-1-3 | 71FT-01033 | SIDE DOOR ASSY-RH | 1 |
RH,135D
|
|
| *-1-3 | 71FT-01031 | SIDE DOOR ASSY-RH | 1 |
RH,160D
|
|
| *-1-3 | 71FT-01032 | SIDE DOOR ASSY-RH | 1 |
RH,160D
|
|
| *-1-3 | 71FT-01033 | SIDE DOOR ASSY-RH | 1 |
RH,160D
|
|
| 1 | 71FT-01041 | SIDE DOOR WA-LH | 1 |
LH,100D
|
|
| 1 | 71FT-01042 | SIDE DOOR WA-LH | 1 |
LH,100D
|
|
| 1 | 71FT-01041 | SIDE DOOR WA-LH | 1 |
LH,120D
|
|
| 1 | 71FT-01042 | SIDE DOOR WA-LH | 1 |
LH,120D
|
|
| 1 | 71FT-01041 | SIDE DOOR WA-LH | 1 |
LH,135D
|
|
| 1 | 71FT-01042 | SIDE DOOR WA-LH | 1 |
LH,135D
|
|
| 1 | 71FT-01041 | SIDE DOOR WA-LH | 1 |
LH,160D
|
|
| 1 | 71FT-01042 | SIDE DOOR WA-LH | 1 |
LH,160D
|
|
| 1 | 71FT-01051 | SIDE DOOR WA-RH | 1 |
RH,100D
|
|
| 1 | 71FT-01052 | SIDE DOOR WA-RH | 1 |
RH,100D
|
|
| 1 | 71FT-01051 | SIDE DOOR WA-RH | 1 |
RH,120D
|
|
| 1 | 71FT-01052 | SIDE DOOR WA-RH | 1 |
RH,120D
|
|
| 1 | 71FT-01051 | SIDE DOOR WA-RH | 1 |
RH,135D
|
|
| 1 | 71FT-01052 | SIDE DOOR WA-RH | 1 |
RH,135D
|
|
| 1 | 71FT-01051 | SIDE DOOR WA-RH | 1 |
RH,160D
|
|
| 1 | 71FT-01052 | SIDE DOOR WA-RH | 1 |
RH,160D
|
|
| 10 | S203-101006 | Гайка | 4 | ||
| 12 | 71LB-07110 | Перила | 1 |
LH
|
|
| 12 | 71LB-07120 | HANDRAIL WA-RH | 1 |
RH
|
|
| 13 | S037-102026 | Болт | 6 | ||
| 16 | S151-040162 | SCREW-TAPPING | 10 |
100D
|
|
| 16 | S151-040162 | SCREW-TAPPING | 10 |
120D
|
|
| 16 | S151-040162 | SCREW-TAPPING | 10 |
135D
|
|
| 16 | S151-040162 | SCREW-TAPPING | 10 |
160D
|
|
| 17 | 75D1-05470 | вылов | 1 |
100D
|
|
| 17 | 75D1-05470 | вылов | 1 |
120D
|
|
| 17 | 75D1-05470 | вылов | 1 |
135D
|
|
| 17 | 75D1-05470 | вылов | 1 |
160D
|
|
| 18 | S131-052546 | SCREW-W/WASHER | 3 |
100D
|
|
| 18 | S131-052546 | SCREW-W/WASHER | 3 |
120D
|
|
| 18 | S131-052546 | SCREW-W/WASHER | 3 |
135D
|
|
| 18 | S131-052546 | SCREW-W/WASHER | 3 |
160D
|
|
| 19 | S205-051006 | Гайка | 3 |
100D
|
|
| 19 | S205-051006 | Гайка | 3 |
120D
|
|
| 19 | S205-051006 | Гайка | 3 |
135D
|
|
| 19 | S205-051006 | Гайка | 3 |
160D
|
|
| 2 | 71LB-07060 | раздвижное окно в сборе | 1 | ||
| 2-1 | 71LB-07310 | аль створки тип | 1 | ||
| 2-10 | 71L1-3332 | заблокировать LH | 1 | ||
| 2-11 | 71L1-3353 | замок RH | 1 | ||
| 2-2 | 71LB-07320 | аль тип створки б | 1 | ||
| 2-3 | 71LB-07330 | стекло из | 1 | ||
| 2-4 | 71LB-07340 | стекло | 1 | ||
| 2-5 | 71LB-07350 | Стопор стеклянный | 1 | ||
| 2-6 | E171-1163 | Сальник | 2 | ||
| 2-7 | E171-1164 | Сальник | 1 | ||
| 2-8 | S141-030086 | Винт с потайной головкой | 12 | ||
| 2-9 | 71L1-3328 | Корпус клапана | 6 | ||
| 20 | S411-080006 | Шайба пружинная | 1 |
100D
|
|
| 20 | S411-080006 | Шайба пружинная | 1 |
120D
|
|
| 20 | S411-080006 | Шайба пружинная | 1 |
135D
|
|
| 20 | S411-080006 | Шайба пружинная | 1 |
160D
|
|
| 21 | S205-081006 | Гайка | 1 |
100D
|
|
| 21 | S205-081006 | Гайка | 1 |
120D
|
|
| 21 | S205-081006 | Гайка | 1 |
135D
|
|
| 21 | S205-081006 | Гайка | 1 |
160D
|
|
| 22 | 71FT-01650 | Стекло двери | 1 | ||
| 23 | S781-213801 | SEAL-GLASS | 1 | ||
| 24 | E171-1176 | ASHTRAY | 1 |
RH ONLY
|
|
| 25 | S141-040166 | Винт с потайной головкой | 2 |
RH ONLY
|
|
| 3 | 71LB-01251 | обрабатывать в сборе LH | 1 |
LH
|
|
| 3 | 71LB-01301 | HANDLE ASSY-RH | 1 |
RH
|
|
| 3-1 | 71LB-01651 | HANDLE | 1 | ||
| 3-2 | 71LB-04010 | Ручка кабины внутренняя | 1 |
LH
|
|
| 3-2 | 71LB-04020 | HANDLE-INNER,RH | 1 |
RH
|
|
| 3-2-1 | 71L7-01160 | KNOB | 1 | ||
| 3-2-2 | 71LB-04060 | плита LH | 1 |
LH
|
|
| 3-2-2 | 71LB-04070 | PLATE-RH | 1 |
RH
|
|
| 3-2-3 | 71L7-01180 | Пластина | 1 | ||
| 3-2-6 | S403-10200B | Плоская шайба | 2 | ||
| 3-2-7 | S601-010001 | Кольцо | 1 | ||
| 3-3 | 71N6-03410 | LATCH | 1 | ||
| 3-4 | 71LB-04030 | стержень ручки | 1 | ||
| 3-5 | 71LB-04040 | стержень ручки | 1 | ||
| 3-6 | 71N6-03440 | контактный 1 | 2 | ||
| 3-7 | 71N6-03450 | штифт | 1 | ||
| 3-8 | S560-050006 | Зажим | 3 | ||
| 4 | 71FT-07070 | COVER-RH | 1 |
LH,100D
|
|
| 4 | 71FT-07071 | COVER-RH | 1 |
LH,100D
|
|
| 4 | 71FT-07070 | COVER-RH | 1 |
LH,120D
|
|
| 4 | 71FT-07071 | COVER-RH | 1 |
LH,120D
|
|
| 4 | 71FT-07070 | COVER-RH | 1 |
LH,135D
|
|
| 4 | 71FT-07071 | COVER-RH | 1 |
LH,135D
|
|
| 4 | 71FT-07070 | COVER-RH | 1 |
LH,160D
|
|
| 4 | 71FT-07071 | COVER-RH | 1 |
LH,160D
|
|
| 4 | 71FT-07080 | COVER-LH | 1 |
RH,100D
|
|
| 4 | 71FT-07081 | COVER-LH | 1 |
RH,100D
|
|
| 4 | 71FT-07080 | COVER-LH | 1 |
RH,120D
|
|
| 4 | 71FT-07081 | COVER-LH | 1 |
RH,120D
|
|
| 4 | 71FT-07080 | COVER-LH | 1 |
RH,135D
|
|
| 4 | 71FT-07081 | COVER-LH | 1 |
RH,135D
|
|
| 4 | 71FT-07080 | COVER-LH | 1 |
RH,160D
|
|
| 4 | 71FT-07081 | COVER-LH | 1 |
RH,160D
|
|
| 5 | S131-051546 | SCREW-W/WASHER | 6 | ||
| 6 | S132-061646 | SCREW-W/WASHER | 9 | ||
| 7 | 71LB-01271 | коврик резиновый | 1 | ||
| 8 | 17E1-5146 | бампер дверь | 1 | ||
| 9 | 71N6-03650 | STRIKER | 1 |
