Каталог запчастей
-
Hyundai
-
100/120/135/160D-7
- OUTER PANEL
OUTER PANEL погрузчика дизельного Hyundai 100/120/135/160D-7
OUTER PANEL погрузчика дизельного Hyundai 100/120/135/160D-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6130
Наименование:OUTER PANEL
Версия:2007. 7.31 REV.7G

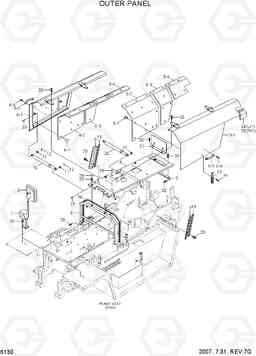

OUTER PANEL 100/120/135/160D-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 71FT-11003 | BRACKET-MIRROR | 2 | ||
| 10 | 71FK-10170 | GAS SPRING | 2 | ||
| 11 | S403-08200B | Плоская шайба | 4 | ||
| 12 | S461-200152 | Палец | 8 | ||
| 13 | 71FT-13740 | LATCH | 2 | ||
| 14 | S131-052546 | SCREW-W/WASHER | 6 | ||
| 16 | S771-051500 | Уплотнитель | 1 | ||
| 19 | S771-001900 | Уплотнитель | 2 | ||
| 2 | 71LB-00111 | зеркало в сборе доб | 2 | ||
| 20 | S037-122556 | Болт | 26 | ||
| 21 | 71FH-10270 | номерной знак | 1 | ||
| 22 | S035-08151V | Болт | 2 | ||
| 23 | S491-080282 | Палец | 2 | ||
| 24 | 71FT-13820 | INSULATOR-LH | 1 | ||
| 25 | 71FT-13830 | INSULATOR-RH | 1 | ||
| 26 | FAC0701250 | GAS SPRING | 2 |
135D/160D ONLY
|
|
| 27 | S205-081006 | Гайка | 2 |
135D/160D ONLY
|
|
| 28 | FHC0904100 | резиновая пребывание | 6 |
100D
|
|
| 28 | FHC0904100 | резиновая пребывание | 6 |
120D
|
|
| 28 | FHC0904100 | резиновая пребывание | 6 |
135D
|
|
| 28 | FHC0904100 | резиновая пребывание | 6 |
160D
|
|
| 3 | 71FT-13101 | SUPPORT WA | 1 | ||
| 4 | 71FT-12201 | E/G COVER-CENTER | 1 |
100D
|
|
| 4 | 71FT-12202 | E/G COVER-CENTER | 1 |
100D
|
|
| 4 | 71FT-12202 | E/G COVER-CENTER | 1 |
120D/135D/160D
|
|
| 4 | 71FT-13201 | E/G COVER-CENTER | 1 |
135D/160D
|
|
| 5 | 71FT-12301 | E/G COVER-LH | 1 |
100D/120D
|
|
| 5 | 71FT-13301 | E/G COVER-LH | 1 |
135D/160D
|
|
| 5-1 | 71FT-12410 | E/G COVER WA-LH | 1 |
100D/120D
|
|
| 5-1 | 71FT-13410 | E/G COVER WA-LH | 1 |
135D/160D
|
|
| 5-2 | 71FT-12311 | SPONGE | 1 |
100D/120D
|
|
| 5-2 | 71FT-13311 | SPONGE | 1 |
135D/160D
|
|
| 5-3 | 71FT-12331 | SPONGE | 1 |
100D/120D
|
|
| 5-3 | 71FT-13331 | SPONGE | 1 |
135D/160D
|
|
| 5-4 | 71FT-13351 | SPONGE | 1 | ||
| 5-5 | E171-1147 | HANDLE | 1 | ||
| 5-6 | S151-050166 | Болт | 2 | ||
| 5-7 | 71EM-51580 | Болт | 18 |
100D/120D
|
|
| 5-7 | 71EM-51580 | Болт | 20 |
135D/160D
|
|
| 6 | 71FT-12401 | E/G COVER-RH | 1 |
100D/120D
|
|
| 6 | 71FT-13401 | E/G COVER-RH | 1 |
135D/160D
|
|
| 6-1 | 71FT-12420 | E/G COVER WA-RH | 1 |
100D/120D
|
|
| 6-1 | 71FT-13420 | E/G COVER WA-RH | 1 |
135D/160D
|
|
| 6-2 | 71FT-12321 | SPONGE | 1 |
100D/120D
|
|
| 6-2 | 71FT-13321 | SPONGE | 1 |
135D/160D
|
|
| 6-3 | 71FT-12341 | SPONGE | 1 |
100D/120D
|
|
| 6-3 | 71FT-13341 | SPONGE | 1 |
135D/160D
|
|
| 6-4 | 71FT-13361 | SPONGE | 1 | ||
| 6-5 | E171-1147 | HANDLE | 1 | ||
| 6-6 | S151-050166 | Болт | 2 | ||
| 6-7 | 71EM-51580 | Болт | 18 |
100D/120D
|
|
| 6-7 | 71EM-51580 | Болт | 20 |
135D/160D
|
|
| 7 | 71FT-13711 | PLATE-LH | 1 | ||
| 8 | 71FT-13721 | PLATE-RH | 1 | ||
| 9 | 71FT-13730 | Кронштейн | 1 |
