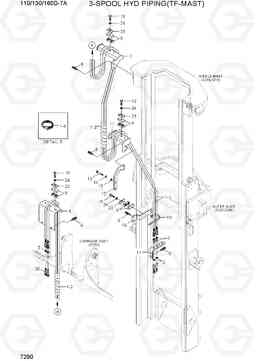

3-SPOOL HYD PIPING (TF-MAST) погрузчика дизельного Hyundai 110/130/160D-7A
3-SPOOL HYD PIPING (TF-MAST) погрузчика дизельного Hyundai 110/130/160D-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7290
Наименование:3-SPOOL HYD PIPING (TF-MAST)
Версия:
3-SPOOL HYD PIPING (TF-MAST) 110/130/160D-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | S520-040000 | Зажим | 1 |
TF395,160D-7A
|
|
| 1 | 37FT-92200 | HOSE SUB ASSY | 1 |
TF500,160D-7A
|
|
| 1-1 | X970-064107 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF440,110/130
|
|
| 1-1 | X970-064113 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF470,110/130
|
|
| 1-1 | X970-064119 | HOSE ASSY ORFS, THD (0x0) | 4 |
TF500,110/130
|
|
| 1-1 | X970-064129 | HOSE ASSY ORFS, THD (0x0) | 4 |
TF550,110/130
|
|
| 1-1 | X970-064139 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF600,110/130
|
|
| 1-1 | X970-064149 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF650,110/130
|
|
| 1-1 | X970-064159 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF700,110/130
|
|
| 1-1 | X970-064100 | HOSE ASSY ORFS, THD (0x0) | 4 |
TF395,160D-7A
|
|
| 1-1 | X970-064105 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF450,160D-7A
|
|
| 1-1 | X970-064120 | HOSE ASSY ORFS, THD (0x0) | 4 |
TF500,160D-7A
|
|
| 1-1 | X970-064130 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF550,160D-7A
|
|
| 1-1 | X970-064140 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF600,160D-7A
|
|
| 1-1 | X970-064150 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF650,160D-7A
|
|
| 1-1 | X970-064160 | HOSE ASSY-ORFS,THD(0X0) | 4 |
TF700,160D-7A
|
|
| 1-2 | 3BFQ-95240 | SLEEVE PROTECTOR | 1 |
TF440,110/130
|
|
| 1-2 | 3BFQ-95170 | SLEEVE PROTECTOR | 1 |
TF470,110/130
|
|
| 1-2 | 3BFQ-95130 | SLEEVE PROTECTOR | 1 |
TF500,110/130
|
|
| 1-2 | 3BFQ-95280 | SLEEVE PROTECTOR | 1 |
TF550,110/130
|
|
| 1-2 | 3BFQ-95290 | SLEEVE PROTECTOR | 1 |
TF600,110/130
|
|
| 1-2 | 3BFQ-95230 | SLEEVE PROTECTOR | 1 |
TF650,110/130
|
|
| 1-2 | 3BFQ-95330 | SLEEVE PROTECTOR | 1 |
TF700,110/130
|
|
| 1-2 | 3BFQ-95190 | SLEEVE PROTECTOR | 1 |
TF395,160D-7A
|
|
| 1-2 | 3BFQ-95190 | SLEEVE PROTECTOR | 1 |
TF450,160D-7A
|
|
| 1-2 | 3BFQ-95170 | SLEEVE PROTECTOR | 1 |
TF500,160D-7A
|
|
| 1-2 | 3BFQ-95130 | SLEEVE PROTECTOR | 1 |
TF550,160D-7A
|
|
| 1-2 | 3BFQ-95150 | SLEEVE PROTECTOR | 1 |
TF600,160D-7A
|
|
| 1-2 | 3BFQ-95320 | SLEEVE PROTECTOR | 1 |
TF650,160D-7A
|
|
| 1-2 | 3BFQ-95350 | SLEEVE PROTECTOR | 1 |
TF700,160D-7A
|
|
| 1-3 | 3BFQ-95250 | SLEEVE PROTECTOR | 1 |
TF440,110/130
|
|
| 1-3 | 3BFQ-95220 | SLEEVE PROTECTOR | 1 |
TF470,110/130
|
|
| 1-3 | 3BFQ-95140 | SLEEVE PROTECTOR | 1 |
TF500,110/130
|
|
| 1-3 | 3BFQ-95190 | SLEEVE PROTECTOR | 1 |
TF550,110/130
|
|
| 1-3 | 3BFQ-95120 | SLEEVE PROTECTOR | 1 |
TF600,110/130
|
|
| 1-3 | 3BFQ-95170 | SLEEVE PROTECTOR | 1 |
TF650,110/130
|
|
| 1-3 | 3BFQ-95340 | SLEEVE PROTECTOR | 1 |
TF700,110/130
|
|
| 1-3 | 3BFQ-96210 | SLEEVE PROTECTOR | 1 |
TF395,160D-7A
|
|
| 1-3 | 3BFQ-95220 | SLEEVE PROTECTOR | 1 |
TF450,160D-7A
|
|
| 1-3 | 3BFQ-95140 | SLEEVE PROTECTOR | 1 |
TF500,160D-7A
|
|
| 1-3 | 3BFQ-95190 | SLEEVE PROTECTOR | 1 |
TF550,160D-7A
|
|
| 1-3 | 3BFQ-95120 | SLEEVE PROTECTOR | 1 |
TF600,160D-7A
|
|
| 1-3 | 3BFQ-95170 | SLEEVE PROTECTOR | 1 |
TF650,160D-7A
|
|
| 1-3 | 3BFQ-95340 | SLEEVE PROTECTOR | 1 |
TF700,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF440,110/130
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF470,110/130
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF500,110/130
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF550,110/130
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF600,110/130
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF650,110/130
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF395,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF450,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF500,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF550,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF600,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF650,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 4 |
TF700,160D-7A
|
|
| 10 | S017-080556 | Болт с шестигранной головкой (под шестигранник) | 4 | ||
| 11 | 33FT-90553 | GUARD WA-HOSE | 1 | ||
| 12 | 33FT-90021 | BRACKET-GUARD | 1 | ||
| 13 | S017-120506 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 14 | S411-120006 | Шайба пружинная | 2 | ||
| 15 | S403-121006 | Плоская шайба | 2 | ||
| 16 | 33FT-90032 | BRACKET-CLAMP | 1 | ||
| 17 | 33FT-90080 | Разъем кронштейн | 1 | ||
| 19 | S552-050203 | Зажим | 4 | ||
| 2 | 31FT-80210 | Соединитель | 2 | ||
| 20 | 31FG-80200 | Разъем долго | 2 | ||
| 23 | 3FFQ-90430 | Пластина | 4 | ||
| 24 | S411-080006 | Шайба пружинная | 4 | ||
| 3 | 31FT-80220 | Гайка | 1 | ||
| 4 | 33FT-90011 | GUARD-HOSE | 2 | ||
| 5 | 31FG-80430 | Гайка | 2 | ||
| 6 | S037-102526 | Болт | 6 | ||
| 7 | 33FT-90503 | GUARD WA-HOSE | 1 | ||
| 8 | S037-123026 | Болт | 4 | ||
| 9 | 3FFQ-90410 | Зажим | 8 | ||
| N1 | 37FT-91800 | HOSE SUB ASSY | 1 |
TF440,110/130
|
|
| N1 | 37FT-91900 | HOSE SUB ASSY | 1 |
TF470,110/130
|
|
| N1 | 37FT-92000 | HOSE SUB ASSY | 1 |
TF500,110/130
|
|
| N1 | 37FT-92400 | HOSE SUB ASSY | 1 |
TF550,110/130
|
|
| N1 | 37FT-92600 | HOSE SUB ASSY | 1 |
TF600,110/130
|
|
| N1 | 37FT-92900 | HOSE SUB ASSY | 1 |
TF650,110/130
|
|
| N1 | 37FT-93100 | HOSE SUB ASSY | 1 |
TF700,110/130
|
|
| N1 | 37FT-91600 | HOSE SUB ASSY | 1 |
TF450,160D-7A
|
|
| N1 | 37FT-92500 | HOSE SUB ASSY | 1 |
TF550,160D-7A
|
|
| N1 | 37FT-92700 | HOSE SUB ASSY | 1 |
TF600,160D-7A
|
|
| N1 | 37FT-93000 | HOSE SUB ASSY | 1 |
TF650,160D-7A
|
|
| N1 | 37FT-93200 | HOSE SUB ASSY | 1 |
TF700,160D-7A
|
|
| N1-4 | 37FT-93100 | HOSE SUB ASSY | 4 |
TF700,110/130
|
