5-SPOOL HYD PIPING (TF-MAST) погрузчика дизельного Hyundai 110/130/160D-7A
5-SPOOL HYD PIPING (TF-MAST) погрузчика дизельного Hyundai 110/130/160D-7A со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7310
Наименование:5-SPOOL HYD PIPING (TF-MAST)
Версия:

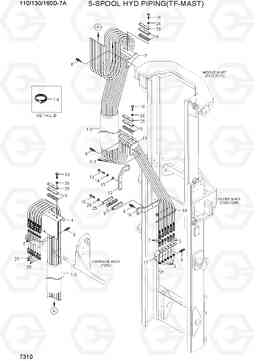

5-SPOOL HYD PIPING (TF-MAST) 110/130/160D-7A
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 37FT-97800 | HOSE SUB ASSY | 1 |
TF440,110/130D-7A
|
|
| 1-1 | P910-064107 | Шланг в сборе | 6 |
TF440,110/130D-7A
|
|
| 1-1 | P910-064113 | Шланг в сборе | 6 |
TF470,110/130D-7A
|
|
| 1-1 | P910-064119 | Шланг в сборе | 6 |
TF500,110/130D-7A
|
|
| 1-1 | P910-064129 | Шланг в сборе | 6 |
TF550,110/130D-7A
|
|
| 1-1 | P910-064139 | Шланг в сборе | 6 |
TF600,110/130D-7A
|
|
| 1-1 | P910-064149 | Шланг в сборе | 6 |
TF650,110/130D-7A
|
|
| 1-1 | P910-064159 | Шланг в сборе | 6 |
TF700,110/130D-7A
|
|
| 1-1 | P910-064100 | Шланг в сборе | 6 |
TF395,160D-7A
|
|
| 1-1 | P910-064105 | Шланг в сборе | 6 |
TF450,160D-7A
|
|
| 1-1 | P910-064120 | Шланг в сборе | 6 |
TF500,160D-7A
|
|
| 1-1 | P910-064130 | Шланг в сборе | 6 |
TF550,160D-7A
|
|
| 1-1 | P910-064140 | Шланг в сборе | 6 |
TF600,160D-7A
|
|
| 1-1 | P910-064150 | Шланг в сборе | 6 |
TF650,160D-7A
|
|
| 1-1 | P910-064160 | Шланг в сборе | 6 |
TF700,160D-7A
|
|
| 1-2 | 37FT-97220 | SLEEVE PROTECTOR | 1 |
TF440,110/130D-7A
|
|
| 1-2 | 37FT-97130 | SLEEVE PROTECTOR | 1 |
TF470,110/130D-7A
|
|
| 1-2 | 37FT-97150 | SLEEVE PROTECTOR | 1 |
TF500,110/130D-7A
|
|
| 1-2 | 37FT-97280 | SLEEVE PROTECTOR | 1 |
TF550,110/130D-7A
|
|
| 1-2 | 37FT-97290 | SLEEVE PROTECTOR | 1 |
TF600,110/130D-7A
|
|
| 1-2 | 37FT-97210 | SLEEVE PROTECTOR | 1 |
TF650,110/130D-7A
|
|
| 1-2 | 37FT-97330 | SLEEVE PROTECTOR | 1 |
TF700,110/130D-7A
|
|
| 1-2 | 37FT-97170 | SLEEVE PROTECTOR | 1 |
TF395,160D-7A
|
|
| 1-2 | 37FT-97170 | SLEEVE PROTECTOR | 1 |
TF450,160D-7A
|
|
| 1-2 | 37FT-97130 | SLEEVE PROTECTOR | 1 |
TF500,160D-7A
|
|
| 1-2 | 37FT-97150 | SLEEVE PROTECTOR | 1 |
TF550,160D-7A
|
|
| 1-2 | 37FT-97160 | SLEEVE PROTECTOR | 1 |
TF600,160D-7A
|
|
| 1-2 | 37FT-97320 | SLEEVE PROTECTOR | 1 |
TF650,160D-7A
|
|
| 1-2 | 37FT-97350 | SLEEVE PROTECTOR | 1 |
TF700,160D-7A
|
|
| 1-3 | 37FT-97230 | SLEEVE PROTECTOR | 1 |
TF440,110/130D-7A
|
|
| 1-3 | 37FT-97240 | SLEEVE PROTECTOR | 1 |
TF470,110/130D-7A
|
|
| 1-3 | 37FT-97250 | SLEEVE PROTECTOR | 1 |
TF500,110/130D-7A
|
|
| 1-3 | 37FT-97170 | SLEEVE PROTECTOR | 1 |
TF550,110/130D-7A
|
|
| 1-3 | 37FT-97110 | SLEEVE PROTECTOR | 1 |
TF600,110/130D-7A
|
|
| 1-3 | 37FT-97130 | SLEEVE PROTECTOR | 1 |
TF650,110/130D-7A
|
|
| 1-3 | 37FT-97340 | SLEEVE PROTECTOR | 1 |
TF700,110/130D-7A
|
|
| 1-3 | 37FT-97180 | SLEEVE PROTECTOR | 1 |
TF395,160D-7A
|
|
| 1-3 | 37FT-97190 | SLEEVE PROTECTOR | 1 |
TF450,160D-7A
|
|
| 1-3 | 37FT-97250 | SLEEVE PROTECTOR | 1 |
TF500,160D-7A
|
|
| 1-3 | 37FT-97170 | SLEEVE PROTECTOR | 1 |
TF550,160D-7A
|
|
| 1-3 | 37FT-97110 | SLEEVE PROTECTOR | 1 |
TF600,160D-7A
|
|
| 1-3 | 37FT-97130 | SLEEVE PROTECTOR | 1 |
TF650,160D-7A
|
|
| 1-3 | 37FT-97340 | SLEEVE PROTECTOR | 1 |
TF700,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF440,110/130D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF470,110/130D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF500,110/130D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF550,110/130D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF600,110/130D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF650,110/130D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF700,110/130D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF395,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF450,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF500,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF550,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF600,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF650,160D-7A
|
|
| 1-4 | S520-040000 | Зажим | 12 |
TF700,160D-7A
|
|
| 10 | S017-080556 | Болт с шестигранной головкой (под шестигранник) | 12 | ||
| 11 | 33FT-90553 | GUARD WA-HOSE | 1 | ||
| 12 | 33FT-90021 | BRACKET-GUARD | 1 | ||
| 13 | S017-120506 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 14 | S411-120006 | Шайба пружинная | 2 | ||
| 15 | S403-121006 | Плоская шайба | 2 | ||
| 16 | 33FT-90571 | BRACKET-CLAMP | 1 | ||
| 17 | 33FT-90090 | Разъем кронштейн | 1 | ||
| 19 | S552-050203 | Зажим | 4 | ||
| 2 | 31FT-80210 | Соединитель | 6 | ||
| 20 | 31FG-80200 | Разъем долго | 6 | ||
| 21 | X710-100103 | Крышка | 2 | ||
| 25 | 33FT-90660 | Пластина | 4 | ||
| 26 | S411-080006 | Шайба пружинная | 12 | ||
| 3 | 31FT-80220 | Гайка | 6 | ||
| 4 | 33FT-90011 | GUARD-HOSE | 1 | ||
| 5 | 31FG-80430 | Гайка | 6 | ||
| 6 | S037-102526 | Болт | 6 | ||
| 7 | 33FT-90503 | GUARD WA-HOSE | 1 | ||
| 8 | S037-123026 | Болт | 4 | ||
| 9 | 33FT-90650 | Зажим | 8 | ||
| N1 | 37FT-97900 | HOSE SUB ASSY | 1 |
TF470,110/130D-7A
|
|
| N1 | 37FT-98000 | HOSE SUB ASSY | 1 |
TF500,110/130D-7A
|
|
| N1 | 37FT-98400 | HOSE SUB ASSY | 1 |
TF550,110/130D-7A
|
|
| N1 | 37FT-98600 | HOSE SUB ASSY | 1 |
TF600,110/130D-7A
|
|
| N1 | 37FT-98900 | HOSE SUB ASSY | 1 |
TF650,110/130D-7A
|
|
| N1 | 37FT-99100 | HOSE SUB ASSY | 1 |
TF700,110/130D-7A
|
|
| N1 | 37FT-97500 | HOSE SUB ASSY | 1 |
TF395,160D-7A
|
|
| N1 | 37FT-97600 | HOSE SUB ASSY | 1 |
TF450,160D-7A
|
|
| N1 | 37FT-98200 | HOSE SUB ASSY | 1 |
TF500,160D-7A
|
|
| N1 | 37FT-98500 | HOSE SUB ASSY | 1 |
TF550,160D-7A
|
|
| N1 | 37FT-98700 | HOSE SUB ASSY | 1 |
TF600,160D-7A
|
|
| N1 | 37FT-99000 | HOSE SUB ASSY | 1 |
TF650,160D-7A
|
|
| N1 | 37FT-99200 | HOSE SUB ASSY | 1 |
TF700,160D-7A
|
