STEERING UNIT погрузчика дизельного Hyundai 110/130/140/160D-7E
STEERING UNIT погрузчика дизельного Hyundai 110/130/140/160D-7E со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3A50
Наименование:STEERING UNIT
Версия:2010.11.30 REV.10L

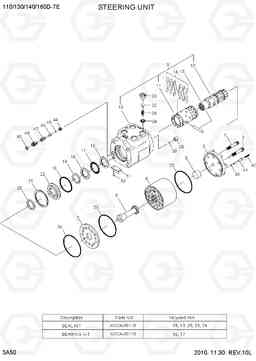

STEERING UNIT 110/130/140/160D-7E
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | 31FT-04000 | STEERING UNIT | 1 | ||
| K | XKCA-00118 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 |
SEE ILLUST
|
|
| N1 | @ | SCREW-CAP | 6 | ||
| N10 | @ | HOUSING | 1 | ||
| N11 | @ | SLEEVE | 1 | ||
| N12 | @ | SPOOL | 1 | ||
| N13 | @ | PIN | 1 | ||
| N14 | @ | SPRING-CENTERING | 6 | ||
| N2 | @ | RETAINER SCREW ASSY | 1 | ||
| N21 | @ | RING-RETAINING | 1 | ||
| N22 | @ | BUSHING | 1 | ||
| N25 | @ | SCREW-ADOPT | 1 | ||
| N26 | @ | BALL | 1 | ||
| N3 | @ | CAP-END | 1 | ||
| N31 | @ | CHECK VALVE ASSY | 1 | ||
| N32 | @ | POPPET | 1 | ||
| N33 | @ | BODY | 1 | ||
| N34 | @ | GUIDE | 1 | ||
| N35 | @ | SPRING | 1 | ||
| N4 | @ | GEROTOR | 1 | ||
| N41 | @ | PLUG-RETAINER | 2 | ||
| N42 | @ | SPRING | 2 | ||
| N43 | @ | BALL | 2 | ||
| N44 | @ | SEAT | 2 | ||
| N45 | @ | BALL | 2 | ||
| N46 | @ | HOLDER | 2 | ||
| N47 | @ | SPRING | 2 | ||
| N48 | @ | PLUG | 2 | ||
| N49 | @ | O-RING | 2 | ||
| N5 | @ | SPACER | 1 | ||
| N51 | @ | NAME PLATE | 1 | ||
| N52 | @ | RIVET | 2 | ||
| N7 | @ | PLATE-SPACER | 1 | ||
| N8 | @ | GEAR-DRIVE | 1 | ||
| N9 | @ | CONTROL PARTS ASSY | 1 | ||
| NK | XKCA-00119 | Комплект подшипника | 1 |
SEE ILLUST
|
|
| NK16 | @ | RACE-BEARING | 2 | ||
| NK17 | @ | BEARING-NEEDLE | 1 | ||
| NK18 | @ | O-RING | 1 | ||
| NK19 | @ | SEAL | 1 | ||
| NK20 | @ | SEAL-DUST | 1 | ||
| NK23 | @ | O-RING | 2 | ||
| NK24 | @ | O-RING | 1 |
