DRIVE UNIT (4/4) погрузчика электрического Hyundai 16/18/20B-9
DRIVE UNIT (4/4) погрузчика электрического Hyundai 16/18/20B-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:4050
Наименование:DRIVE UNIT (4/4)
Версия:

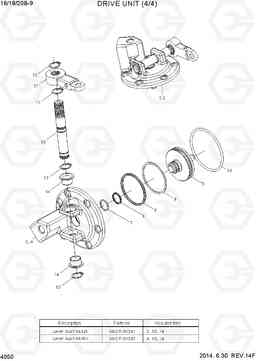

DRIVE UNIT (4/4) 16/18/20B-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| *-7 | XKCF-00965 | парковка югу LH | 1 |
16B-9
|
|
| *-7 | XKCF-01235 | PARKING SUB-LH | 1 |
16B-9
|
|
| *-7 | XKCF-00965 | парковка югу LH | 1 |
18B-9
|
|
| *-7 | XKCF-01235 | PARKING SUB-LH | 1 |
18B-9
|
|
| *-7 | XKCF-00965 | парковка югу LH | 1 |
20B-9
|
|
| *-7 | XKCF-01235 | PARKING SUB-LH | 1 |
20B-9
|
|
| *-8 | XKCF-00966 | парковка югу RH | 1 |
16B-9
|
|
| *-8 | XKCF-01236 | PARKING SUB-RH | 1 |
16B-9
|
|
| *-8 | XKCF-00966 | парковка югу RH | 1 |
18B-9
|
|
| *-8 | XKCF-01236 | PARKING SUB-RH | 1 |
18B-9
|
|
| *-8 | XKCF-00966 | парковка югу RH | 1 |
20B-9
|
|
| *-8 | XKCF-01236 | PARKING SUB-RH | 1 |
20B-9
|
|
| 10 | XKCF-01002 | ECCENTRIC SHAFT | 1 |
16B-9
|
|
| 10 | XKCF-01002 | ECCENTRIC SHAFT | 1 |
18B-9
|
|
| 10 | XKCF-01002 | ECCENTRIC SHAFT | 1 |
20B-9
|
|
| 11 | XKCF-01003 | парковка рычаг | 1 | ||
| 12 | XKCF-01004 | RETAINING RING | 4 | ||
| 13 | XKCF-01005 | Кольцо уплотнительное (О-кольцо) | 1 | ||
| 3 | XKCF-00999 | парковка крышка LH | 1 |
16B-9
|
|
| 3 | XKCF-00999 | парковка крышка LH | 1 |
18B-9
|
|
| 3 | XKCF-00999 | парковка крышка LH | 1 |
20B-9
|
|
| 4 | XKCF-01000 | парковка крышка RH | 1 |
16B-9
|
|
| 4 | XKCF-01000 | парковка крышка RH | 1 |
18B-9
|
|
| 4 | XKCF-01000 | парковка крышка RH | 1 |
20B-9
|
|
| 5 | XKCF-01001 | Поршень | 1 | ||
| 6 | XKCF-00290 | кольцо Quad | 1 | ||
| 7 | XKCF-00951 | BACK UP RING | 1 | ||
| 8 | XKCF-00291 | кольцо Quad | 1 | ||
| 9 | XKCF-00952 | BACK UP RING | 1 | ||
| K | XKCF-01241 | LEVER BUSH KIT - LH | 1 |
16B-9
|
|
| K | XKCF-01241 | LEVER BUSH KIT - LH | 1 |
18B-9
|
|
| K | XKCF-01241 | LEVER BUSH KIT - LH | 1 |
20B-9
|
|
| K | XKCF-01242 | LEVER BUSH KIT - RH | 1 |
16B-9
|
|
| K | XKCF-01242 | LEVER BUSH KIT - RH | 1 |
18B-9
|
|
| K | XKCF-01242 | LEVER BUSH KIT - RH | 1 |
20B-9
|
|
| K10 | XKCF-01239 | ECCENTRIC SHAFT | 1 |
16B-9
|
|
| K10 | XKCF-01239 | ECCENTRIC SHAFT | 1 |
18B-9
|
|
| K10 | XKCF-01239 | ECCENTRIC SHAFT | 1 |
20B-9
|
|
| K14 | XKCF-01240 | DU BUSH | 1 |
16B-9
|
|
| K14 | XKCF-01240 | DU BUSH | 1 |
18B-9
|
|
| K14 | XKCF-01240 | DU BUSH | 1 |
20B-9
|
|
| K3 | XKCF-01237 | PARKING COVER-LH | 1 |
16B-9
|
|
| K3 | XKCF-01237 | PARKING COVER-LH | 1 |
18B-9
|
|
| K3 | XKCF-01237 | PARKING COVER-LH | 1 |
20B-9
|
|
| K4 | XKCF-01238 | PARKING COVER-RH | 1 |
16B-9
|
|
| K4 | XKCF-01238 | PARKING COVER-RH | 1 |
18B-9
|
|
| K4 | XKCF-01238 | PARKING COVER-RH | 1 |
20B-9
|
