OUTER PANEL 2 погрузчика электрического Hyundai 16/18/20B-9
OUTER PANEL 2 погрузчика электрического Hyundai 16/18/20B-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6030
Наименование:OUTER PANEL 2
Версия:2014. 10.31 REV.14K

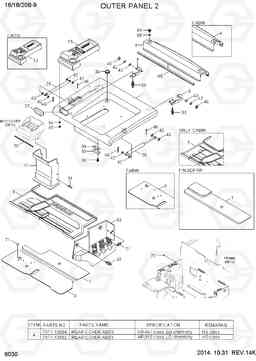

OUTER PANEL 2 16/18/20B-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 71FY-14012 | BATTERY COVER WA | 1 |
16B-9
|
|
| 1 | 71FY-14013 | BATTERY COVER WA | 1 |
16B-9
|
|
| 1 | 71FY-13014 | BATTERY COVER WA | 1 |
18B-9
|
|
| 1 | 71FY-13015 | BATTERY COVER WA | 1 |
18B-9
|
|
| 1 | 71FY-13014 | BATTERY COVER WA | 1 |
20B-9
|
|
| 1 | 71FY-13015 | BATTERY COVER WA | 1 |
20B-9
|
|
| 11 | 71FY-13142 | Крышка гидрораспределителя | 1 | ||
| 13 | 71B1-10715 | бардачок в сборе | 1 | ||
| 13 | 71B1-12710 | CONSOLE BOX ASSY | 1 |
16B-9,CABIN
|
|
| 13 | 71B1-12710 | CONSOLE BOX ASSY | 1 |
18B-9,CABIN
|
|
| 13 | 71B1-12710 | CONSOLE BOX ASSY | 1 |
20B-9,CABIN
|
|
| 21 | S132-061276 | SCREW W/WASHER CR RH | 1 | ||
| 25 | 71HT-12060 | газовая пружина в сборе | 1 | ||
| 25 | 71HT-14060 | газовая пружина в сборе | 1 |
16B-9
|
|
| 25 | 71HT-14060 | газовая пружина в сборе | 1 |
18B-9
|
|
| 25 | 71HT-14060 | газовая пружина в сборе | 1 |
20B-9
|
|
| 26 | 71HT-12050 | газовая пружина в сборе | 1 | ||
| 26 | 71HT-14050 | газовая пружина в сборе | 1 |
16B-9
|
|
| 26 | 71HT-14050 | газовая пружина в сборе | 1 |
18B-9
|
|
| 26 | 71HT-14050 | газовая пружина в сборе | 1 |
20B-9
|
|
| 27 | 71Q6-42600 | Держатель тянет | 1 | ||
| 30 | F12100190 | CUSHION | 2 | ||
| 31 | S002-060166 | SCREW-TRUSHEAD | 4 | ||
| 32 | S035-062036 | Болт | 4 | ||
| 33 | S035-082526 | Болт | 4 | ||
| 34 | S880-140030 | Уплотнительная втулка | 1 | ||
| 36 | S131-051256 | SCREW-W/WASHER | 4 | ||
| 38 | 71HU-11420 | Прокладка | 2 | ||
| 4 | 71FY-13054 | REAR COVER | 1 |
NON-UL
|
|
| 4 | 71FY-13952 | REAR COVER | 1 |
UL
|
|
| 4 | 71FY-15050 | REAR COVER | 1 |
16B-9,CABIN
|
|
| 4 | 71FY-15050 | REAR COVER | 1 |
18B-9,CABIN
|
|
| 4 | 71FY-15050 | REAR COVER | 1 |
20B-9,CABIN
|
|
| 40 | S275-08000B | Гайка самоблокирующаяся | 6 |
16B-9
|
|
| 40 | S275-08000B | Гайка самоблокирующаяся | 2 |
16B-9
|
|
| 40 | S275-08000B | Гайка самоблокирующаяся | 6 |
18B-9
|
|
| 40 | S275-08000B | Гайка самоблокирующаяся | 2 |
18B-9
|
|
| 40 | S275-08000B | Гайка самоблокирующаяся | 6 |
20B-9
|
|
| 40 | S275-08000B | Гайка самоблокирующаяся | 2 |
20B-9
|
|
| 42 | S403-08200B | Плоская шайба | 14 |
16B-9
|
|
| 42 | S403-08200B | Плоская шайба | 10 |
16B-9
|
|
| 42 | S403-08200B | Плоская шайба | 14 |
18B-9
|
|
| 42 | S403-08200B | Плоская шайба | 10 |
18B-9
|
|
| 42 | S403-08200B | Плоская шайба | 14 |
20B-9
|
|
| 42 | S403-08200B | Плоская шайба | 10 |
20B-9
|
|
| 43 | S403-10200B | Плоская шайба | 2 | ||
| 45 | S772-011000 | уплотнитель | 1 | ||
| 46 | S461-200152 | Палец | 4 | ||
| 5 | 71FY-13074 | MAT-FLOOR | 1 |
16B-9,O/H/G
|
|
| 5 | 71FY-13075 | MAT-FLOOR | 1 |
16B-9,O/H/G
|
|
| 5 | 71FY-13074 | MAT-FLOOR | 1 |
18B-9,O/H/G
|
|
| 5 | 71FY-13075 | MAT-FLOOR | 1 |
18B-9,O/H/G
|
|
| 5 | 71FY-13074 | MAT-FLOOR | 1 |
20B-9,O/H/G
|
|
| 5 | 71FY-13075 | MAT-FLOOR | 1 |
20B-9,O/H/G
|
|
| 5 | 71FY-15071 | MAT-FLOOR | 1 |
16,ONLY CABIN
|
|
| 5 | 71FY-15072 | MAT-FLOOR | 1 |
16,ONLY CABIN
|
|
| 5 | 71FY-15073 | MAT-FLOOR | 1 |
16,ONLY CABIN
|
|
| 5 | 71FY-15071 | MAT-FLOOR | 1 |
18,ONLY CABIN
|
|
| 5 | 71FY-15072 | MAT-FLOOR | 1 |
18,ONLY CABIN
|
|
| 5 | 71FY-15073 | MAT-FLOOR | 1 |
18,ONLY CABIN
|
|
| 5 | 71FY-15071 | MAT-FLOOR | 1 |
20,ONLY CABIN
|
|
| 5 | 71FY-15072 | MAT-FLOOR | 1 |
20,ONLY CABIN
|
|
| 5 | 71FY-15073 | MAT-FLOOR | 1 |
20,ONLY CABIN
|
|
| 6 | 71FY-13084 | FLOOR PLATE-FRONT | 1 |
16B-9
|
|
| 6 | 71FY-13085 | FLOOR PLATE-FRONT | 1 |
16B-9
|
|
| 6 | 71FY-13086 | FLOOR PLATE-FRONT | 1 |
16B-9
|
|
| 6 | 71FY-13084 | FLOOR PLATE-FRONT | 1 |
18B-9
|
|
| 6 | 71FY-13085 | FLOOR PLATE-FRONT | 1 |
18B-9
|
|
| 6 | 71FY-13086 | FLOOR PLATE-FRONT | 1 |
18B-9
|
|
| 6 | 71FY-13084 | FLOOR PLATE-FRONT | 1 |
20B-9
|
|
| 6 | 71FY-13085 | FLOOR PLATE-FRONT | 1 |
20B-9
|
|
| 6 | 71FY-13086 | FLOOR PLATE-FRONT | 1 |
20B-9
|
|
| 63 | 71FY-13771 | STEP-LH | 1 | ||
| 63 | 71FY-14770 | STEP-LH | 1 |
16B-9,CABIN
|
|
| 63 | 71FY-14770 | STEP-LH | 1 |
18B-9,CABIN
|
|
| 63 | 71FY-14770 | STEP-LH | 1 |
20B-9,CABIN
|
|
| 64 | S403-06500B | Плоская шайба | 4 | ||
| 65 | S275-06000B | Гайка самоблокирующаяся | 4 | ||
| 68 | 71FE-10170 | резинок | 2 | ||
| 69 | FBC0900110-01 | KNOB | 2 | ||
| 7 | 71FY-13092 | FLOOR PLATE-REAR | 1 |
16B-9,LEVER
|
|
| 7 | 71FY-13093 | FLOOR PLATE-REAR | 1 |
16B-9,LEVER
|
|
| 7 | 71FY-13092 | FLOOR PLATE-REAR | 1 |
18B-9,LEVER
|
|
| 7 | 71FY-13093 | FLOOR PLATE-REAR | 1 |
18B-9,LEVER
|
|
| 7 | 71FY-13092 | FLOOR PLATE-REAR | 1 |
20B-9,LEVER
|
|
| 7 | 71FY-13093 | FLOOR PLATE-REAR | 1 |
20B-9,LEVER
|
|
| 7 | 71FY-13791 | FLOOR PLATE-REAR | 1 |
16B-9,FINGERTIP
|
|
| 7 | 71FY-13792 | FLOOR PLATE-REAR | 1 |
16B-9,FINGERTIP
|
|
| 7 | 71FY-13791 | FLOOR PLATE-REAR | 1 |
18B-9,FINGERTIP
|
|
| 7 | 71FY-13792 | FLOOR PLATE-REAR | 1 |
18B-9,FINGERTIP
|
|
| 7 | 71FY-13791 | FLOOR PLATE-REAR | 1 |
20B-9,FINGERTIP
|
|
| 7 | 71FY-13792 | FLOOR PLATE-REAR | 1 |
20B-9,FINGERTIP
|
|
| 70 | S791-016021 | GROMMET-PLATE | 1 |
16B-9
|
|
| 70 | S791-016021 | GROMMET-PLATE | 1 |
18B-9
|
|
| 70 | S791-016021 | GROMMET-PLATE | 1 |
20B-9
|
|
| 71 | 71B1-31210 | CAP | 3 |
16B-9
|
|
| 71 | 71B1-31210 | CAP | 3 |
18B-9
|
|
| 71 | 71B1-31210 | CAP | 3 |
20B-9
|
|
| 72 | 41QA-40170 | Заглушка | 2 |
16B-9
|
|
| 72 | 41QA-40170 | Заглушка | 2 |
18B-9
|
|
| 72 | 41QA-40170 | Заглушка | 2 |
20B-9
|
|
| 8 | 71FY-13113 | HINGE WA-LH | 1 |
16B-9
|
|
| 8 | 71FY-13114 | HINGE WA-LH | 1 |
16B-9
|
|
| 8 | 71FY-13113 | HINGE WA-LH | 1 |
18B-9
|
|
| 8 | 71FY-13114 | HINGE WA-LH | 1 |
18B-9
|
|
| 8 | 71FY-13113 | HINGE WA-LH | 1 |
20B-9
|
|
| 8 | 71FY-13114 | HINGE WA-LH | 1 |
20B-9
|
|
| 9 | 71FY-13133 | HINGE WA-RH | 1 |
16B-9
|
|
| 9 | 71FY-13134 | HINGE WA-RH | 1 |
16B-9
|
|
| 9 | 71FY-13133 | HINGE WA-RH | 1 |
18B-9
|
|
| 9 | 71FY-13134 | HINGE WA-RH | 1 |
18B-9
|
|
| 9 | 71FY-13133 | HINGE WA-RH | 1 |
20B-9
|
|
| 9 | 71FY-13134 | HINGE WA-RH | 1 |
20B-9
|
