STEERING UNIT погрузчика дизельного Hyundai 180D-7E
STEERING UNIT погрузчика дизельного Hyundai 180D-7E со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3510
Наименование:STEERING UNIT
Версия:

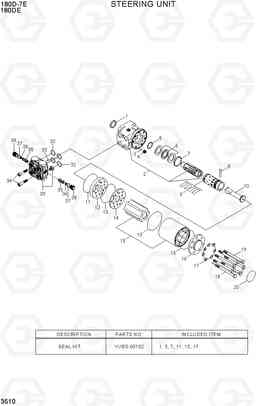

STEERING UNIT 180D-7E
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 31LP-30010 | рулевой узел (LS) | 1 | ||
| 10 | @ | CARDAN SHAFT | 1 | ||
| 12 | @ | INTERMEDIATE PLATE | 1 | ||
| 14 | @ | DISTRIBUTOR PLATE | 1 | ||
| 15 | @ | GEARWHEEL SET | 1 | ||
| 16 | @ | END COVER | 1 | ||
| 18 | @ | SCREW WITH PIN | 1 | ||
| 19 | @ | SCREW | 6 | ||
| 2 | @ | HOUSING, SPOOL | 1 | ||
| 3 | @ | BALL | 1 | ||
| 31 | YUBS-00117 | О комплект колец | 4 | ||
| 33 | @ | ROLLED PIN | 1 | ||
| 34 | @ | SCREW | 2 | ||
| 35 | @ | SHOCK VALVE | 2 | ||
| 36 | @ | SPRING | 2 | ||
| 37 | @ | O-RING | 2 | ||
| 38 | @ | PLUG | 2 | ||
| 39 | @ | HOUSING, CHECK VALVE | 1 | ||
| 4 | @ | THREAD BUSHING | 1 | ||
| 6 | @ | BEARING ASSEMBLY | 1 | ||
| 7 | @ | RING | 1 | ||
| 8 | @ | CROSS PIN | 1 | ||
| 9 | @ | SET OF SPRINGS | 1 | ||
| K | YUBS-00102 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 |
SEE ILLUST
|
|
| K1 | @ | DUST SEAL RING | 1 | ||
| K11 | @ | O-RING | 3 | ||
| K13 | @ | O-RING | 1 | ||
| K17 | @ | WASHER | 7 | ||
| K5 | @ | ROTO RING | 1 |
