OVERHEAD GUARD погрузчика электрического Hyundai 20/25/30/32BC-9
OVERHEAD GUARD погрузчика электрического Hyundai 20/25/30/32BC-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6040
Наименование:OVERHEAD GUARD
Версия:2014. 2.28 REV.14B

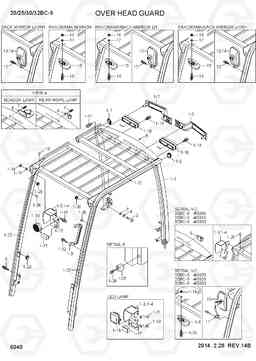

OVERHEAD GUARD 20/25/30/32BC-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 71B2-32004 | HEAD GUARD SUB ASSY | 1 |
20BC-9
|
|
| 1 | 71B2-32005 | HEAD GUARD SUB ASSY | 1 |
20BC-9
|
|
| 1 | 71B2-32004 | HEAD GUARD SUB ASSY | 1 |
25BC-9
|
|
| 1 | 71B2-32005 | HEAD GUARD SUB ASSY | 1 |
25BC-9
|
|
| 1 | 71B2-31005 | HEAD GUARD SUB ASSY | 1 |
30BC-9
|
|
| 1 | 71B2-31003 | HEAD GUARD SUB ASSY | 1 |
32BC-9
|
|
| 1 | 71B2-31005 | HEAD GUARD SUB ASSY | 1 |
32BC-9
|
|
| 1 | 72B2-32000 | HEAD GUARD SUB ASSY(LED) | 1 |
20BC-9,LED
|
|
| 1 | 72B2-32000 | HEAD GUARD SUB ASSY(LED) | 1 |
25BC-9,LED
|
|
| 1 | 72B2-31000 | HEAD GUARD SUB ASSY(LED) | 1 |
30BC-9,LED
|
|
| 1 | 72B2-31000 | HEAD GUARD SUB ASSY(LED) | 1 |
32BC-9,LED
|
|
| 1-1 | 71B2-32014 | HEAD GUARD WA | 1 |
20/25BC-9
|
|
| 1-1 | 71B2-30016 | HEAD GUARD WA | 1 |
30BC-9
|
|
| 1-1 | 71B2-30015 | HEAD GUARD WA | 1 |
32BC-9
|
|
| 1-1 | 71B2-30016 | HEAD GUARD WA | 1 |
32BC-9
|
|
| 1-11 | S132-062076 | SCREW-W/WASHER | 4 | ||
| 1-12 | S132-082026 | SCREW-W/WASHER | 4 | ||
| 1-13 | S132-082526 | SCREW-W/WASHER | 4 | ||
| 1-14 | S275-08000B | Гайка самоблокирующаяся | 6 |
20BC-9
|
|
| 1-14 | S275-08000B | Гайка самоблокирующаяся | 4 |
20BC-9
|
|
| 1-14 | S275-08000B | Гайка самоблокирующаяся | 6 |
25BC-9
|
|
| 1-14 | S275-08000B | Гайка самоблокирующаяся | 4 |
25BC-9
|
|
| 1-14 | S275-08000B | Гайка самоблокирующаяся | 4 |
30BC-9
|
|
| 1-14 | S275-08000B | Гайка самоблокирующаяся | 6 |
32BC-9
|
|
| 1-14 | S275-08000B | Гайка самоблокирующаяся | 4 |
32BC-9
|
|
| 1-15 | S403-08200B | Плоская шайба | 6 | ||
| 1-16 | 21FY-97010 | комбинированный фонарь | 2 | ||
| 1-17 | 21FH-77030 | лампа сигнала поворота | 2 | ||
| 1-17 | 21HN-42811 | FRONT TURN LAMP(LED) | 2 |
20BC-9
|
|
| 1-17 | 21HN-42811 | FRONT TURN LAMP(LED) | 2 |
25BC-9
|
|
| 1-17 | 21HN-42811 | FRONT TURN LAMP(LED) | 2 |
30BC-9
|
|
| 1-17 | 21HN-42811 | FRONT TURN LAMP(LED) | 2 |
32BC-9
|
|
| 1-18 | F12840011 | LAMP SUB ASSY-WORK | 2 | ||
| 1-18 | 21WD-31160 | Фара светодиодная | 2 |
20BC-9
|
|
| 1-18 | 21WD-31160 | Фара светодиодная | 2 |
25BC-9
|
|
| 1-18 | 21WD-31160 | Фара светодиодная | 2 |
30BC-9
|
|
| 1-18 | 21WD-31160 | Фара светодиодная | 2 |
32BC-9
|
|
| 1-19 | S131-051546 | SCREW-W/WASHER | 4 | ||
| 1-2 | 71FY-33202 | Крышка comb.lamp | 2 | ||
| 1-20 | S681-190400 | Уплотнительная втулка | 2 | ||
| 1-21 | 21HU-95042 | Жгут задних | 1 | ||
| 1-22 | 21B2-95020 | Жгут передний | 2 | ||
| 1-23 | S681-290400 | Уплотнительная втулка | 3 | ||
| 1-24 | S035-085026 | Болт | 2 |
20BC-9
|
|
| 1-24 | S035-085026 | Болт | 2 |
25/32BC-9
|
|
| 1-25 | S880-132040 | Уплотнительная втулка | 1 | ||
| 1-26 | 71B1-31210 | CAP | 1 |
20BC-9
|
|
| 1-26 | 71B1-31210 | CAP | 2 |
20BC-9
|
|
| 1-26 | 71B1-31210 | CAP | 1 |
25BC-9
|
|
| 1-26 | 71B1-31210 | CAP | 2 |
25BC-9
|
|
| 1-26 | 71B1-31210 | CAP | 2 |
30BC-9
|
|
| 1-26 | 71B1-31210 | CAP | 2 |
32BC-9
|
|
| 1-27 | 71FY-33370 | PLUG-OHG | 2 |
20BC-9
|
|
| 1-27 | 71FY-33370 | PLUG-OHG | 2 |
25BC-9
|
|
| 1-27 | 71FY-33370 | PLUG-OHG | 2 |
30BC-9
|
|
| 1-27 | 71FY-33370 | PLUG-OHG | 2 |
32BC-9
|
|
| 1-28 | S131-042526 | SCREW-W/WASHER | 2 |
20BC-9
|
|
| 1-28 | S131-042526 | SCREW-W/WASHER | 2 |
25BC-9
|
|
| 1-28 | S131-042526 | SCREW-W/WASHER | 2 |
30BC-9
|
|
| 1-28 | S131-042526 | SCREW-W/WASHER | 2 |
32BC-9
|
|
| 1-29 | 71B1-31200 | CAP | 4 |
20BC-9
|
|
| 1-29 | 71B1-31200 | CAP | 4 |
25BC-9
|
|
| 1-29 | 71B1-31200 | CAP | 4 |
30BC-9
|
|
| 1-29 | 71B1-31200 | CAP | 4 |
32BC-9
|
|
| 1-3 | 71B2-31210 | LH Кронштейн лампы | 1 |
20BC-9
|
|
| 1-3 | 71B2-31211 | LH BRACKET-LAMP | 1 |
20BC-9
|
|
| 1-3 | 71B2-31210 | LH Кронштейн лампы | 1 |
25BC-9
|
|
| 1-3 | 71B2-31211 | LH BRACKET-LAMP | 1 |
25BC-9
|
|
| 1-3 | 71B2-31211 | LH BRACKET-LAMP | 1 |
30BC-9
|
|
| 1-3 | 71B2-31210 | LH Кронштейн лампы | 1 |
32BC-9
|
|
| 1-3 | 71B2-31211 | LH BRACKET-LAMP | 1 |
32BC-9
|
|
| 1-3 | 71B2-30360 | LH BRACKET-LED LAMP | 1 |
20BC-9
|
|
| 1-3 | 71B2-30360 | LH BRACKET-LED LAMP | 1 |
25BC-9
|
|
| 1-3 | 71B2-30360 | LH BRACKET-LED LAMP | 1 |
30BC-9
|
|
| 1-3 | 71B2-30360 | LH BRACKET-LED LAMP | 1 |
32BC-9
|
|
| 1-30 | 21HU-95280 | HARNESS-TURN LAMP,LED | 2 |
20BC-9
|
|
| 1-30 | 21HU-95280 | HARNESS-TURN LAMP,LED | 2 |
25BC-9
|
|
| 1-30 | 21HU-95280 | HARNESS-TURN LAMP,LED | 2 |
30BC-9
|
|
| 1-30 | 21HU-95280 | HARNESS-TURN LAMP,LED | 2 |
32BC-9
|
|
| 1-31 | 21HT-95120 | HARNESS-WORK LAMP,LED | 2 |
20BC-9
|
|
| 1-31 | 21HT-95120 | HARNESS-WORK LAMP,LED | 2 |
25BC-9
|
|
| 1-31 | 21HT-95120 | HARNESS-WORK LAMP,LED | 2 |
30BC-9
|
|
| 1-31 | 21HT-95120 | HARNESS-WORK LAMP,LED | 2 |
32BC-9
|
|
| 1-4 | 71B2-31220 | RH Кронштейн лампы | 1 |
20BC-9
|
|
| 1-4 | 71B2-31221 | RH BRACKET-LAMP | 1 |
20BC-9
|
|
| 1-4 | 71B2-31220 | RH Кронштейн лампы | 1 |
25BC-9
|
|
| 1-4 | 71B2-31221 | RH BRACKET-LAMP | 1 |
25BC-9
|
|
| 1-4 | 71B2-31221 | RH BRACKET-LAMP | 1 |
30BC-9
|
|
| 1-4 | 71B2-31220 | RH Кронштейн лампы | 1 |
32BC-9
|
|
| 1-4 | 71B2-31221 | RH BRACKET-LAMP | 1 |
32BC-9
|
|
| 1-4 | 71B2-30370 | RH BRACKET-LED LAMP | 1 |
20BC-9
|
|
| 1-4 | 71B2-30370 | RH BRACKET-LED LAMP | 1 |
25BC-9
|
|
| 1-4 | 71B2-30370 | RH BRACKET-LED LAMP | 1 |
30BC-9
|
|
| 1-4 | 71B2-30370 | RH BRACKET-LED LAMP | 1 |
32BC-9
|
|
| 1-5 | 71B1-30500 | MIRROR-PANORAMIC | 1 |
20BC-9
|
|
| 1-5 | 71B1-30500 | MIRROR-PANORAMIC | 1 |
25/32BC-9
|
|
| 1-6 | 79FV-30260 | Крышка резиновая | 2 |
20BC-9
|
|
| 1-6 | 79FV-30260 | Крышка резиновая | 3 |
20BC-9
|
|
| 1-6 | 79FV-30260 | Крышка резиновая | 2 |
25BC-9
|
|
| 1-6 | 79FV-30260 | Крышка резиновая | 3 |
25BC-9
|
|
| 1-6 | 79FV-30260 | Крышка резиновая | 3 |
30BC-9
|
|
| 1-6 | 79FV-30260 | Крышка резиновая | 2 |
32BC-9
|
|
| 1-6 | 79FV-30260 | Крышка резиновая | 3 |
32BC-9
|
|
| 1-7 | 79FV-30250 | Крышка резиновая | 2 |
20BC-9
|
|
| 1-7 | 79FV-30250 | Крышка резиновая | 3 |
20BC-9
|
|
| 1-7 | 79FV-30250 | Крышка резиновая | 2 |
25BC-9
|
|
| 1-7 | 79FV-30250 | Крышка резиновая | 3 |
25BC-9
|
|
| 1-7 | 79FV-30250 | Крышка резиновая | 3 |
30BC-9
|
|
| 1-7 | 79FV-30250 | Крышка резиновая | 2 |
32BC-9
|
|
| 1-7 | 79FV-30250 | Крышка резиновая | 3 |
32BC-9
|
|
| 1-8 | 71FH-30050 | GRIP | 1 | ||
| 10 | 71HA-59900 | зеркало назад | 1 |
20,B/MIRROR
|
|
| 10 | 71HA-59900 | зеркало назад | 1 |
25/32,B/MIRROR
|
|
| 11 | 71FG-30360 | кронштейн зеркала, LH | 1 |
20,B/MIRROR
|
|
| 11 | 71FG-30360 | кронштейн зеркала, LH | 1 |
25/32,B/MIRROR
|
|
| 12 | S132-082026 | SCREW-W/WASHER | 1 |
20/25,B/MIRROR
|
|
| 12 | S132-082026 | SCREW-W/WASHER | 1 |
20/25,B/MIRROR
|
|
| 12 | S132-082026 | SCREW-W/WASHER | 1 |
20/25,B/MIRROR
|
|
| 12 | S132-082026 | SCREW-W/WASHER | 1 |
20/25,B/MIRROR
|
|
| 12 | S132-082026 | SCREW-W/WASHER | 1 |
30,B/MIRROR
|
|
| 12 | S132-082026 | SCREW-W/WASHER | 1 |
30,B/MIRROR
|
|
| 12 | S132-082026 | SCREW-W/WASHER | 1 |
30,B/MIRROR
|
|
| 12 | S132-082026 | SCREW-W/WASHER | 1 |
32,B/MIRROR
|
|
| 13 | 71FG-30380 | MIRROR ASSY LH | 1 |
20BC-9
|
|
| 13 | 71FG-30380 | MIRROR ASSY LH | 1 |
25BC-9
|
|
| 13 | 71FG-30380 | MIRROR ASSY LH | 1 |
30BC-9
|
|
| 13 | 71FG-30380 | MIRROR ASSY LH | 1 |
32BC-9
|
|
| 14 | 71FG-30390 | MIRROR ASSY RH | 1 |
20BC-9
|
|
| 14 | 71FG-30390 | MIRROR ASSY RH | 1 |
25BC-9
|
|
| 14 | 71FG-30390 | MIRROR ASSY RH | 1 |
30BC-9
|
|
| 14 | 71FG-30390 | MIRROR ASSY RH | 1 |
32BC-9
|
|
| 15 | 71B1-30500 | MIRROR-PANORAMIC | 1 |
20BC-9
|
|
| 15 | 71B1-30500 | MIRROR-PANORAMIC | 1 |
25BC-9
|
|
| 15 | 71B1-30500 | MIRROR-PANORAMIC | 1 |
30BC-9
|
|
| 15 | 71B1-30500 | MIRROR-PANORAMIC | 1 |
32BC-9
|
|
| 16 | S035-085026 | Болт | 2 |
20BC-9
|
|
| 16 | S035-085026 | Болт | 2 |
25BC-9
|
|
| 16 | S035-085026 | Болт | 2 |
30BC-9
|
|
| 16 | S035-085026 | Болт | 2 |
32BC-9
|
|
| 17 | S403-08200B | Плоская шайба | 2 |
20BC-9
|
|
| 17 | S403-08200B | Плоская шайба | 2 |
25BC-9
|
|
| 17 | S403-08200B | Плоская шайба | 2 |
30BC-9
|
|
| 17 | S403-08200B | Плоская шайба | 2 |
32BC-9
|
|
| 18 | S275-08000B | Гайка самоблокирующаяся | 2 |
20BC-9
|
|
| 18 | S275-08000B | Гайка самоблокирующаяся | 2 |
25BC-9
|
|
| 18 | S275-08000B | Гайка самоблокирующаяся | 2 |
30BC-9
|
|
| 18 | S275-08000B | Гайка самоблокирующаяся | 2 |
32BC-9
|
|
| 19 | 71B1-31200 | CAP | 4 |
20BC-9
|
|
| 19 | 71B1-31200 | CAP | 4 |
25BC-9
|
|
| 19 | 71B1-31200 | CAP | 4 |
30BC-9
|
|
| 19 | 71B1-31200 | CAP | 4 |
32BC-9
|
|
| 2 | S017-160306 | Болт с шестигранной головкой (под шестигранник) | 2 | ||
| 3 | S403-162006 | Плоская шайба | 2 | ||
| 4 | S411-160006 | Шайба пружинная | 2 | ||
| 5 | S037-122556 | Болт | 4 | ||
| 6 | 71FY-33350 | BRACKET-LAMP | 1 |
20,R/WORK LAMP
|
|
| 6 | 71FY-33351 | BRACKET-LAMP | 1 |
20,R/WORK LAMP
|
|
| 6 | 71FY-33350 | BRACKET-LAMP | 1 |
25,R/WORK LAMP
|
|
| 6 | 71FY-33351 | BRACKET-LAMP | 1 |
25,R/WORK LAMP
|
|
| 6 | 71FY-33351 | BRACKET-LAMP | 1 |
30,R/WORK LAMP
|
|
| 6 | 71FY-33350 | BRACKET-LAMP | 1 |
32,R/WORK LAMP
|
|
| 6 | 71FY-33351 | BRACKET-LAMP | 1 |
32,R/WORK LAMP
|
|
| 6 | 71FY-33360 | BRACKET-BEACON | 1 |
20,BEACON LAMP
|
|
| 6 | 71FY-33361 | BRACKET-BEACON | 1 |
20,BEACON LAMP
|
|
| 6 | 71FY-33360 | BRACKET-BEACON | 1 |
25,BEACON LAMP
|
|
| 6 | 71FY-33361 | BRACKET-BEACON | 1 |
25,BEACON LAMP
|
|
| 6 | 71FY-33361 | BRACKET-BEACON | 1 |
30,BEACON LAMP
|
|
| 6 | 71FY-33360 | BRACKET-BEACON | 1 |
32,BEACON LAMP
|
|
| 6 | 71FY-33361 | BRACKET-BEACON | 1 |
32,BEACON LAMP
|
|
| 7 | S035-061526 | Болт | 2 | ||
| 8 | 71FY-33370 | PLUG-OHG | 2 |
32BC-9
|
|
| 9 | S131-042526 | SCREW-W/WASHER | 2 |
32BC-9
|
