STEERING UNIT погрузчика дизельного Hyundai 20/25/30/33DF-7

STEERING UNIT погрузчика дизельного Hyundai 20/25/30/33DF-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3410
Наименование:STEERING UNIT
Версия:2014. 6.30 REV.14F

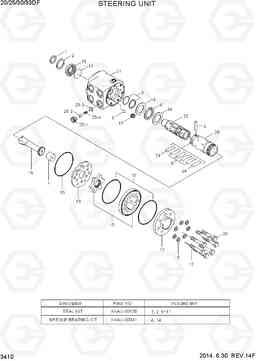

STEERING UNIT 20/25/30/33DF-7
3410 STEERING UNIT 20/25/30/33DF-7, Hyundai
Поз. Код Наименование Кол Прим.
* 31HA-04000 STEERING UNIT 1
20DF, SEE 3050
* 31HA-04001 STEERING UNIT 1
20DF, SEE 3050
* 31HA-04002 STEERING UNIT(LS) 1
20DF, SEE 3050
* 31HA-04000 STEERING UNIT 1
25DF, SEE 3050
* 31HA-04001 STEERING UNIT 1
25DF, SEE 3050
* 31HA-04002 STEERING UNIT(LS) 1
25DF, SEE 3050
* 31HA-04000 STEERING UNIT 1
30DF, SEE 3050
* 31HA-04001 STEERING UNIT 1
30DF, SEE 3050
* 31HA-04002 STEERING UNIT(LS) 1
30DF, SEE 3050
* 31HA-04000 STEERING UNIT 1
33DF, SEE 3050
* 31HA-04001 STEERING UNIT 1
33DF, SEE 3050
* 31HA-04002 STEERING UNIT(LS) 1
33DF, SEE 3050
12 @ ROLLED SCREW 1
13 @ GEROTOR SET 1
15 @ SCREW-BORE 1
16 @ DRIVE 1
17 @ CAP-END 1
18 @ BUSHING-GLAND 1
19 @ PLATE 1
2 @ SEAL-RETAINING 1
20 @ CAP SCREW 6
21 @ HOUSING 1
22 @ SPOOL 1
23 @ SLEEVE 1
24 @ SPRING-PLATE 2
25 @ P-PORT CHECK VALVE 1
25-1 @ PLUG 1
25-2 @ POPPET 1
25-3 @ SPRING SEAT 1
25-4 @ SPRING 1
5 @ BALL 1
6 @ PIN 1
7 @ SPACER 1
8 @ SPRING-CENTERING 4
K XKAU-00130 Ремкомплект / комплект уплотнений (ремкомплект) 1
SEE ILLUST
K1 @ SEAL-DUST 1
K10 @ O-RING 3
K11 @ O-RING 1
K3 @ SEAL-CAP 1
K9 @ WASHER 7
S XKAU-00041 NEEDLE BEARING KIT 1
SEE ILLUST
S14 @ RACE-BEARING 2
S4 @ BEARING-THRUST 1
