STEERING UNIT погрузчика дизельного Hyundai 20/25/30/33DF-7T
STEERING UNIT погрузчика дизельного Hyundai 20/25/30/33DF-7T со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3410
Наименование:STEERING UNIT
Версия:2014. 6.30 REV.14F

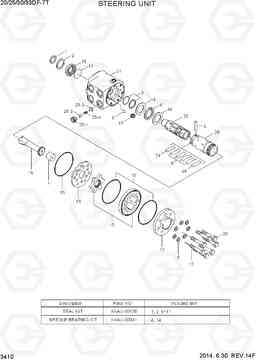

STEERING UNIT 20/25/30/33DF-7T
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 31HA-04000 | STEERING UNIT | 1 |
20DT,SEE 3050
|
|
| * | 31HA-04001 | STEERING UNIT | 1 |
20DT,SEE 3050
|
|
| * | 31HA-04002 | STEERING UNIT(LS) | 1 |
20DT,SEE 3050
|
|
| * | 31HA-04000 | STEERING UNIT | 1 |
25DT,SEE 3050
|
|
| * | 31HA-04001 | STEERING UNIT | 1 |
25DT,SEE 3050
|
|
| * | 31HA-04002 | STEERING UNIT(LS) | 1 |
25DT,SEE 3050
|
|
| * | 31HA-04000 | STEERING UNIT | 1 |
30DT,SEE 3050
|
|
| * | 31HA-04001 | STEERING UNIT | 1 |
30DT,SEE 3050
|
|
| * | 31HA-04002 | STEERING UNIT(LS) | 1 |
30DT,SEE 3050
|
|
| * | 31HA-04000 | STEERING UNIT | 1 |
33DT,SEE 3050
|
|
| * | 31HA-04001 | STEERING UNIT | 1 |
33DT,SEE 3050
|
|
| * | 31HA-04002 | STEERING UNIT(LS) | 1 |
33DT,SEE 3050
|
|
| 12 | @ | ROLLED SCREW | 1 | ||
| 13 | @ | GEROTOR SET | 1 | ||
| 15 | @ | SCREW-BORE | 1 | ||
| 16 | @ | DRIVE | 1 | ||
| 17 | @ | CAP-END | 1 | ||
| 18 | @ | BUSHING-GLAND | 1 | ||
| 19 | @ | PLATE | 1 | ||
| 2 | @ | SEAL-RETAINING | 1 | ||
| 20 | @ | CAP SCREW | 6 | ||
| 21 | @ | HOUSING | 1 | ||
| 22 | @ | SPOOL | 1 | ||
| 23 | @ | SLEEVE | 1 | ||
| 24 | @ | SPRING-PLATE | 2 | ||
| 25 | @ | P-PORT CHECK VALVE | 1 | ||
| 25-1 | @ | PLUG | 1 | ||
| 25-2 | @ | POPPET | 1 | ||
| 25-3 | @ | SPRING SEAT | 1 | ||
| 25-4 | @ | SPRING | 1 | ||
| 5 | @ | BALL | 1 | ||
| 6 | @ | PIN | 1 | ||
| 7 | @ | SPACER | 1 | ||
| 8 | @ | SPRING-CENTERING | 4 | ||
| K | XKAU-00130 | Ремкомплект / комплект уплотнений (ремкомплект) | 1 |
SEE ILLUST
|
|
| K1 | @ | SEAL-DUST | 1 | ||
| K10 | @ | O-RING | 3 | ||
| K11 | @ | O-RING | 1 | ||
| K3 | @ | SEAL-CAP | 1 | ||
| K9 | @ | WASHER | 7 | ||
| S | XKAU-00041 | NEEDLE BEARING KIT | 1 |
SEE ILLUST
|
|
| S14 | @ | RACE-BEARING | 2 | ||
| S4 | @ | BEARING-THRUST | 1 |
