Каталог запчастей
-
Hyundai
-
20G/25G/30G-7

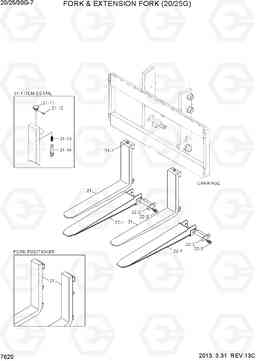

- FORK & EXTENSION FORK (20/25G)
FORK & EXTENSION FORK (20/25G) погрузчика на сжиженном газе Hyundai 20G/25G/30G-7
FORK & EXTENSION FORK (20/25G) погрузчика на сжиженном газе Hyundai 20G/25G/30G-7 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7620
Наименование:FORK & EXTENSION FORK (20/25G)
Версия:2013. 3.31 REV.13C
FORK & EXTENSION FORK (20/25G) 20G/25G/30G-7
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 21 | 64HN-21010 | Вилка в сборе (900) | 2 |
CASCADE
|
|
| 21 | 64HN-21020 | Вилка в сборе (1000) | 2 |
CASCADE
|
|
| 21 | 64HN-21030 | Вилка в сборе (1050) | 2 |
CASCADE
|
|
| 21 | 64HN-21040 | Вилка в сборе (1200) | 2 |
CASCADE
|
|
| 21 | 64HN-21050 | Вилка в сборе (1350) | 2 |
CASCADE
|
|
| 21 | 64HN-21060 | Вилка в сборе (1500) | 2 |
CASCADE
|
|
| 21 | 64HN-21070 | Вилка в сборе (1650) | 2 |
CASCADE
|
|
| 21 | 64HN-21080 | Вилка в сборе (1800) | 2 |
CASCADE
|
|
| 21 | 64HN-21090 | Вилка в сборе (2100) | 2 |
CASCADE
|
|
| 21 | 64HN-16010 | FORK ASSY(900,FP,LH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16020 | FORK ASSY(1000,FP,LH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16030 | FORK ASSY(1050,FP,LH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16040 | FORK ASSY(1200,FP,LH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16050 | FORK ASSY(1350,FP,LH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16060 | FORK ASSY(1500,FP,LH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16070 | FORK ASSY(1650,FP,LH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16080 | FORK ASSY(1800,FP,LH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16090 | FORK ASSY(2100,FP,LH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16210 | FORK ASSY(900,FP,RH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16220 | FORK ASSY(1000,FP,RH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16230 | FORK ASSY(1050,FP,RH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16240 | FORK ASSY(1200,FP,RH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16250 | FORK ASSY(1350,FP,RH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16260 | FORK ASSY(1500,FP,RH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16270 | FORK ASSY(1650,FP,RH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16280 | FORK ASSY(1800,FP,RH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16290 | FORK ASSY(2100,FP,RH) | 1 |
20G/FORK POSIT
|
|
| 21 | 64HN-16010 | FORK ASSY(900,FP,LH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16020 | FORK ASSY(1000,FP,LH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16030 | FORK ASSY(1050,FP,LH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16040 | FORK ASSY(1200,FP,LH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16050 | FORK ASSY(1350,FP,LH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16060 | FORK ASSY(1500,FP,LH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16070 | FORK ASSY(1650,FP,LH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16080 | FORK ASSY(1800,FP,LH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16090 | FORK ASSY(2100,FP,LH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16210 | FORK ASSY(900,FP,RH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16220 | FORK ASSY(1000,FP,RH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16230 | FORK ASSY(1050,FP,RH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16240 | FORK ASSY(1200,FP,RH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16250 | FORK ASSY(1350,FP,RH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16260 | FORK ASSY(1500,FP,RH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16270 | FORK ASSY(1650,FP,RH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16280 | FORK ASSY(1800,FP,RH) | 1 |
25G/FORK POSIT
|
|
| 21 | 64HN-16290 | FORK ASSY(2100,FP,RH) | 1 |
25G/FORK POSIT
|
|
| 21-1 | K2PK-M | PIN ASSY (1,5 ~ 2.5ton) | 1 | ||
| 22 | 69FG-82010 | доб вилка в сборе (1300) | 2 | ||
| 22 | 69FG-82020 | доб вилка в сборе (1500) | 2 | ||
| 22 | 69FG-82030 | доб вилка в сборе (1700) | 2 | ||
| 22 | 69FG-82040 | доб вилка в сборе (1800) | 2 | ||
| 22-1 | 69FG-82100 | доб вилка (1300) | 1 | ||
| 22-1 | 69FG-82200 | доб вилка (1500) | 1 | ||
| 22-1 | 69FG-82300 | доб вилка (1700) | 1 | ||
| 22-1 | 69FG-82400 | доб вилка (1800) | 1 | ||
| 22-2 | 69FJ-81500 | LOCKING PIN | 1 | ||
| 22-3 | S037-102022 | Болт | 1 | ||
| N21-11 | KNOB-M | KNOB | 1 | ||
| N21-12 | RP-M | контактный проката | 1 | ||
| N21-13 | K2S-M | Пружина | 1 | ||
| N21-14 | K2PIN-M | Палец | 1 |
