Каталог запчастей
-
Hyundai
-
22/25/30/32/35B-9
- CABLE (30/32/35B-9.ZAPI)
CABLE (30/32/35B-9.ZAPI) погрузчика электрического Hyundai 22/25/30/32/35B-9
CABLE (30/32/35B-9.ZAPI) погрузчика электрического Hyundai 22/25/30/32/35B-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:1046
Наименование:CABLE (30/32/35B-9.ZAPI)
Версия:2014. 5.31 REV.14E

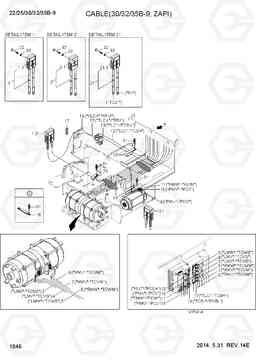

CABLE (30/32/35B-9.ZAPI) 22/25/30/32/35B-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 21B1-96500 | CABLE-BATTERY(ZAPI) | 1 |
30B-9,NON-KIA
|
|
| 1 | 21B1-96501 | CABLE-BATTERY(ZAPI) | 1 |
30B-9,NON-KIA
|
|
| 1 | 21B1-96500 | CABLE-BATTERY(ZAPI) | 1 |
32B-9,NON-KIA
|
|
| 1 | 21B1-96501 | CABLE-BATTERY(ZAPI) | 1 |
32B-9,NON-KIA
|
|
| 1 | 21B1-96500 | CABLE-BATTERY(ZAPI) | 1 |
35B-9,NON-KIA
|
|
| 1 | 21B1-96501 | CABLE-BATTERY(ZAPI) | 1 |
35B-9,NON-KIA
|
|
| 1-1 | 21FH-01100 | разъем батареи | 1 | ||
| 10 | 21B1-96091 | CABLE | 1 | ||
| 11 | 21B1-96600 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 11 | 21B1-96601 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 11 | 21B1-96600 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 11 | 21B1-96601 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 11 | 21B1-96600 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 11 | 21B1-96601 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 12 | 21B1-96610 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 12 | 21B1-96611 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 12 | 21B1-96610 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 12 | 21B1-96611 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 12 | 21B1-96610 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 12 | 21B1-96611 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 13 | 21B1-96161 | CABLE | 1 | ||
| 14 | 21B1-96630 | CABLE(ZAPI) | 1 | ||
| 15 | 21B1-96190 | CABLE | 1 | ||
| 16 | 21B1-96200 | CABLE | 1 | ||
| 17 | 21B1-92100 | шин | 1 | ||
| 18 | 21FH-72041 | Кронштейн жгута | 2 | ||
| 19 | 31F7-70450 | Зажим трубки | 2 | ||
| 2 | 21B1-96510 | CABLE-BATTERY(ZAPI) | 1 |
30B-9
|
|
| 2 | 21B1-96511 | CABLE-BATTERY(ZAPI) | 1 |
30B-9
|
|
| 2 | 21B1-96510 | CABLE-BATTERY(ZAPI) | 1 |
32B-9
|
|
| 2 | 21B1-96511 | CABLE-BATTERY(ZAPI) | 1 |
32B-9
|
|
| 2 | 21B1-96510 | CABLE-BATTERY(ZAPI) | 1 |
35B-9
|
|
| 2 | 21B1-96511 | CABLE-BATTERY(ZAPI) | 1 |
35B-9
|
|
| 2-1 | B52820030 | Разъем sbe320 | 1 | ||
| 20 | 31L6-02460 | Зажим трубки | 1 | ||
| 21 | 21B1-96760 | CABLE-BATTERY(ZAPI) | 1 |
30,NON-CE,KIA
|
|
| 21 | 21B1-96760 | CABLE-BATTERY(ZAPI) | 1 |
32,NON-CE,KIA
|
|
| 21 | 21B1-96760 | CABLE-BATTERY(ZAPI) | 1 |
35,NON-CE,KIA
|
|
| 3 | 21B1-96520 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 3 | 21B1-96521 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 3 | 21B1-96520 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 3 | 21B1-96521 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 3 | 21B1-96520 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 3 | 21B1-96521 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 31 | S035-081526 | Болт | 7 | ||
| 32 | S161-060406 | Винт с крестообразным шлицем | 4 | ||
| 33 | S411-060006 | Шайба пружинная | 4 | ||
| 4 | 21B1-96530 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 4 | 21B1-96531 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 4 | 21B1-96530 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 4 | 21B1-96531 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 4 | 21B1-96530 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 4 | 21B1-96531 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 5 | 21B1-96540 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 5 | 21B1-96541 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 5 | 21B1-96540 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 5 | 21B1-96541 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 5 | 21B1-96540 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 5 | 21B1-96541 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 6 | 21B1-96550 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 6 | 21B1-96551 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 6 | 21B1-96550 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 6 | 21B1-96551 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 6 | 21B1-96550 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 6 | 21B1-96551 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 7 | 21B1-96560 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 7 | 21B1-96561 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 7 | 21B1-96560 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 7 | 21B1-96561 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 7 | 21B1-96560 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 7 | 21B1-96561 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 8 | 21B1-96570 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 8 | 21B1-96571 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 8 | 21B1-96570 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 8 | 21B1-96571 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 8 | 21B1-96570 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 8 | 21B1-96571 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 9 | 21B1-96580 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 9 | 21B1-96581 | CABLE(ZAPI) | 1 |
30B-9
|
|
| 9 | 21B1-96580 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 9 | 21B1-96581 | CABLE(ZAPI) | 1 |
32B-9
|
|
| 9 | 21B1-96580 | CABLE(ZAPI) | 1 |
35B-9
|
|
| 9 | 21B1-96581 | CABLE(ZAPI) | 1 |
35B-9
|
