HYD GEAR PUMP (WITH PRIORITY) погрузчика электрического Hyundai 22/25/30/32/35B-9
HYD GEAR PUMP (WITH PRIORITY) погрузчика электрического Hyundai 22/25/30/32/35B-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3090
Наименование:HYD GEAR PUMP (WITH PRIORITY)
Версия:

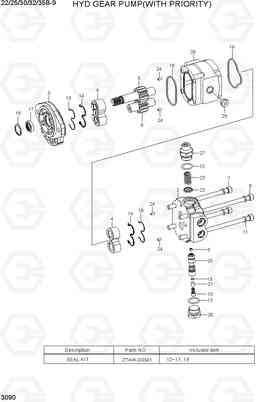

HYD GEAR PUMP (WITH PRIORITY) 22/25/30/32/35B-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 31B1-01000 | гидрокси зубчатый насос ж / PRIO | 1 | ||
| K | 62029057 | удален ... | 8 | ||
| K12 | ZTAW-00065 | Сальник | 2 | ||
| K13 | ZTAW-00066 | Сальник | 1 | ||
| N | @ | NOT SUPPLIED PARTS | AR |
SEE ILLUST
|
|
| N1 | @ | HOUSING | 1 | ||
| N10 | @ | THROTTLING GRUB SCREW | 1 | ||
| N11 | @ | WASHER | 8 | ||
| N18 | @ | RING | 1 | ||
| N2 | @ | REAR END COVER | 1 | ||
| N20 | @ | SPOOL | 1 | ||
| N21 | @ | NET TUBULAR FILTER | 1 | ||
| N22 | @ | PUSHING SPRING | 1 | ||
| N23 | @ | MAIN PILOT SPRING | 1 | ||
| N24 | @ | DOWEL PIN | 4 | ||
| N25 | @ | SPRING PLUG | 1 | ||
| N26 | @ | PLUG | 1 | ||
| N27 | @ | SPRING PLUG | 1 | ||
| N3 | @ | FRONT COVER | 1 | ||
| N4 | @ | THRUST PLATE | 2 | ||
| N5 | @ | DRIVE SHAFT | 1 | ||
| N6 | @ | DRIVEN SHAFT | 1 | ||
| N7 | @ | SCREW | 2 | ||
| N8 | @ | SCREW | 2 | ||
| N9 | @ | GRUB SCREW | 1 | ||
| NK14 | ZTAW-00223 | Сальник | 2 | ||
| NK15 | ZTAW-00122 | Сальник | 1 | ||
| NK16 | ZTAW-00019 | Сальник | 1 | ||
| NK17 | ZTAW-00105 | Уплотнение вала | 1 | ||
| NK19 | ZTAW-00224 | ANTIEXTRUSION | 2 |
