Каталог запчастей
-
Hyundai
-
22/25/30/32/35B-9
- OVERHEAD GUARD SUB ASSY

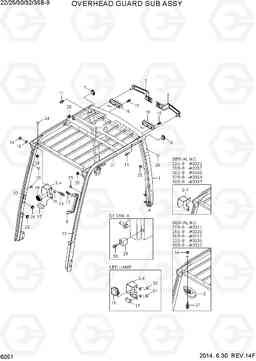

OVERHEAD GUARD SUB ASSY погрузчика электрического Hyundai 22/25/30/32/35B-9
OVERHEAD GUARD SUB ASSY погрузчика электрического Hyundai 22/25/30/32/35B-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6051
Наименование:OVERHEAD GUARD SUB ASSY
Версия:2014. 6.30 REV.14F
OVERHEAD GUARD SUB ASSY 22/25/30/32/35B-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 71B1-32003 | HEAD GUARD SUB ASSY | 1 |
22B-9
|
|
| * | 71B1-32004 | HEAD GUARD SUB ASSY | 1 |
22B-9
|
|
| * | 71B1-32005 | HEAD GUARD SUB ASSY | 1 |
22B-9
|
|
| * | 71B1-32003 | HEAD GUARD SUB ASSY | 1 |
25B-9
|
|
| * | 71B1-32004 | HEAD GUARD SUB ASSY | 1 |
25B-9
|
|
| * | 71B1-32005 | HEAD GUARD SUB ASSY | 1 |
25B-9
|
|
| * | 71B1-31003 | HEADGUARD SUB ASSY | 1 |
30B-9
|
|
| * | 71B1-31004 | HEADGUARD SUB ASSY | 1 |
30B-9
|
|
| * | 71B1-31005 | HEADGUARD SUB ASSY | 1 |
30B-9
|
|
| * | 71B1-31003 | HEADGUARD SUB ASSY | 1 |
32B-9
|
|
| * | 71B1-31004 | HEADGUARD SUB ASSY | 1 |
32B-9
|
|
| * | 71B1-31005 | HEADGUARD SUB ASSY | 1 |
32B-9
|
|
| * | 71B1-31003 | HEADGUARD SUB ASSY | 1 |
35B-9
|
|
| * | 71B1-31004 | HEADGUARD SUB ASSY | 1 |
35B-9
|
|
| * | 71B1-31005 | HEADGUARD SUB ASSY | 1 |
35B-9
|
|
| * | 71B1-32500 | HEAD GUARD SUB ASSY | 1 |
22B-9
|
|
| * | 71B1-32501 | HEAD GUARD SUB ASSY | 1 |
22B-9
|
|
| * | 71B1-32502 | HEAD GUARD SUB ASSY | 1 |
22B-9,KIA
|
|
| * | 71B1-32500 | HEAD GUARD SUB ASSY | 1 |
25B-9
|
|
| * | 71B1-32501 | HEAD GUARD SUB ASSY | 1 |
25B-9
|
|
| * | 71B1-32502 | HEAD GUARD SUB ASSY | 1 |
25B-9,KIA
|
|
| * | 71B1-31500 | HEADGUARD SUB ASSY | 1 |
30B-9
|
|
| * | 71B1-31501 | HEADGUARD SUB ASSY | 1 |
30B-9
|
|
| * | 71B1-31502 | HEADGUARD SUB ASSY | 1 |
30B-9,KIA
|
|
| * | 71B1-31500 | HEADGUARD SUB ASSY | 1 |
32B-9
|
|
| * | 71B1-31501 | HEADGUARD SUB ASSY | 1 |
32B-9
|
|
| * | 71B1-31502 | HEADGUARD SUB ASSY | 1 |
32B-9,,KIA
|
|
| * | 71B1-31500 | HEADGUARD SUB ASSY | 1 |
35B-9
|
|
| * | 71B1-31501 | HEADGUARD SUB ASSY | 1 |
35B-9
|
|
| * | 71B1-31502 | HEADGUARD SUB ASSY | 1 |
35B-9,KIA
|
|
| * | 72B1-32000 | HEAD GUARD SUB ASSY(LED) | 1 |
22B-9,STD
|
|
| * | 72B1-32000 | HEAD GUARD SUB ASSY(LED) | 1 |
25B-9,STD
|
|
| * | 72B1-31000 | HEAD GUARD SUB ASSY(LED) | 1 |
30B-9,STD
|
|
| * | 72B1-31000 | HEAD GUARD SUB ASSY(LED) | 1 |
32B-9,STD
|
|
| * | 72B1-31000 | HEAD GUARD SUB ASSY(LED) | 1 |
35B-9,STD
|
|
| * | 72B1-32500 | HEAD GUARD SUB ASSY(LED) | 1 |
22B-9,KIA
|
|
| * | 72B1-32500 | HEAD GUARD SUB ASSY(LED) | 1 |
25B-9,KIA
|
|
| * | 72B1-31500 | HEAD GUARD SUB ASSY(LED) | 1 |
30B-9,KIA
|
|
| * | 72B1-31500 | HEAD GUARD SUB ASSY(LED) | 1 |
32B-9,KIA
|
|
| * | 72B1-31500 | HEAD GUARD SUB ASSY(LED) | 1 |
35B-9,KIA
|
|
| 1 | 71B1-31014 | HEAD GUARD WA | 1 |
22B-9
|
|
| 1 | 71B1-31015 | HEAD GUARD WA | 1 |
22B-9
|
|
| 1 | 71B1-31016 | HEAD GUARD WA | 1 |
22B-9
|
|
| 1 | 71B1-31014 | HEAD GUARD WA | 1 |
25B-9
|
|
| 1 | 71B1-31015 | HEAD GUARD WA | 1 |
25B-9
|
|
| 1 | 71B1-31016 | HEAD GUARD WA | 1 |
25B-9
|
|
| 1 | 71B1-30016 | HEAD GUARD WA | 1 |
30B-9
|
|
| 1 | 71B1-30017 | HEAD GUARD WA | 1 |
30B-9
|
|
| 1 | 71B1-30018 | HEAD GUARD WA | 1 |
30B-9
|
|
| 1 | 71B1-30016 | HEAD GUARD WA | 1 |
32B-9
|
|
| 1 | 71B1-30017 | HEAD GUARD WA | 1 |
32B-9
|
|
| 1 | 71B1-30018 | HEAD GUARD WA | 1 |
32B-9
|
|
| 1 | 71B1-30016 | HEAD GUARD WA | 1 |
35B-9
|
|
| 1 | 71B1-30017 | HEAD GUARD WA | 1 |
35B-9
|
|
| 1 | 71B1-30018 | HEAD GUARD WA | 1 |
35B-9
|
|
| 1 | 71B1-32510 | HEAD GUARD WA | 1 |
22B-9
|
|
| 1 | 71B1-32511 | HEAD GUARD WA | 1 |
22B-9,KIA
|
|
| 1 | 71B1-32512 | HEAD GUARD WA | 1 |
22B-9,KIA
|
|
| 1 | 71B1-32510 | HEAD GUARD WA | 1 |
25B-9
|
|
| 1 | 71B1-32511 | HEAD GUARD WA | 1 |
25B-9,KIA
|
|
| 1 | 71B1-32512 | HEAD GUARD WA | 1 |
25B-9,KIA
|
|
| 1 | 71B1-31510 | HEAD GUARD WA | 1 |
30B-9
|
|
| 1 | 71B1-31511 | HEAD GUARD WA | 1 |
30B-9,KIA
|
|
| 1 | 71B1-31512 | HEAD GUARD WA | 1 |
30B-9,KIA
|
|
| 1 | 71B1-31510 | HEAD GUARD WA | 1 |
32B-9
|
|
| 1 | 71B1-31511 | HEAD GUARD WA | 1 |
32B-9,KIA
|
|
| 1 | 71B1-31512 | HEAD GUARD WA | 1 |
32B-9,KIA
|
|
| 1 | 71B1-31510 | HEAD GUARD WA | 1 |
35B-9
|
|
| 1 | 71B1-31511 | HEAD GUARD WA | 1 |
35B-9,KIA
|
|
| 1 | 71B1-31512 | HEAD GUARD WA | 1 |
35B-9,KIA
|
|
| 11 | S132-062076 | SCREW-W/WASHER | 4 | ||
| 12 | S132-082026 | SCREW-W/WASHER | 2 | ||
| 13 | S132-082526 | SCREW-W/WASHER | 4 | ||
| 14 | S275-08000B | Гайка самоблокирующаяся | 4 | ||
| 15 | S403-08200B | Плоская шайба | 4 | ||
| 16 | 21FY-97010 | комбинированный фонарь | 2 | ||
| 17 | 21FH-77030 | лампа сигнала поворота | 2 | ||
| 17 | 21HN-42811 | FRONT TURN LAMP(LED) | 2 |
22B-9
|
|
| 17 | 21HN-42811 | FRONT TURN LAMP(LED) | 2 |
25B-9
|
|
| 17 | 21HN-42811 | FRONT TURN LAMP(LED) | 2 |
30B-9
|
|
| 17 | 21HN-42811 | FRONT TURN LAMP(LED) | 2 |
32B-9
|
|
| 17 | 21HN-42811 | FRONT TURN LAMP(LED) | 2 |
35B-9
|
|
| 18 | F12840011 | LAMP SUB ASSY-WORK | 2 | ||
| 18 | 21WD-31160 | Фара светодиодная | 2 |
22B-9
|
|
| 18 | 21WD-31160 | Фара светодиодная | 2 |
25B-9
|
|
| 18 | 21WD-31160 | Фара светодиодная | 2 |
30B-9
|
|
| 18 | 21WD-31160 | Фара светодиодная | 2 |
32B-9
|
|
| 18 | 21WD-31160 | Фара светодиодная | 2 |
35B-9
|
|
| 18-1 | 21HA-12010 | лампа (12v 55w, h3) | 1 |
NOT SHOWN
|
|
| 19 | S131-051546 | SCREW-W/WASHER | 4 | ||
| 2 | 71HU-30202 | COVER-COMB.LAMP | 2 | ||
| 20 | S681-190400 | Уплотнительная втулка | 2 | ||
| 21 | 21HU-95042 | Жгут задних | 1 | ||
| 21 | 21B1-95200 | HARNESS-REAR | 1 |
22B-9,KIA
|
|
| 21 | 21B1-95200 | HARNESS-REAR | 1 |
25B-9,KIA
|
|
| 21 | 21B1-95200 | HARNESS-REAR | 1 |
30B-9,KIA
|
|
| 21 | 21B1-95200 | HARNESS-REAR | 1 |
32B-9,KIA
|
|
| 21 | 21B1-95200 | HARNESS-REAR | 1 |
35B-9,KIA
|
|
| 22 | 21HU-95130 | Жгут передний | 2 | ||
| 22 | 21HU-95270 | HARNESS-FRONT | 1 |
22B-9
|
|
| 22 | 21HU-95270 | HARNESS-FRONT | 1 |
25B-9
|
|
| 22 | 21HU-95270 | HARNESS-FRONT | 1 |
30B-9
|
|
| 22 | 21HU-95270 | HARNESS-FRONT | 1 |
32B-9
|
|
| 22 | 21HU-95270 | HARNESS-FRONT | 1 |
35B-9
|
|
| 23 | S681-290400 | Уплотнительная втулка | 3 | ||
| 24 | 71B1-31200 | CAP | 30 |
22B-9
|
|
| 24 | 71B1-31200 | CAP | 34 |
22B-9
|
|
| 24 | 71B1-31200 | CAP | 30 |
22B-9
|
|
| 24 | 71B1-31200 | CAP | 30 |
25B-9
|
|
| 24 | 71B1-31200 | CAP | 34 |
25B-9
|
|
| 24 | 71B1-31200 | CAP | 30 |
25B-9
|
|
| 24 | 71B1-31200 | CAP | 30 |
30B-9
|
|
| 24 | 71B1-31200 | CAP | 34 |
30B-9
|
|
| 24 | 71B1-31200 | CAP | 30 |
30B-9
|
|
| 24 | 71B1-31200 | CAP | 30 |
32B-9
|
|
| 24 | 71B1-31200 | CAP | 34 |
32B-9
|
|
| 24 | 71B1-31200 | CAP | 30 |
32B-9
|
|
| 24 | 71B1-31200 | CAP | 30 |
35B-9
|
|
| 24 | 71B1-31200 | CAP | 34 |
35B-9
|
|
| 24 | 71B1-31200 | CAP | 30 |
35B-9
|
|
| 25 | 71B1-31210 | CAP | 24 |
22B-9
|
|
| 25 | 71B1-31210 | CAP | 23 |
22B-9
|
|
| 25 | 71B1-31210 | CAP | 26 |
22B-9
|
|
| 25 | 71B1-31210 | CAP | 35 |
22B-9
|
|
| 25 | 71B1-31210 | CAP | 36 |
22B-9
|
|
| 25 | 71B1-31210 | CAP | 24 |
25B-9
|
|
| 25 | 71B1-31210 | CAP | 23 |
25B-9
|
|
| 25 | 71B1-31210 | CAP | 26 |
25B-9
|
|
| 25 | 71B1-31210 | CAP | 35 |
25B-9
|
|
| 25 | 71B1-31210 | CAP | 36 |
25B-9
|
|
| 25 | 71B1-31210 | CAP | 24 |
30B-9
|
|
| 25 | 71B1-31210 | CAP | 23 |
30B-9
|
|
| 25 | 71B1-31210 | CAP | 26 |
30B-9
|
|
| 25 | 71B1-31210 | CAP | 35 |
30B-9
|
|
| 25 | 71B1-31210 | CAP | 36 |
30B-9
|
|
| 25 | 71B1-31210 | CAP | 24 |
32B-9
|
|
| 25 | 71B1-31210 | CAP | 23 |
32B-9
|
|
| 25 | 71B1-31210 | CAP | 26 |
32B-9
|
|
| 25 | 71B1-31210 | CAP | 35 |
32B-9
|
|
| 25 | 71B1-31210 | CAP | 36 |
32B-9
|
|
| 25 | 71B1-31210 | CAP | 24 |
35B-9
|
|
| 25 | 71B1-31210 | CAP | 23 |
35B-9
|
|
| 25 | 71B1-31210 | CAP | 26 |
35B-9
|
|
| 25 | 71B1-31210 | CAP | 35 |
35B-9
|
|
| 25 | 71B1-31210 | CAP | 36 |
35B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 2 |
22B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 3 |
22B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 2 |
25B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 3 |
25B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 2 |
30B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 3 |
30B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 2 |
32B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 3 |
32B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 2 |
35B-9
|
|
| 26 | S661-300400 | Уплотнительная втулка | 3 |
35B-9
|
|
| 27 | S035-085026 | Болт | 2 |
22B-9
|
|
| 27 | S035-085026 | Болт | 2 |
25B-9
|
|
| 27 | S035-085026 | Болт | 2 |
30B-9
|
|
| 27 | S035-085026 | Болт | 2 |
32B-9
|
|
| 27 | S035-085026 | Болт | 2 |
35B-9
|
|
| 28 | S880-132040 | Уплотнительная втулка | 1 | ||
| 29 | 71FY-33370 | PLUG-OHG | 2 |
22B-9
|
|
| 29 | 71FY-33370 | PLUG-OHG | 2 |
25B-9
|
|
| 29 | 71FY-33370 | PLUG-OHG | 2 |
30B-9
|
|
| 29 | 71FY-33370 | PLUG-OHG | 2 |
32B-9
|
|
| 29 | 71FY-33370 | PLUG-OHG | 2 |
35B-9
|
|
| 3 | 71HT-30212 | LH BRACKET-LAMP | 1 |
22B-9
|
|
| 3 | 71HT-30213 | LH BRACKET-LAMP | 1 |
22B-9
|
|
| 3 | 71HT-30212 | LH BRACKET-LAMP | 1 |
25B-9
|
|
| 3 | 71HT-30213 | LH BRACKET-LAMP | 1 |
25B-9
|
|
| 3 | 71HT-30212 | LH BRACKET-LAMP | 1 |
30B-9
|
|
| 3 | 71HT-30213 | LH BRACKET-LAMP | 1 |
30B-9
|
|
| 3 | 71HT-30212 | LH BRACKET-LAMP | 1 |
32B-9
|
|
| 3 | 71HT-30213 | LH BRACKET-LAMP | 1 |
32B-9
|
|
| 3 | 71HT-30212 | LH BRACKET-LAMP | 1 |
35B-9
|
|
| 3 | 71HT-30213 | LH BRACKET-LAMP | 1 |
35B-9
|
|
| 3 | 71HT-30360 | LH BRACKET-LED LAMP | 1 |
22B-9
|
|
| 3 | 71HT-30360 | LH BRACKET-LED LAMP | 1 |
25B-9
|
|
| 3 | 71HT-30360 | LH BRACKET-LED LAMP | 1 |
30B-9
|
|
| 3 | 71HT-30360 | LH BRACKET-LED LAMP | 1 |
32B-9
|
|
| 3 | 71HT-30360 | LH BRACKET-LED LAMP | 1 |
35B-9
|
|
| 30 | S131-042556 | SCREW W/WASHER CR RH | 2 |
22B-9
|
|
| 30 | S131-042556 | SCREW W/WASHER CR RH | 2 |
25B-9
|
|
| 30 | S131-042556 | SCREW W/WASHER CR RH | 2 |
30B-9
|
|
| 30 | S131-042556 | SCREW W/WASHER CR RH | 2 |
32B-9
|
|
| 30 | S131-042556 | SCREW W/WASHER CR RH | 2 |
35B-9
|
|
| 31 | 21HU-95280 | HARNESS-TURN LAMP,LED | 2 |
22B-9
|
|
| 31 | 21HU-95280 | HARNESS-TURN LAMP,LED | 2 |
25B-9
|
|
| 31 | 21HU-95280 | HARNESS-TURN LAMP,LED | 2 |
30B-9
|
|
| 31 | 21HU-95280 | HARNESS-TURN LAMP,LED | 2 |
32B-9
|
|
| 31 | 21HU-95280 | HARNESS-TURN LAMP,LED | 2 |
35B-9
|
|
| 32 | 21HU-95120 | Жгут ключ выключатель | 2 |
22B-9
|
|
| 32 | 21HU-95120 | Жгут ключ выключатель | 2 |
25B-9
|
|
| 32 | 21HU-95120 | Жгут ключ выключатель | 2 |
30B-9
|
|
| 32 | 21HU-95120 | Жгут ключ выключатель | 2 |
32B-9
|
|
| 32 | 21HU-95120 | Жгут ключ выключатель | 2 |
35B-9
|
|
| 4 | 71HT-30222 | RH BRACKET-LAMP | 1 |
22B-9
|
|
| 4 | 71HT-30223 | RH BRACKET-LAMP | 1 |
22B-9
|
|
| 4 | 71HT-30222 | RH BRACKET-LAMP | 1 |
25B-9
|
|
| 4 | 71HT-30223 | RH BRACKET-LAMP | 1 |
25B-9
|
|
| 4 | 71HT-30222 | RH BRACKET-LAMP | 1 |
30B-9
|
|
| 4 | 71HT-30223 | RH BRACKET-LAMP | 1 |
30B-9
|
|
| 4 | 71HT-30222 | RH BRACKET-LAMP | 1 |
32B-9
|
|
| 4 | 71HT-30223 | RH BRACKET-LAMP | 1 |
32B-9
|
|
| 4 | 71HT-30222 | RH BRACKET-LAMP | 1 |
35B-9
|
|
| 4 | 71HT-30223 | RH BRACKET-LAMP | 1 |
35B-9
|
|
| 4 | 71HT-30370 | RH BRACKET-LED LAMP | 1 |
22B-9
|
|
| 4 | 71HT-30370 | RH BRACKET-LED LAMP | 1 |
25B-9
|
|
| 4 | 71HT-30370 | RH BRACKET-LED LAMP | 1 |
30B-9
|
|
| 4 | 71HT-30370 | RH BRACKET-LED LAMP | 1 |
32B-9
|
|
| 4 | 71HT-30370 | RH BRACKET-LED LAMP | 1 |
35B-9
|
|
| 5 | 71B1-30510 | MIRROR-PANORAMIC | 2 |
22B-9
|
|
| 5 | 71B1-30510 | MIRROR-PANORAMIC | 2 |
25B-9
|
|
| 5 | 71B1-30510 | MIRROR-PANORAMIC | 2 |
30B-9
|
|
| 5 | 71B1-30510 | MIRROR-PANORAMIC | 2 |
32B-9
|
|
| 5 | 71B1-30510 | MIRROR-PANORAMIC | 2 |
35B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 2 |
22B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 3 |
22B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 2 |
25B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 3 |
25B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 2 |
30B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 3 |
30B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 2 |
32B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 3 |
32B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 2 |
35B-9
|
|
| 6 | 79FV-30260 | Крышка резиновая | 2 |
35B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 2 |
22B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 3 |
22B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 2 |
25B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 3 |
25B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 2 |
30B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 2 |
30B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 3 |
32B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 2 |
32B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 2 |
35B-9
|
|
| 7 | 79FV-30250 | Крышка резиновая | 3 |
35B-9
|
|
| 8 | 71FH-30050 | GRIP | 1 |
