CABIN SUB 2 погрузчика электрического Hyundai 22/25/30/32/35B-9
CABIN SUB 2 погрузчика электрического Hyundai 22/25/30/32/35B-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6080
Наименование:CABIN SUB 2
Версия:2014. 6.30 REV.14F

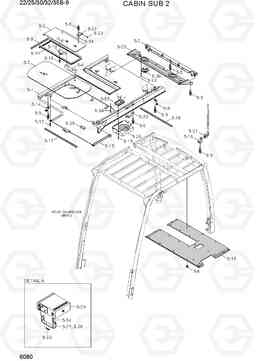

CABIN SUB 2 22/25/30/32/35B-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 5 | 71B1-53430 | ROOF ASSY | 1 |
22/25B-9,NORMAL
|
|
| 5 | 71B1-53410 | ROOF ASSY | 1 |
30~35B-9,NORMAL
|
|
| 5 | 71B1-53420 | ROOF ASSY | 1 |
22/25,ROOM LAMP
|
|
| 5 | 71B1-53400 | ROOF ASSY | 1 |
30~35,ROOM LAMP
|
|
| 5 | 71B1-51061 | ROOF ASSY | 1 |
22/25B-9,AUDIO
|
|
| 5 | 71B1-51051 | ROOF ASSY | 1 |
30~35B-9,AUDIO
|
|
| 5-1 | 71B1-52991 | ROOF WA | 1 |
22/25B-9
|
|
| 5-1 | 71B1-52561 | ROOF WA | 1 |
30~35B-9
|
|
| 5-10 | 71B1-52760 | HOOK MODULE | 1 | ||
| 5-11 | S771-016700 | Уплотнитель | 1 | ||
| 5-12 | S161-040156 | Винт с крестообразным шлицем | 4 | ||
| 5-13 | 71B1-52490 | SUNVISOR | 1 | ||
| 5-14 | 71B1-52850 | Кронштейн | 2 | ||
| 5-15 | S002-06015B | SCREW-TRUS HEAD | 8 | ||
| 5-16 | 71B1-52140 | Кронштейн | 1 |
AUDIO
|
|
| 5-17 | S772-037900 | Сальник | 1 |
22/25B-9
|
|
| 5-17 | S772-042100 | Сальник | 1 |
30~35B-9
|
|
| 5-18 | S778-024700 | Сальник | 1 | ||
| 5-19 | 71B1-53540 | HEADLINING-MID | 1 |
22/25B-9,NORMAL
|
|
| 5-19 | 71B1-53500 | HEADLINING-MID | 1 |
30~35B-9,NORMAL
|
|
| 5-19 | 71B1-53530 | HEADLINING-MID | 1 |
22/25,ROOM LAMP
|
|
| 5-19 | 71B1-53520 | HEADLINING-MID | 1 |
30~35,ROOM LAMP
|
|
| 5-19 | 71B1-52971 | HEADLINING-MID | 1 |
22/25B-9,AUDIO
|
|
| 5-19 | 71B1-52501 | HEADLINING-MID | 1 |
30~35B-9,AUDIO
|
|
| 5-2 | 71B1-52821 | BRACKET WA-REAR | 1 | ||
| 5-20 | 71B1-53510 | HEADLINING-REAR | 1 |
NORMAL,R/ LAMP
|
|
| 5-20 | 71B1-52510 | HEADLINING-REAR | 1 |
AUDIO
|
|
| 5-21 | 71B1-52400 | HINGE PLATE | 2 | ||
| 5-22 | 71B1-52280 | Кронштейн | 1 | ||
| 5-23 | 71B1-52410 | Палец | 2 | ||
| 5-24 | 71B1-52130 | STOP RING | 2 | ||
| 5-25 | 71B1-51450 | Пластина | 1 | ||
| 5-26 | 71B1-52480 | AUDIO BOX | 1 |
AUDIO
|
|
| 5-27 | 71B1-51920 | RADIO BRKT LH | 1 |
AUDIO
|
|
| 5-28 | 71B1-51930 | RADIO BRKT RH | 1 |
AUDIO
|
|
| 5-29 | 21M9-18000 | радио / USB плеер | 1 |
AUDIO
|
|
| 5-3 | 71B1-52591 | COVER WA | 1 | ||
| 5-30 | 21LB-20401 | Спикер сборе | 2 |
AUDIO
|
|
| 5-31 | 21N6-10410 | ANTENA | 1 |
AUDIO
|
|
| 5-32 | 21M9-36140 | лампа в салоне ass`y (12) | 1 |
AUDIO
|
|
| 5-33 | S131-052056 | SCREW-W/WASHER | 12 | ||
| 5-34 | S132-062056 | SCREW-W/WASHER | 6 | ||
| 5-4 | 71B1-51960 | HANDLE | 1 | ||
| 5-5 | S035-082026 | Болт | 17 | ||
| 5-6 | 71Q6-04980 | FASTENER | 22 | ||
| 5-7 | 71B1-52260 | GLASS-TOP | 1 | ||
| 5-8 | 71B1-52550 | Корпус клапана | 2 | ||
| 5-9 | 71B1-52520 | Сальник | 1 |
