LIFT BLOCK ASSY погрузчика дизельного Hyundai 22/25/30/33D-9S
LIFT BLOCK ASSY погрузчика дизельного Hyundai 22/25/30/33D-9S со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3350
Наименование:LIFT BLOCK ASSY
Версия:

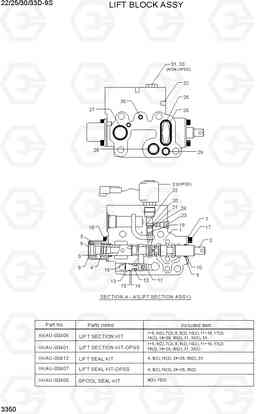

LIFT BLOCK ASSY 22/25/30/33D-9S
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | @ | BLOCK-LIFT | 1 | ||
| K | XKAU-00406 | LIFT SECTION KIT | 1 |
SEE ILLUST
|
|
| K | XKAU-00401 | LIFT SECTION KIT-OPSS | 1 |
SEE ILLUST
|
|
| K | XKAU-00400 | SPOOL SEAL KIT | 1 |
SEE ILLUST
|
|
| K | XKAU-00412 | LIFT SEAL KIT | 1 |
SEE ILLUST
|
|
| K | XKAU-00407 | LIFT SEAL KIT-OPSS | 1 |
SEE ILLUST
|
|
| K1 | @ | BLOCK-LIFT | 1 | ||
| K10 | @ | RING-BACK UP | 2 | ||
| K11 | @ | INLET-POPPET | 1 | ||
| K12 | @ | SPRING-CHECK | 1 | ||
| K13 | @ | SEAT-CONTROL | 1 | ||
| K14 | @ | O-RING | 1 | ||
| K15 | @ | RING-BACK UP | 1 | ||
| K16 | @ | RING-STOP | 1 | ||
| K2 | @ | SPOOL-LIFT | 1 | ||
| K24 | @ | PLUG | 1 | ||
| K25 | @ | O-RING | 1 | ||
| K26 | @ | CAGE | 1 | ||
| K27 | @ | O-RING | 1 | ||
| K28 | @ | O-RING | 1 | ||
| K29 | @ | O-RING | 1 | ||
| K3 | @ | PLUG-LOCK | 1 | ||
| K30 | @ | O-RING | 4 | ||
| K31 | @ | PLUG | 2 |
NON-OPSS
|
|
| K31 | XKAU-00258 | Встроенный клапан в сборе | 1 |
OPSS,SEE 3310
|
|
| K32 | @ | PLUG | 3 | ||
| K33 | XKAU-00026 | Кольцо уплотнительное (О-кольцо) | 2 |
NON-OPSS
|
|
| K4 | @ | O-RING | 1 | ||
| K5 | @ | SPRING-RETURN | 1 | ||
| K6 | @ | SEAT-SPRING | 2 | ||
| K9 | @ | O-RING | 2 | ||
| N17 | XKAU-00251 | Болт | 2 | ||
| N18 | XKAU-00252 | Болт | 2 | ||
| N19 | XKAU-00253 | проверка тарелка | 1 | ||
| N20 | XKAU-00254 | Шайба | 1 | ||
| N21 | XKAU-00255 | Пружина | 1 | ||
| N22 | XKAU-00256 | Кольцо стопорное | 1 | ||
| N23 | XKAU-00074 | заглушка | 1 | ||
| N7 | XKAU-00249 | Пластина | 2 | ||
| N8 | XKAU-00250 | CAP | 1 |
