Каталог запчастей
-
Hyundai
-
22/25/30/33D-9S

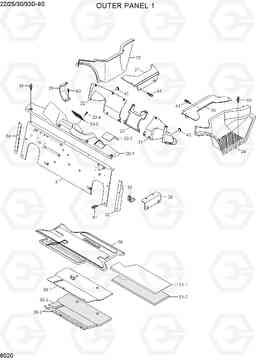

- OUTER PANEL 1
OUTER PANEL 1 погрузчика дизельного Hyundai 22/25/30/33D-9S
OUTER PANEL 1 погрузчика дизельного Hyundai 22/25/30/33D-9S со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:6020
Наименование:OUTER PANEL 1
Версия:
OUTER PANEL 1 22/25/30/33D-9S
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 20 | 77HN-10803 | COVER-DASHBOARD | 1 | ||
| 20-1 | 77HN-10812 | COVER-DASHBOARD | 1 | ||
| 20-2 | 77HN-10831 | COVER-BRAKE OIL | 1 | ||
| 20-3 | 79FV-19231 | COVER-SWITCH | 1 | ||
| 20-4 | S141-050106 | Винт с потайной головкой | 2 | ||
| 21 | 77HN-10842 | COVER-LH,CYLINDER | 1 | ||
| 22 | 77HN-10852 | COVER-RH,CYLINDER | 1 | ||
| 23 | 77HN-10862 | COVER-FRONT,CENTER | 1 | ||
| 24 | 77HN-10901 | STEP-LH | 1 | ||
| 25 | 77HN-10951 | STEP-RH | 1 | ||
| 26 | 77HN-11002 | SUPPORT WA-LH | 1 | ||
| 27 | 77HN-11102 | SUPPORT WA-RH | 1 | ||
| 28 | 77HN-11201 | BRACKET-COVER | 2 | ||
| 29 | 77HN-11401 | SUPPORT-RH | 1 | ||
| 3 | 77HN-10703 | DASH BOARD WA | 1 | ||
| 30 | 73HN-11501 | FLOOR ASSY-FR | 1 | ||
| 30-1 | 73HN-11511 | FLOOR PLATE WA-FR | 1 | ||
| 30-2 | 73HN-11531 | SPONGE | 1 | ||
| 30-3 | 73HN-11710 | SPONGE | 1 | ||
| 31 | 77HN-11601 | FLOOR ASSY-RR | 1 | ||
| 31-1 | 77HN-11621 | Пластина | 1 | ||
| 31-2 | 77HN-11641 | SPONGE | 1 | ||
| 32 | 77HN-11800 | SUPPORT WA-FRONT | 2 | ||
| 33 | 77HN-19211 | COVER PLATE-LH | 1 | ||
| 34 | 77HN-19221 | COVER PLATE-RH | 1 | ||
| 36 | 73HN-11702 | MAT- FLOOR | 1 | ||
| 39 | S132-081626 | SCREW-W/WASHER CR RH | 28 | ||
| 40 | S035-082036 | Болт | 10 | ||
| 41 | S037-102526 | Болт | 14 | ||
| 42 | FHC0904100 | резиновая пребывание | 2 |
