FRAME HARNESS (WIA ENGINE) погрузчика дизельного Hyundai 22/25/30/33D-9T
FRAME HARNESS (WIA ENGINE) погрузчика дизельного Hyundai 22/25/30/33D-9T со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2065
Наименование:FRAME HARNESS (WIA ENGINE)
Версия:2014. 8.31 REV.14H

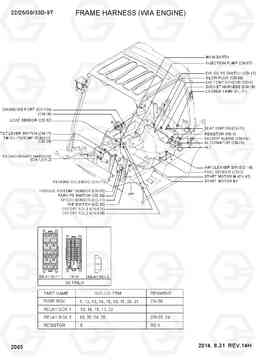

FRAME HARNESS (WIA ENGINE) 22/25/30/33D-9T
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| * | 21HN-70101 | Электропроводка на раму | 1 |
22D-9T
|
|
| * | 21HN-70101 | Электропроводка на раму | 1 |
25D-9T
|
|
| * | 21HN-70101 | Электропроводка на раму | 1 |
30D-9T
|
|
| * | 21HN-70101 | Электропроводка на раму | 1 |
33D-9T
|
|
| 10 | 21HN-26170 | COVER-RELAY BOX | 1 | ||
| 10-1 | 21HN-55040 | TOP COVER | 1 |
NOT SHOWN
|
|
| 12 | 21HN-55010 | FUSE BOX MAIN ASSY | 1 | ||
| 12-1 | 21HN-55020 | MAIN BODY | 1 |
NOT SHOWN
|
|
| 12-2 | 21HN-55030 | LOWER COVER-FUSE BOX | 1 |
NOT SHOWN
|
|
| 13 | 21HN-55050 | FUSE PULLER(MINI) | 1 | ||
| 14 | 21HN-55060 | WIRE COVER | 2 | ||
| 15 | 21HN-55080 | RUBBER COVER | 1 | ||
| 16 | 21HN-55090 | RUBBER COVER | 1 | ||
| 17 | 21HN-55110 | MAIN ASSY-FUSE BOX | 1 | ||
| 17-1 | 21HN-55130 | LOWER COVER-FUSE BOX | 1 |
NOT SHOWN
|
|
| 17-2 | 21HN-55120 | MAIN BODY-FUSE BOX | 1 |
NOT SHOWN
|
|
| 18 | 21HN-55230 | MINI FUSE(UL)-5A | 20 | ||
| 19 | 21HN-55250 | MINI FUSE(UL)-10A | 3 | ||
| 20 | 21HN-55260 | MINI FUSE(UL)-15A | 3 | ||
| 21 | 21HN-55350 | SLOW BLOW FUSE-60A | 3 | ||
| 22 | 21HN-55510 | RELAY-MICRO(12V/5P) | 6 | ||
| 23 | 21HN-55520 | RELAY-POWER(12V/4P) | 2 | ||
| 24 | 21HN-64010 | BODY-RELAY BOX (POWER) | 1 | ||
| 25 | 21HN-64020 | COVER-RELAY BOX(POWER) | 1 | ||
| 8 | 21FT-10810 | RESISTOR | 1 | ||
| 9 | 21HN-26160 | Крышка блока предохранителей | 1 | ||
| 9-1 | 21HN-55040 | TOP COVER | 1 |
NOT SHOWN
|
