Каталог запчастей
-
Hyundai
-
22/25/30/33D-9T
- CARRIAGE & B/REST (VF-MAST, 3.0/3.3TON)
CARRIAGE & B/REST (VF-MAST, 3.0/3.3TON) погрузчика дизельного Hyundai 22/25/30/33D-9T
CARRIAGE & B/REST (VF-MAST, 3.0/3.3TON) погрузчика дизельного Hyundai 22/25/30/33D-9T со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:7141
Наименование:CARRIAGE & B/REST (VF-MAST, 3.0/3.3TON)
Версия:2014. 9.30 REV.14J

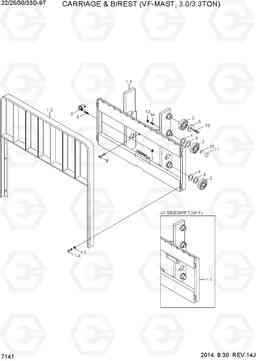

CARRIAGE & B/REST (VF-MAST, 3.0/3.3TON) 22/25/30/33D-9T
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 6QHN-35011 | CARR & B/REST SUB ASSY | 1 |
30,S,W/ B/R,JK
|
|
| 1 | 6RHN-25011 | CARR & B/REST SUB ASSY | 1 |
SINGLE,3.3TON
|
|
| 1 | 6QHN-35021 | CARR & B/REST SUB ASSY | 1 |
BOUBLE,3.0TON
|
|
| 1 | 6RHN-25021 | CARR & B/REST SUB ASSY | 1 |
BOUBLE,3.3TON
|
|
| 1 | 6QHN-35031 | CARR & B/REST SUB ASSY | 1 |
WIDE-S,3.0TON
|
|
| 1 | 6RHN-25031 | CARR & B/REST SUB ASSY | 1 |
WIDE-S,3.3TON
|
|
| 1 | 6RHN-25011 | CARR & B/REST SUB ASSY | 1 |
33,S,W/ B/R,JK
|
|
| 1 | 6QHN-35021 | CARR & B/REST SUB ASSY | 1 |
30,D,W/ B/R,JK
|
|
| 1 | 6RHN-25021 | CARR & B/REST SUB ASSY | 1 |
33,D,W/ B/R,JK
|
|
| 1 | 6QHN-35031 | CARR & B/REST SUB ASSY | 1 |
30,W,W/ B/R,JK
|
|
| 1 | 6RHN-25031 | CARR & B/REST SUB ASSY | 1 |
33,W,W/ B/R,JK
|
|
| 1 | 6QHN-35010 | CARR & B/REST SUB ASSY | 1 |
30,S,W/ B/R,STD
|
|
| 1 | 6RHN-25010 | CARR & B/REST SUB ASSY | 1 |
33,S,W/ B/R,STD
|
|
| 1 | 6QHN-35020 | CARR & B/REST SUB ASSY | 1 |
30,D,W/ B/R,STD
|
|
| 1 | 6RHN-25020 | CARR & B/REST SUB ASSY | 1 |
33,D,W/ B/R,STD
|
|
| 1 | 6QHN-35030 | CARR & B/REST SUB ASSY | 1 |
30,W,W/ B/R,STD
|
|
| 1 | 6RHN-25030 | CARR & B/REST SUB ASSY | 1 |
33,W,W/ B/R,STD
|
|
| 1 | 6QHN-31011 | CARRIAGE WA | 1 |
30,S,W/O B/R,JK
|
|
| 1 | 6RHN-21011 | CARRIAGE WA | 1 |
33,S,W/O B/R,JK
|
|
| 1 | 6QHN-31021 | CARRIAGE WA | 1 |
30,D,W/O B/R,JK
|
|
| 1 | 6RHN-21021 | CARRIAGE WA | 1 |
33,D,W/O B/R,JK
|
|
| 1 | 6QHN-31031 | CARRIAGE WA | 1 |
30,W,W/O B/R,JK
|
|
| 1 | 6RHN-21031 | CARRIAGE WA | 1 |
33,W,W/O B/R,JK
|
|
| 1 | 6QHN-31010 | CARRIAGE WA | 1 |
30,S,W/O BR,STD
|
|
| 1 | 6RHN-21010 | CARRIAGE WA | 1 |
33,S,W/O BR,STD
|
|
| 1 | 6QHN-31020 | CARRIAGE WA | 1 |
30,D,W/O BR,STD
|
|
| 1 | 6RHN-21020 | CARRIAGE WA | 1 |
33,D,W/O BR,STD
|
|
| 1 | 6QHN-31030 | CARRIAGE WA | 1 |
30,W,W/O BR,STD
|
|
| 1 | 6RHN-21030 | CARRIAGE WA | 1 |
33,W,W/O BR,STD
|
|
| 1-1 | 6RHN-21011 | CARRIAGE WA | 1 |
SINGLE,3.0TON
|
|
| 1-1 | 6QHN-31021 | CARRIAGE WA | 1 |
BOUBLE,3.0TON
|
|
| 1-1 | 6QHN-31011 | CARRIAGE WA | 1 |
30,SINGLE,JK
|
|
| 1-1 | 6RHN-21011 | CARRIAGE WA | 1 |
33,SINGLE,JK
|
|
| 1-1 | 6QHN-31021 | CARRIAGE WA | 1 |
30,DOUBLE,JK
|
|
| 1-1 | 6RHN-21021 | CARRIAGE WA | 1 |
BOUBLE,3.0TON
|
|
| 1-1 | 6RHN-21021 | CARRIAGE WA | 1 |
33,DOUBLE,JK
|
|
| 1-1 | 6QHN-31031 | CARRIAGE WA | 1 |
30,WIDE,JK
|
|
| 1-1 | 6QHN-31031 | CARRIAGE WA | 1 |
WIDE-S,3.0TON
|
|
| 1-1 | 6RHN-21031 | CARRIAGE WA | 1 |
33,WIDE,JK
|
|
| 1-1 | 6QHN-31010 | CARRIAGE WA | 1 |
30,SINGLE,STD
|
|
| 1-1 | 6RHN-21010 | CARRIAGE WA | 1 |
33,SINGLE,STD
|
|
| 1-1 | 6QHN-31020 | CARRIAGE WA | 1 |
30,DOUBLE,STD
|
|
| 1-1 | 6RHN-21020 | CARRIAGE WA | 1 |
33,DOUBLE,STD
|
|
| 1-1 | 6QHN-31030 | CARRIAGE WA | 1 |
30,WIDE,STD
|
|
| 1-1 | 6RHN-21030 | CARRIAGE WA | 1 |
33,WIDE,STD
|
|
| 1-1 | 6RHN-21031 | CARRIAGE WA | 1 |
WIDE-S,3.3TON
|
|
| 1-2 | 6AHN-24431 | спинка ва | 1 |
SINGLE
|
|
| 1-2 | 6AHN-24631 | спинка ва | 1 |
DOUBLE
|
|
| 1-2 | 6AHN-24731 | спинка ва | 1 |
WIDE
|
|
| 1-2 | 6AHN-24631 | спинка ва | 1 |
DOUBE
|
|
| 1-2 | 6AHN-24731 | спинка ва | 1 |
WIDE
|
|
| 1-3 | S441-12000B | Шайба | 4 | ||
| 1-4 | S017-120356 | Болт с шестигранной головкой (под шестигранник) | 4 | ||
| 10 | 61F7-28010 | Болт с плоской головкой | 2 | ||
| 11 | 65FS-21380 | Втулка | 2 | ||
| 12 | 65FS-21410 | Задняя панель | 2 | ||
| 13 | S205-12100B | Гайка | 2 | ||
| 14 | S111-120356 | Комплект винтов шестигранников (торцевой ключ) | 2 | ||
| 2 | 63HK-18101 | нагрузка R / BRG в сборе | 6 |
STD
|
|
| 2 | 63HK-18111 | нагрузка R / BRG в сборе | 6 |
UNDERSIZE
|
|
| 2 | 63HK-18121 | нагрузка R / BRG в сборе | 6 |
OVERSIZE
|
|
| 2 | 63HK-18141 | LOAD R/BEARING(118.1) | 6 |
LARGESIZE
|
|
| 3 | 6600188000 | Прокладка регулировочная | 4 | ||
| 4 | 6600187900 | прокладка (0.5T) | 4 | ||
| 5 | 61HM-28040 | регулируемая винт | 4 | ||
| 6 | 61F7-28100 | сторона ролик в сборе | 2 | ||
| 7 | S205-161006 | Гайка | 4 |
3.0TON
|
|
| 7 | S205-16100B | Гайка | 4 |
3.3TON
|
|
| 8 | S109-120306 | Болт с шестигранной головкой (под шестигранник) | 1 |
3.0TON
|
|
| 8 | S109-120206 | Болт с шестигранной головкой (под шестигранник) | 1 |
3.3TON
|
|
| 9 | 61F7-28021 | Шайба стопорная | 2 |
