FUSE BOX & RELAY BOARD погрузчика дизельного Hyundai 250D-9
FUSE BOX & RELAY BOARD погрузчика дизельного Hyundai 250D-9 со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:2065
Наименование:FUSE BOX & RELAY BOARD
Версия:

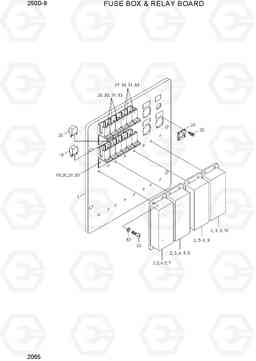

FUSE BOX & RELAY BOARD 250D-9
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| 1 | 22HV-33000 | PLATE-POWER BOARD | 1 | ||
| 10 | 22HV-33130 | DECAL-RELAY BOX | 1 | ||
| 11 | 21HN-55230 | MINI FUSE(UL)-5A | 1 |
NOT SHOWN
|
|
| 12 | 21HN-55250 | MINI FUSE(UL)-10A | 1 |
NOT SHOWN
|
|
| 13 | 21HN-55260 | MINI FUSE(UL)-15A | 1 |
NOT SHOWN
|
|
| 14 | 21HN-55270 | MINI FUSE(UL)-20A | 6 |
NOT SHOWN
|
|
| 15 | 21HN-55320 | SLOW BLOW FUSE-30A | 6 |
NOT SHOWN
|
|
| 16 | 21HN-55350 | SLOW BLOW FUSE-60A | 6 |
NOT SHOWN
|
|
| 17 | 21HN-55510 | RELAY-MICRO(12V/5P) | 16 |
NOT SHOWN
|
|
| 18 | 21HN-55050 | FUSE PULLER(MINI) | 2 | ||
| 2 | 21HN-55010 | FUSE BOX MAIN ASSY | 2 | ||
| 20 | 21HN-55110 | MAIN ASSY-FUSE BOX | 2 | ||
| 20-1 | 21HN-55130 | LOWER COVER-FUSE BOX | 1 |
NOT SHOWN
|
|
| 20-2 | 21HN-55120 | MAIN BODY-FUSE BOX | 1 |
NOT SHOWN
|
|
| 26 | 22HV-32140 | DECAL | 1 | ||
| 27 | 22HV-32150 | DECAL | 1 | ||
| 29 | S131-031046 | SCREW-W/WASHER | 12 | ||
| 3 | 21HN-55040 | TOP COVER | 4 | ||
| 30 | S131-051246 | SCREW-W/WASHER | 4 | ||
| 31 | S151-050146 | SCREW-TAPPING | 8 | ||
| 32 | S203-031006 | Гайка | 12 | ||
| 33 | S161-060156 | Винт с крестообразным шлицем | 16 | ||
| 4 | 21HN-55050 | FUSE PULLER(MINI) | 2 | ||
| 5 | 21HN-55060 | WIRE COVER | 4 | ||
| 6 | 21HN-55110 | MAIN ASSY-FUSE BOX | 2 | ||
| 7 | 22HV-33100 | DECAL-FUSE BOX | 1 | ||
| 8 | 22HV-33110 | DECAL-FUSE BOX | 1 | ||
| 82 | S241-060002 | Гайка сварки | 16 | ||
| 83 | 21LN-01200 | поддерживает мини-реле | 4 | ||
| 9 | 22HV-33120 | DECAL-RELAY BOX | 1 |
