TILT BLOCK ASSY (33G-7M) погрузчика на сжиженном газе Hyundai 25/30/33G-7M
TILT BLOCK ASSY (33G-7M) погрузчика на сжиженном газе Hyundai 25/30/33G-7M со списком деталей и комплектацией. Каждую деталь можно приобрести в наличии и под заказ с дотавкой по всей России
Код подсистемы:3A61
Наименование:TILT BLOCK ASSY (33G-7M)
Версия:2014. 4.30 REV.14D

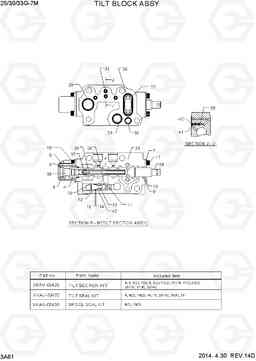

TILT BLOCK ASSY (33G-7M) 25/30/33G-7M
| Поз. | Код | Наименование | Кол | Прим. | |
|---|---|---|---|---|---|
| N | @ | NOT SUPPLIED PARTS | AR | ||
| * | @ | BLOCK-TILT | 1 |
33G-7M
|
|
| K | XKAU-00426 | TILT SECTION KIT | 1 |
SEE 3A31/41
|
|
| K10 | @ | RING-BACK UP | 2 | ||
| K11 | @ | INLET-POPPET | 1 | ||
| K12 | @ | SPRING-CHECK | 1 | ||
| K13 | @ | SEAT-CONTROL | 1 | ||
| K14 | @ | O-RING | 1 | ||
| K15 | @ | RING-BACK UP | 1 | ||
| K16 | @ | RING-STOP | 1 | ||
| K26 | @ | O-RING | 1 | ||
| K27 | @ | CAGE | 1 | ||
| K28 | @ | O-RING | 1 | ||
| K29 | @ | O-RING | 1 | ||
| K30 | @ | O-RING | 1 | ||
| K31 | @ | O-RING | 4 | ||
| K33 | @ | BLOCK-TILT | 1 | ||
| K34 | @ | SPOOL-TILT | 1 | ||
| K35 | @ | PISTON-TILT | 1 | ||
| K36 | @ | O-RING | 1 | ||
| K37 | @ | SPRING-LOCK | 1 | ||
| K38 | @ | PLUG-LOCK | 1 | ||
| K4 | @ | O-RING | 1 | ||
| K42 | @ | CONTROL NUT | 1 | ||
| K5 | @ | SPRING-RETURN | 1 | ||
| K6 | @ | SEAT-SPRING | 2 | ||
| K9 | @ | O-RING | 2 | ||
| N17 | XKAU-00251 | Болт | 2 | ||
| N18 | XKAU-00252 | Болт | 2 | ||
| N39 | XKAU-00259 | BALL | 1 | ||
| N40 | XKAU-00260 | весенние Ls, внутренний | 1 | ||
| N41 | XKAU-00261 | весенние Ls | 1 | ||
| N7 | XKAU-00249 | Пластина | 2 | ||
| N8 | XKAU-00250 | CAP | 1 |
